| Centers | 120" | 3,048 mm |
| Gap Swing | 53" | 1,346.2 mm |
| Spindle Bore | 9" | 228.6 mm |
| Travel-Cross | 26.4" | 670.56 mm |
| Motor | 30 hp | 22.4 kW |
| Max RPM | 428 RPM | 428 RPM |
| Bed W | 22" | 558.8 mm |
| Vertical Gap | 24" | 609.6 mm |
| Weight | 22000 | 22000 |
Swing over Bed: 35"
Swing over Cross: 24"
Swing over Gap: 53"
Gap Width from Headstock: 24"
Distance between Centers: 120"
Bed Width: 22"

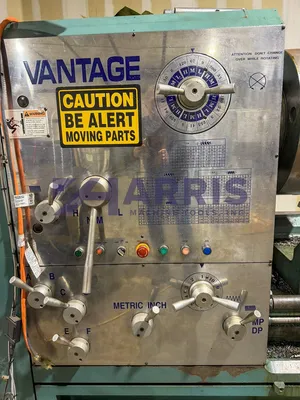

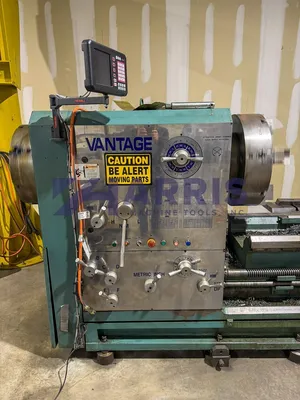

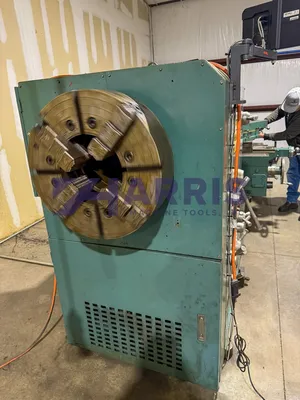

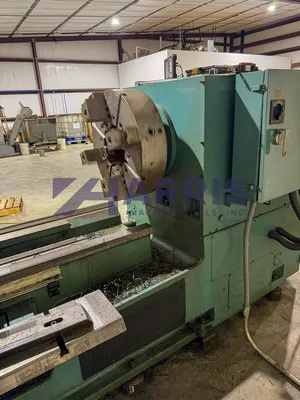

HEADSTOCK
Spindle Nose: A2-15
Spindle Bore: 9"

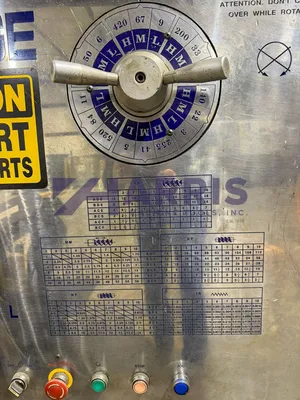

Spindle Step: 18 Steps
Spindle Speed: 4 - 428 RPM
Main Spindle Motor: 30HP

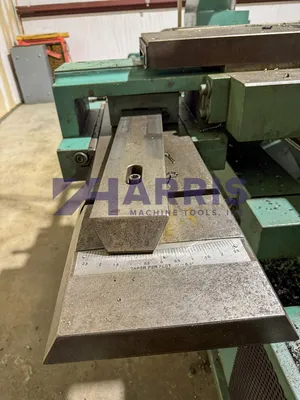

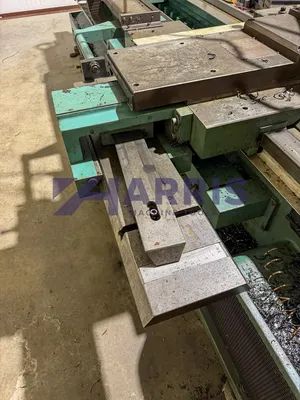

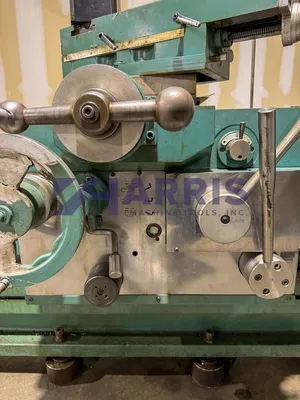

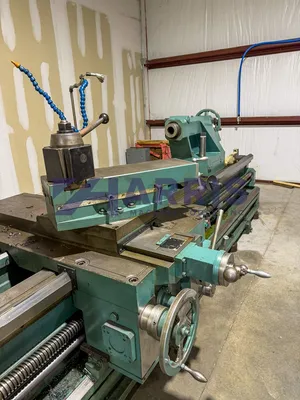

CARRIAGE
Cross Slide Travel: 26.4"
Compound Rest Travel: 15"
Pitch of Lead Screw: 2 (TPI)

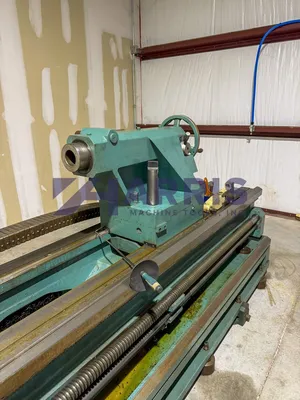

TAILSTOCK
Tailstock Quill Traverse: 11.75"
Tailstock Quill Inner Taper: MT #6
Tailstock Quill Diameter: 4.5"
