NEW ADH ULE-3015-12 kw Dbl Table Laser

2026 ADH Double Exchange Table Fiber Laser Model ULE03015-12kW

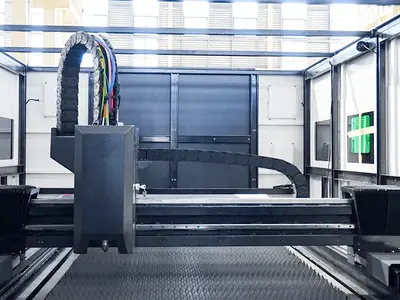

The ADH ULE-3015 12kW is an enclosed, exchange-table fiber laser cutting machine designed for high-power, high-efficiency production. Featuring a \(3000\times 1500\text{\ mm}\) cutting area, this model typically utilizes 12kW (or lower/higher options) to handle thick metals (up to 40mm carbon steel) with high precision.

Performance Highlights: Thick Metal Cutting: Capable of cutting up to 40mm carbon steel and 30mm stainless steel with a 12kW source.

Efficiency: Designed for 24/7 production, reducing material waste by \(8\%\text{--}12\%\) via intelligent nesting.

Precision: High-precision, with, for example, a \(\pm 0.02\text{\ mm}\) repeat accuracy.

Laser type: fiber laser

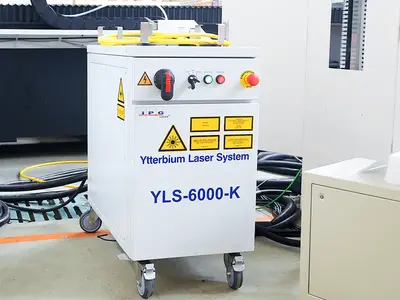

Laser source manufacturer: IPG
Laser source model: 12kW
Laser power: 12kw
Laser wavelength: 1,070 nm
Sheet thickness steel (max.): 20 mm
Sheet thickness stainless steel (max.): 10 mm
Sheet thickness aluminum (max.): 10 mm
Sheet thickness brass (max.): 5 mm
Sheet thickness copper (max.): 5 mm
Table length: 3,000 mm 9.84'
Table width: 1,500 mm 59.06"
Travel distance X-axis: 1,520 mm 59.84
Travel distance Y-axis: 3,050 mm 120.1"
Travel distance Z-axis: 220 mm 8.66"
Positioning accuracy: 0.03 mm 0.012"
Repeat accuracy: 0.02 mm 0.0012
Workpiece weight (max.): 1,500 kg 3,306.9 lbs
Power: 12kw kW
Input voltage: 380 V
Input current: 32 A
Input frequency: 50 Hz
Type of input current: three-phase
Type of cooling: water
Overall weight: 6,500 kg 14,330 lbs
Total length: 9,050 mm 356.3"
Total width: 2,915 mm 114.7"
Total height: 2,300 mm 90.55"

Equipment:
CE marking, centralized greasing system, cooling unit, documentation/manual, dust extraction, emergency stop, fume extraction, safety light barrier
Laser Power: Up to 12kW fiber laser source.
Cutting Area: \(3000\text{\ mm}\times 1500\text{\ mm}\) (Standard).
Table Design: Exchange table/shuttle table system for automatic loading/unloading.
Positioning Accuracy: \(\pm 0.03\text{\ mm}\) to \(\pm 0.05\text{\ mm}\).
Repeat Accuracy: \(\pm 0.02\text{\ mm}\).
Maximum Speed/Acceleration: High-speed, often featuring \(\sim 120\text{--}140\text{\ m/min}\) traversing speeds and \(1.2\text{--}1.5\text{G}\) acceleration.

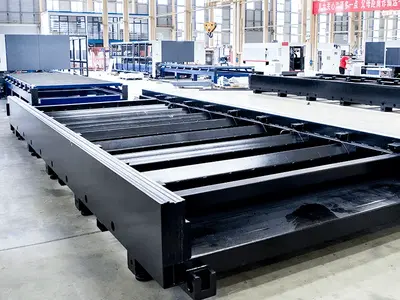

Structure: Heavy-duty, stress-relieved steel frame with enclosed safety cabin.
Components: Typically equipped with Yaskawa servo motors, Schneider electrics, and CypCut/CypNest software.
