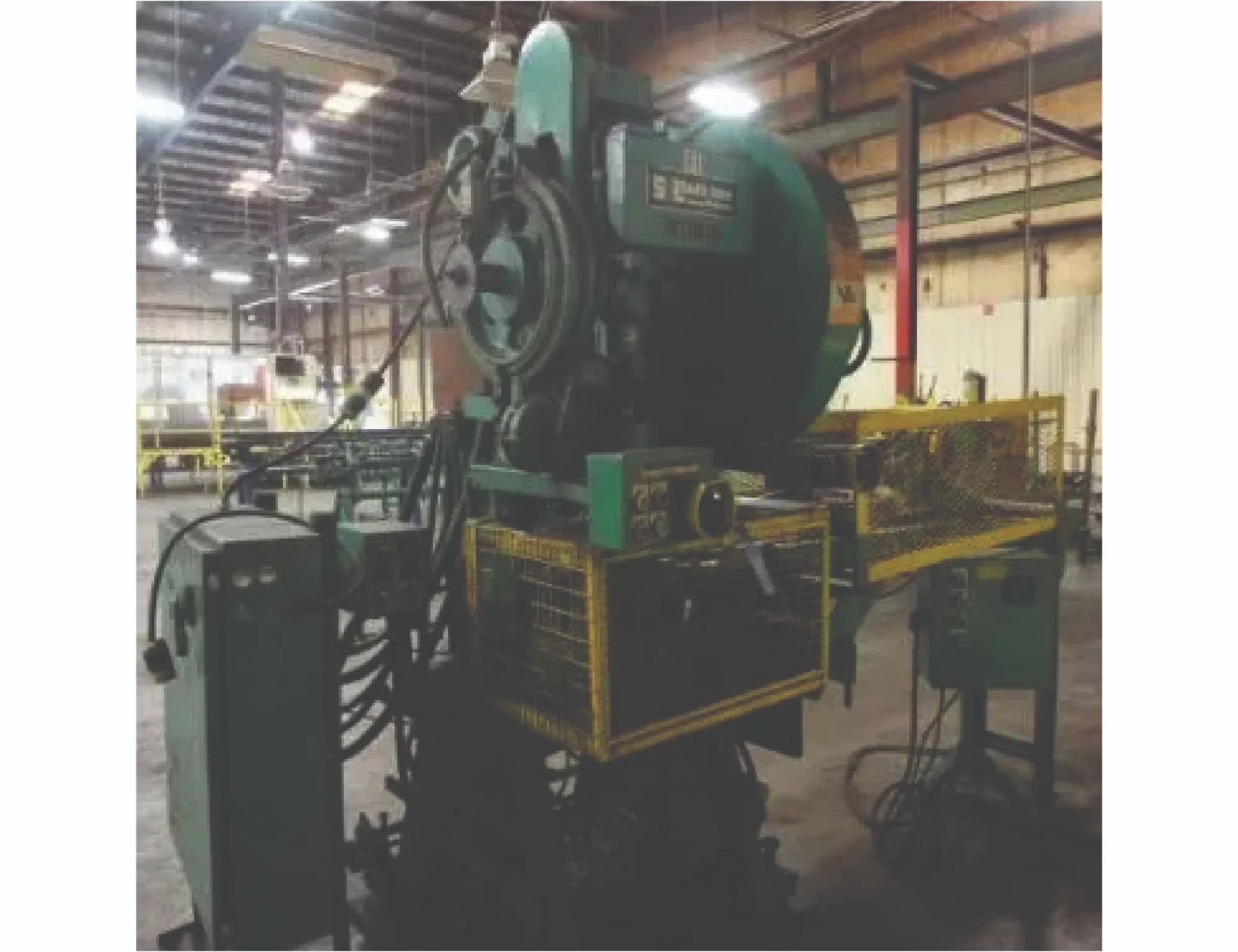

Used 27 Ton South Bend Johnson OBI Press, 27T capacity, 2.5" stroke, 13.375" shut height, 21.5"x13" bed. Single crank with air clutch & brake, one-shot lube system. 2" thick bolster, 290 SPM speed, estimated weight 4,500 lbs.
| Ton | 27 T | |
| Bed L-R | 21.5 in | |
| Bed F-B | 13 in | |
| Stroke | 2.5 in | |
| Shut Height | 13.375 in | |
| OBI Single Double | Single Crank | Single Crank |
Capacity: 27 Ton
Stroke: 2.5”
Shut Height: 13 3/8”
Slide Adjustment: 2.5”
Bed Area: 21.5” L-R x 13” F-B
Slide Area: 15” x 8”
Speed: 290 SPM
Equipped With:
2” Thick Bolster
Air Clutch & Brake
One Shot Lube System
Estimated Weight: 4,500#
