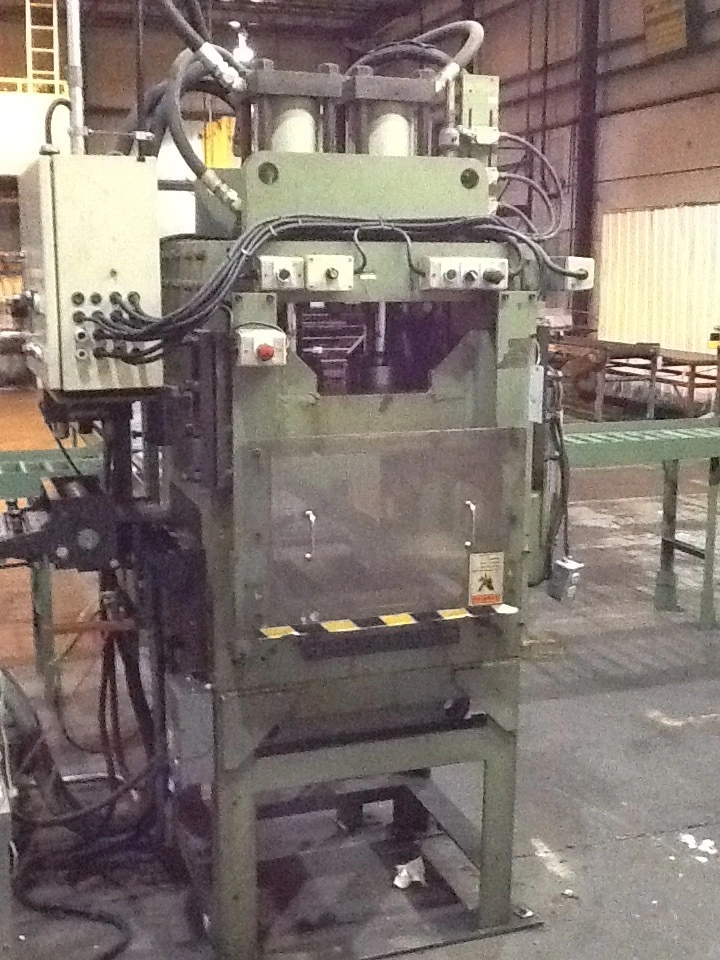

Used 4-Post 50 Ton Hydraulic Press, 1998 model. Features include 24"x25" bed, 10" stroke, 18" daylight, and 16.75" windows. T-Slotted bed and ram area ensure versatility. Compact design: 48"LR x 36"FB, 7500 lbs. Ideal for heavy-duty applications.
| Ton | 50 T | |
| Bed L-R | 24 in | |
| Bed F-B | 25 in | |
| Stroke | 10 in | |
| Daylight Opening | 18 in | |
| Windows | 16.75 in |
Capacity: 50 Ton
Stroke: 4.5”
Daylight: 16.5” with current ram and bolster plate
Bed Area: 22” LR x 25.75” FB (T-Slotted)
Ram Area: 21.75” LR x 25.5 ”FB (T-Slotted)
4-Post Design
Distance Between Uprights: 22.5” LR x 16.75” F-B (Windows)
Hydraulic Unit
Approximate Dimensions: 48”LR x 36”FB x 98” Tall
Estimated Weight: 7500 Lbs
