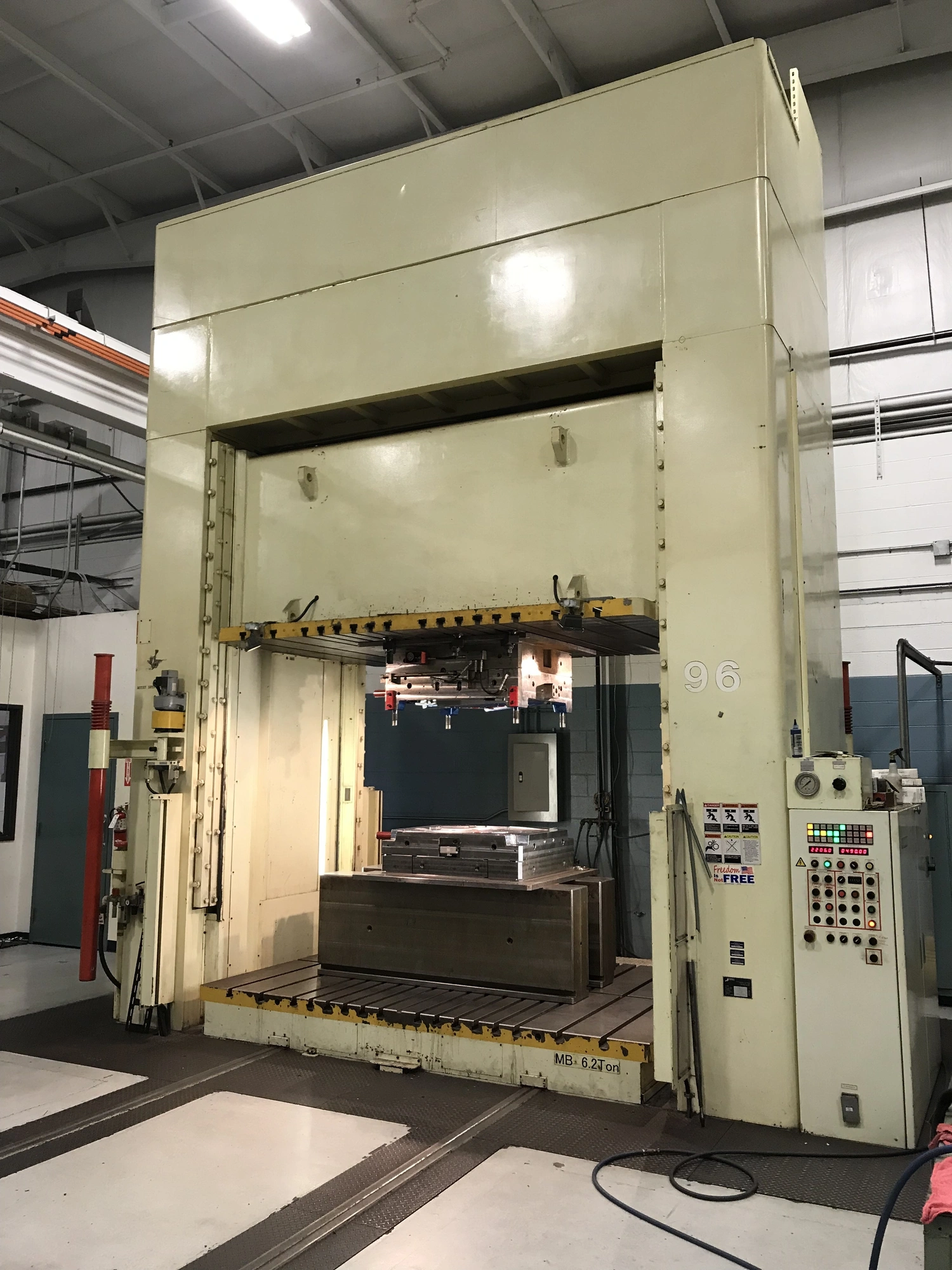

USED 2008 AMINO #DSP 100Y
Overview
Description
Used AMINO #DSP 100Y Hydraulic Spotting Press, 2008, 112 Ton capacity, 118" L-R x 79" F-B bed, 67" stroke, 87" daylight, Mitsubishi controls, T-slotted bolster, safety features. Approx. weight 132,000 lbs.
Specifications
| Ton | 112 T | |
|---|---|---|
| Bed L-R | 118 in | |
| Bed F-B | 79 in | |
| Stroke | 67 in | |
| Daylight Opening | 87 in |
Capacity: 112 Ton
Lifting Capacity: 50 Ton
Maximum Die weight: 20 Ton
Maximum Upper Die weight: 10 Ton
Stroke 67”
Daylight: 87”
Shut Height: 20”
Bed & Slide Area: 118” L-R x 79” F-B
Floor To Top Of Bed: 29”
Speeds:
Fast Advance: 188 IPM
Fast Return: 200 IPM
Pressing: 28 IPM
Slow Advance: 47 - 71 IPM
Slow Return: 47 - 71 IPM
Equipped With:
12” Thick T-Slotted Sliding Bolster Plate, In - Out
Motor & Controls
Free Standing Operators Panel
Mitsubishi Controls
Gibb Guided Slide
Tie Rod Construction
Safety Light Curtains
Safety Bar
Main Pump: #TCP34-L25-40 Double Gear
Micro Inch
Hydraulic Clamp System - 4 Sets
Overall Dimensions: 175” L-R x 79” F-B @ Feet / 217” L-R x 79” F-B x 244” Above Floor / Below Floor 39” Approximately
Approximate Weight: 132,000 Lbs.
