USED 2012 TOS VARNSDORF WHQ 13 MC

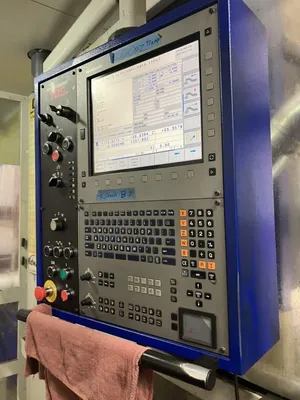

2012 TOS Model WHQ 13 CNC Horizontal Boring Mill Spindle 5.1", Heidenhain i530 Cntrll, 40 ATC
The WHN 13/15 is a plate-type horizontal boring machine with outstanding capabilities in the challenging CNC machining of large and heavy components. Its design combines high rigidity and accuracy, which makes it suitable for the energy and transport industries or in the production of machine units in heavy industry.
This powerful CNC machine is designed for drilling, boring and milling with high repeatability and stability. The WHN 13/15 horizontal boring machine enables easy integration with advanced systems such as TOScontrol (control system upgrade), automatic tool change or integrated metrology systems. WHN series machines are ideal for single-piece and series production, especially in areas where long-term accuracy and high load capacity are required.

Spindle Diameter .................: 5.1"
Spindle Taper ....................: #50
Maximum Spindle Speed ............: 3,000 RPM
Spindle Drive Motor ..............: 50 HP
Travels X-Axis ...................: 197" (5 Meter)
Y-Axis (Vertical).................: 118" (3 Meter)
Z-Axis (Spindle) .........:........ 39" (1 Meter)
W-Axis Column in/out .....:........ 70"
Feed Rates (X, Y, Z, W):........... 4 - 10,000 mm/min.
Rapid Traverse:.................... 10,000 mm/min.
Table Size .......................: 71" x 98" (Rotary)
Maximum Load .....................: 40,000 Lbs.

Equipped With:
Rotary Table Index: 360,000 Degrees
T-Type (Column In/Out)
All Hardened Ways
Spindle Oil Temp. Compensation

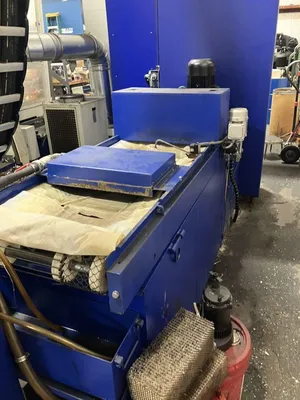

Coolant Filter Paper Roll Type
Coolant Through Spindle
Renishaw Probe
Chip Conveyor
Auto Lube System
Mist Collector
Spindle Nose Support
40 ATC Tool Changer

Machine Hours:
Control on 29,904
Machine on 27,506
Program run 7380
Total Spindle Time 9394
