Runs great!
| Swing | 20.1" | 510.54 mm |
| Machining Length | 13" | 330.2 mm |
| # Axis | 2 | 2 |
| Chuck Size | 6" | 152.4 mm |
| Bar Capacity | 1.75" | 44.45 mm |
| Power | 15 hp | 11.2 kW |
| Max RPM | 5,000 RPM | 5,000 RPM |
| Turning Dia | 11" | 279.4 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Fanuc i) | CNC (Fanuc i) |
| Weight | 7,700 lbs. | 7,700 lbs. |

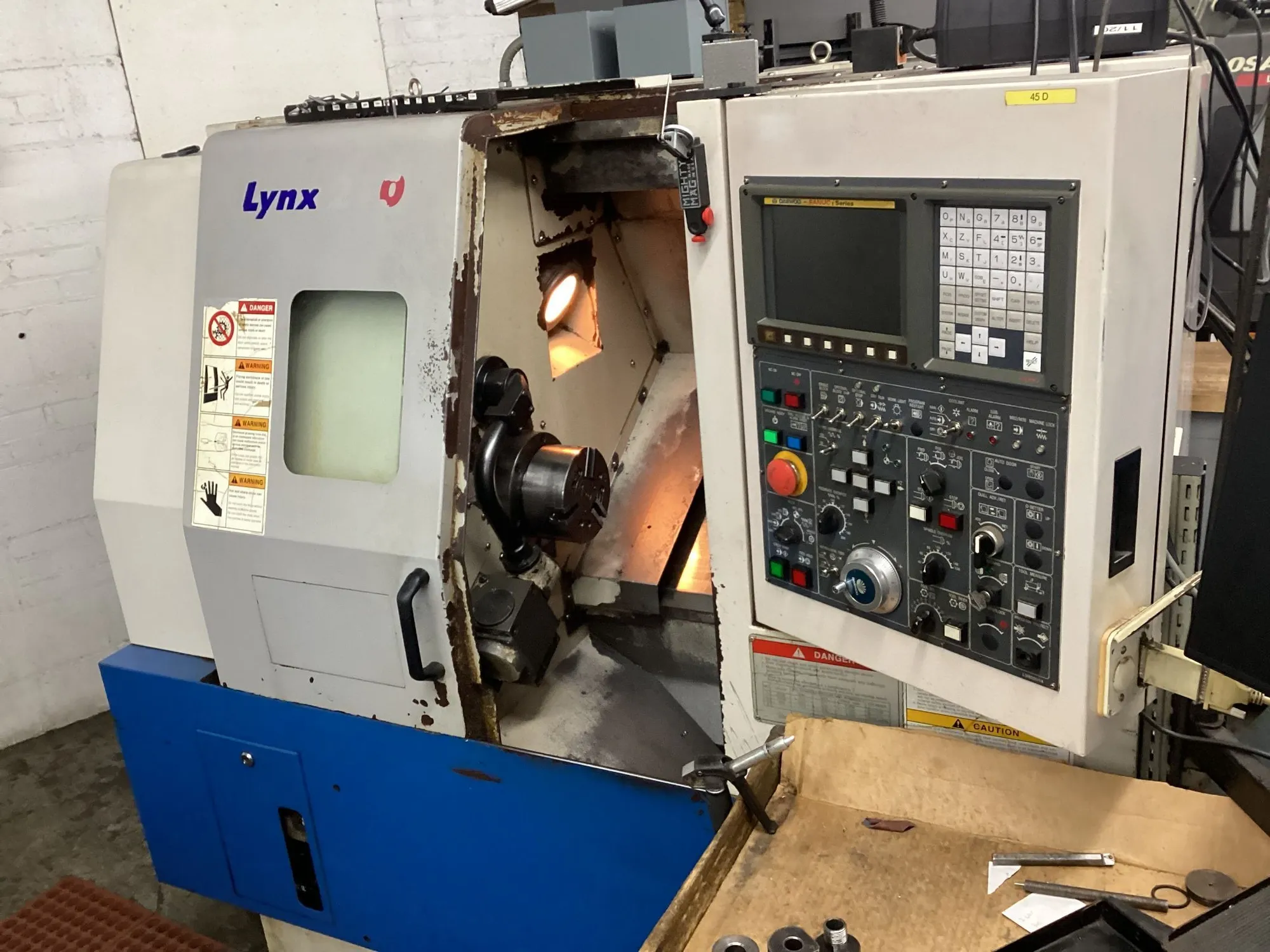

ONE USED DAEWOO BOXED WAY CNC LATHE
Model: Lynx 210A
Swing over bed: 18.11”
Swing over saddle: 13.78”
Max. machining diameter: 11.02”
Max. work length: 20”
Spindle: A2-5
Spindle speeds: 35 - 5,000 rpm
Spindle bore: 2.0”
Max. bar capacity: 1.75”
Spindle HP: 15, 220v/3ph
Turret positions: 12
OD tool height: 1”
Boring bar diameter: 1.5”
Rapid traverse: 944 ipm
Tail stock quill diameter: 2.56”
Taper: #3 MT
Quill travel: 3.15”
Dimensions: 76.77” x 62.60” x 7,700 lbs. (160” overall with chip conveyor)
EQUIPPED WITH:
6” 3-jaw chuck
Coolant
Fanuc i controls
Swing down tool setter
Hennig chip conveyor
Tail stock
Daewoo operator’s manual with schematics and electrical drawings
Fanuc Parameters and Maintenance manuals
SN: L210-3668, New March 2003
F.O.B – Illinois
Specifications are approximate, intended solely as a guide and are not binding. It is the buyers’ responsibility to inspect the goods and ascertain if the specifications, description, and condition of the goods conform to the buyers’ requirements
Best regards, Jerry Ditter, Pres.
