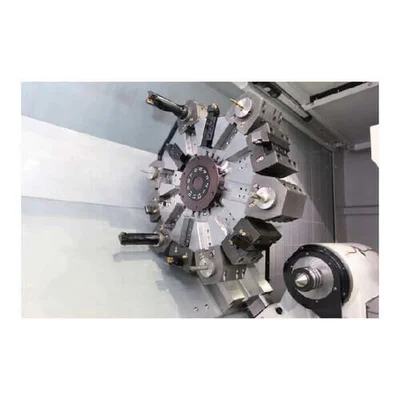

NEW TOYODA LA-300

The LA300 model is designed with a high performance spindle, modulized structure with optional Milling and Y-Axis supported by a rigid boxway design, all in a compact footprint.

• 2 Axis Lathe with option for milling and Y-Axis
• Gear box spindle
• Box guideway

LA-300
Standard bed turning center
Max Turning Length: 42.8" (1,086 mm)
Max Turning Diameter: 17.7" (450 mm)
X Travel: 9.65" (245 mm)

LA-300M
Standard bed turning center with milling capabilities
Max Turning Length: 43.9" (1,116 mm)
Max Turning Diameter: 16.5" (420 mm)
X Travel: 10" (255 mm)

LA-300Y
Standard bed turning center with Y-Axis
Max Turning Length: 44.4" (1,129 mm)
Max Turning Diameter: 13.8" (350 mm)
X Travel: 8.66" (220 mm)
Y Travel: ±2.0" (±50 mm)
