NEW TOYODA LA-250YS

Pennsylvania, United States

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

450Listings|4Followers
Overview
CNC Lathes

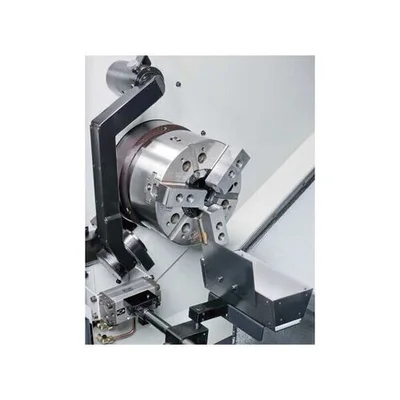

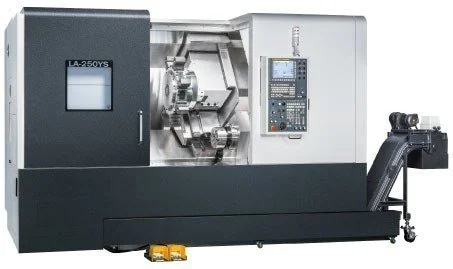

The LA-250YS is the best in class for the LA-250 series. This machine features a 15 station live turret, Y axis capabilities, and a sub-spindle. The LA-250YS also features precisely aligned built-in spindle motors, and upgraded servo motor on the Z and X axis, increasing the Z axis thrust to 7,691 lbs.

• 2 axes + C axis + Y axis
• Integral dual winding spindle
• 15 station turret

Specs
Swing
23.6"
599.44 mm
# Axis
4
4
Chuck Size
10"
254 mm
Bar Capacity
3"
76.2 mm
Power
30 hp
22.4 kW
Max RPM
3,500 RPM
3,500 RPM
Turning Dia
14.6"
370.84 mm
