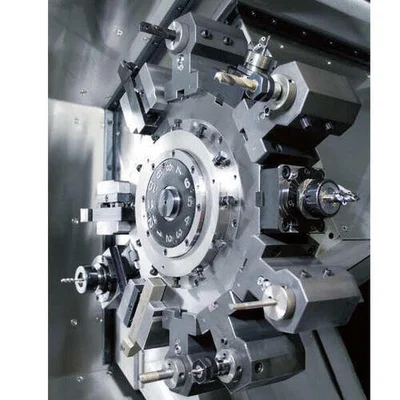

The LA model is designed with a high performance spindle and modulized structure with optional live tooling.
• 2 axes + C axis
• Gear box spindle
• Box guideway

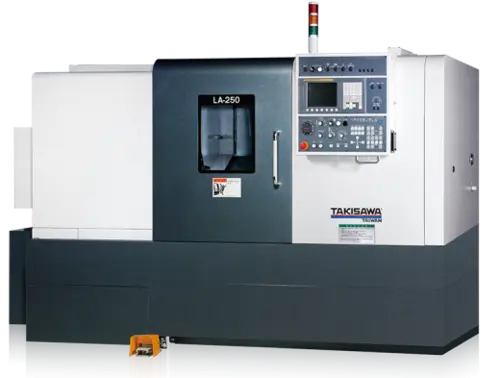

LA-250
Standard turning center
Max Turning Length: 28.2" (717 mm)
Max Turning Diameter: 17.7" (450 mm)
LA-250L
Longer bed turning center
Max Turning Length: 44" (1,117 mm)
Max Turning Diameter: 17.7" (450 mm)
LA-250M
Turning center with milling capabilities
Max Turning Length: 26.9" (683 mm)
Max Turning Diameter: 16.5" (420 mm)
LA-250ML
Turning center with longer bed and milling capabilities
Max Turning Length: 42.6" (1,083 mm)
Max Turning Diameter: 16.5" (420 mm)
| Swing | 22.8" | 579.12 mm |
| Machining Length | 45.9" | 1,165.9 mm |
| # Axis | 4 | 4 |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 3" | 76.2 mm |
| Power | 25 hp | 18.6 kW |
| Max RPM | 3,000 RPM | 3,000 RPM |
| Turning Dia | 17.7" | 449.58 mm |
