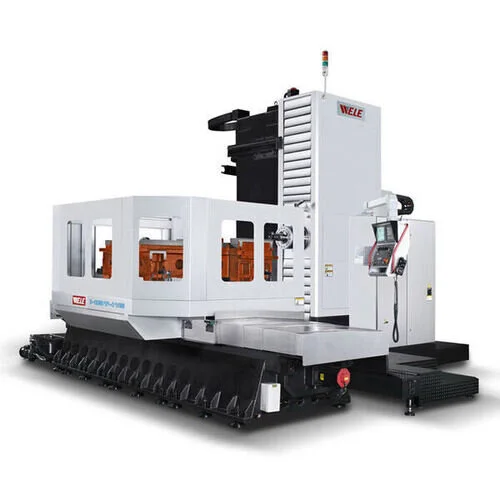

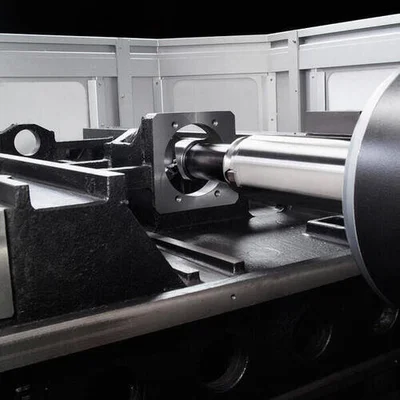

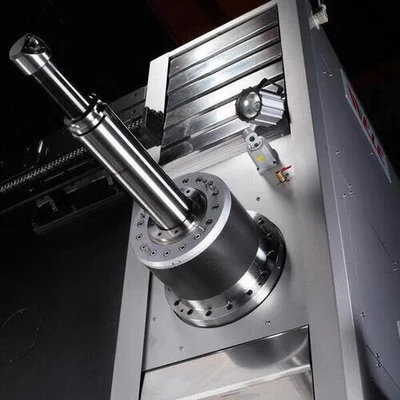

The HB1620 is a horizontal boring machine featuring a solid cast iron base, cylindrical roller guides, and backlash-free design on the B axis. The robust quill spindle provides stability for heavy-duty cutting, while the unique counterbalance system on the headstock ensures accuracy.
| X-Horiz Tvl of Col | 118" | 2,997.2 mm |
| Y-Vert Tvl of Head | 82.6" | 2,098 mm |
| Power | 35 hp | 26.1 kW |
| RPM | 2,500 RPM | 2,500 RPM |
| Table-W | 63" | 1,600.2 mm |
| Table-L | 78.7" | 1,999 mm |
| Dimensions | 307" x 267" x 179" | 307" x 267" x 179" |
| Weight | 79400 LBS | 79400 LBS |
