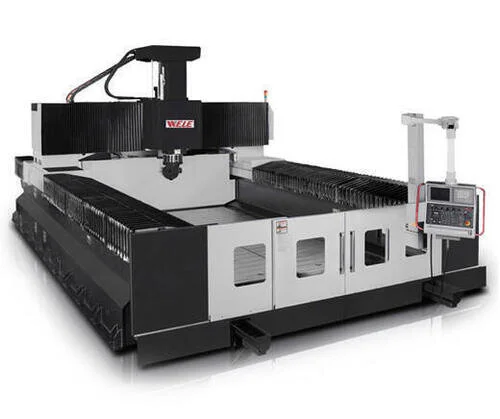

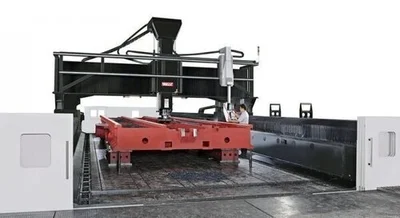

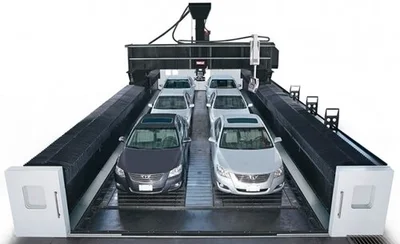

NEW TOYODA MG1040

Description

The MG1040 is universal, moving gantry machine for ultra-heavy applications requiring tight tolerances. This machine features roller guides for speed, twin linear scales for positioning accuracy, and an ergonomic design for easy operability. The option of additional heads can give this model five-face machining capabilities.

Specifications
X393.7"10,000 mm
Y157.5"4,000.5 mm
Z39.4"1,000.8 mm
Power35 hp26.1 kW
RPM6,000 RPM6,000 RPM
# ATC3232
TaperCAT50CAT50
Table-W149.6"3,799.8 mm
Table-L393.7"10,000 mm
Dimensions641" x 298" x 165"641" x 298" x 165"
Weight308,647 lb308,647 lb
