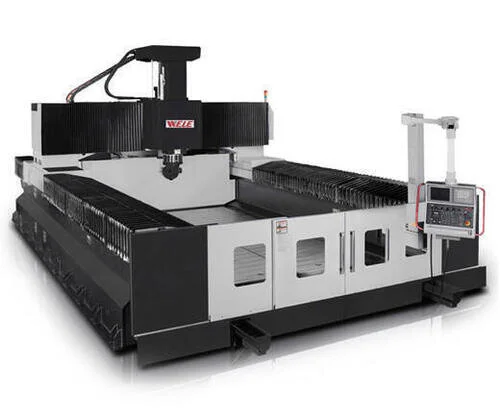

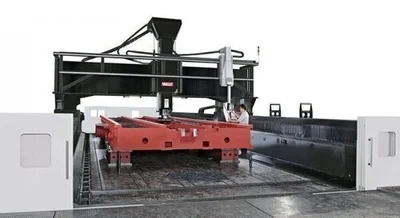

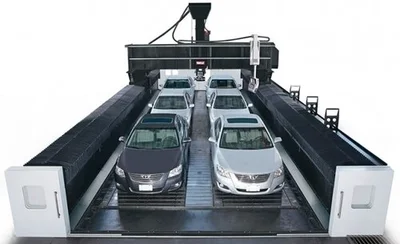

NEW TOYODA MG530

Description

The MG530 is universal, moving gantry machine for ultra-heavy applications requiring tight tolerances. This machine features roller guides for speed, twin linear scales for positioning accuracy, and an ergonomic design for easy operability. The option of additional heads can give this model five-face machining capabilities.

Specifications
X196.8"4,998.7 mm
Y118"2,997.2 mm
Z39.4"1,000.8 mm
Power35 hp26.1 kW
RPM6,000 RPM6,000 RPM
# ATC3232
TaperCAT50CAT50
Table-W110.2"2,799.1 mm
Table-L196.8"4,998.7 mm
Dimensions422" x 258" x 165"422" x 258" x 165"
Weight147710 LBS147710 LBS
