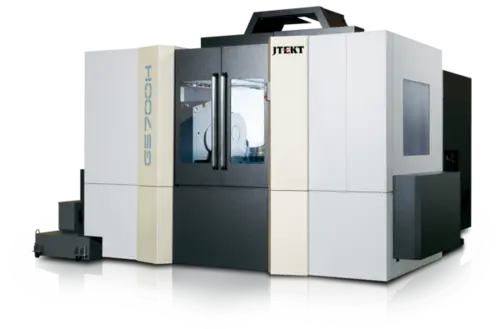

NEW TOYODA GS700H

Pennsylvania, United States
449Listings|4Followers
Overview
Multitasking Machining Centers

Toyoda's Multitasking Horizontal Machining Center is the first in the world to equip a skiving function to a general purpose horizontal type machining center to achieve mass production of gear parts. The GS700H offers improved productivity and flexible machining through high speed cutting and integrated gear part processes of lathe, gear skiving and machining center capabilities. Offering continuous machining on the shop floor, the GS700H ultimately reduces equipment and cutting tools utilized.

Specs
X
35.4"
899.16 mm
Y
33.5"
850.9 mm
Z
35.4"
899.16 mm
Power
40 hp
29.8 kW
# ATC
40
40
Taper
BBT No.50
BBT No.50
# Axis
3
3
Dimensions
205" x 244" x 146"
205" x 244" x 146"
Weight
66,000 lb
66,000 lb
