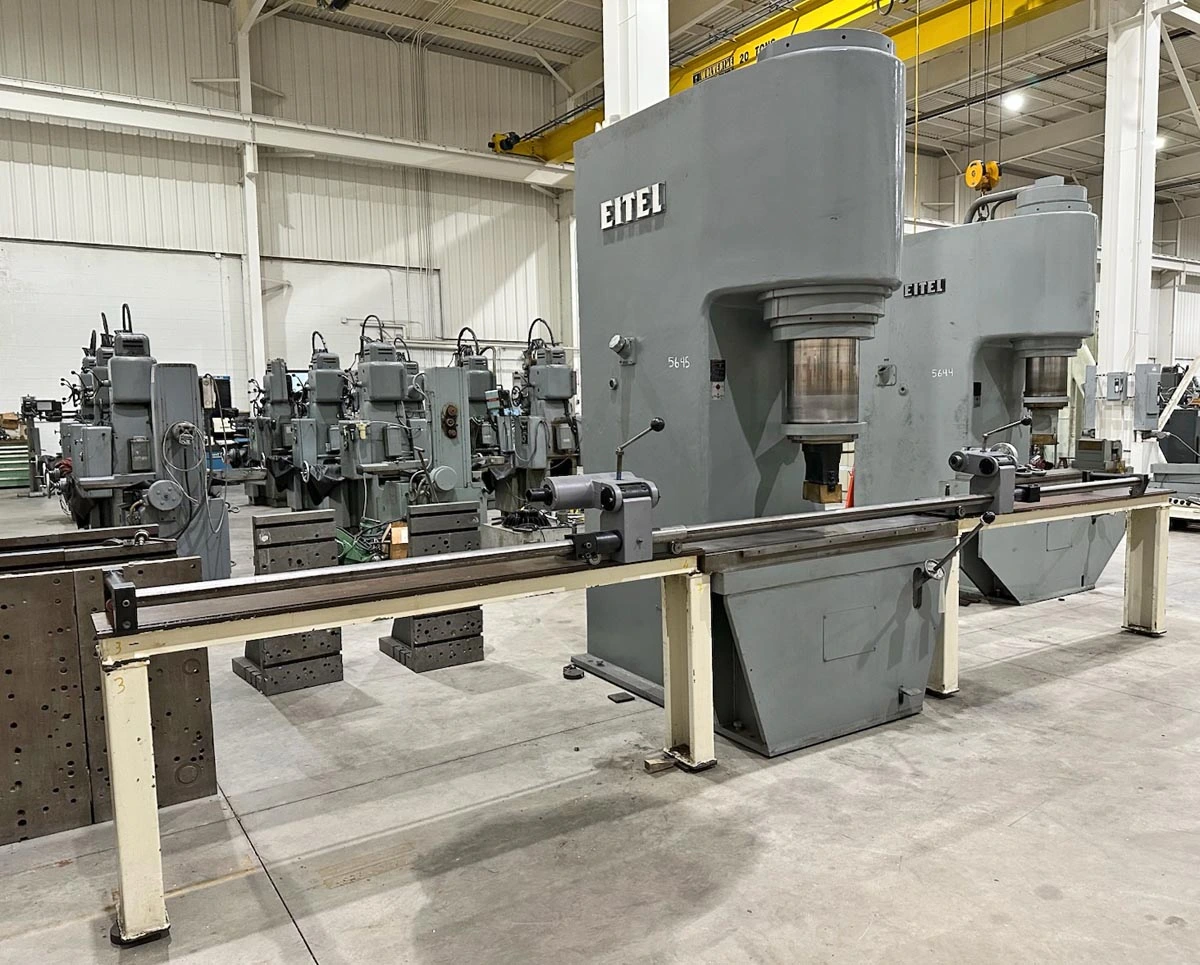

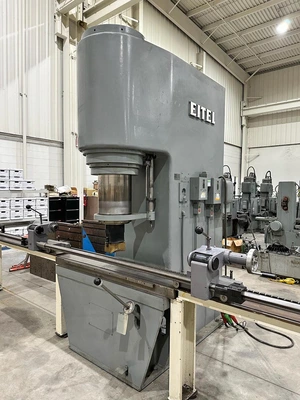

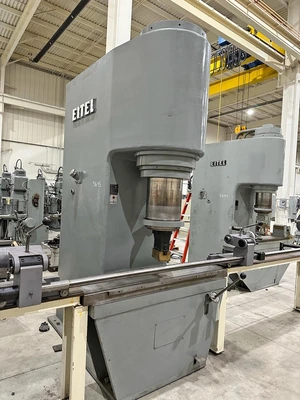

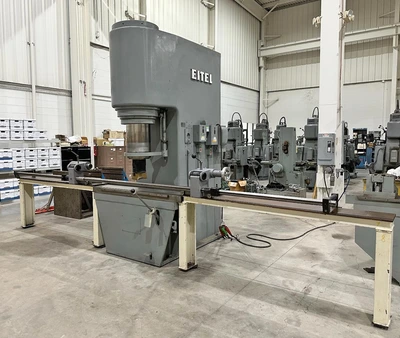

EITEL MODEL RP-200 HYDRAULIC STRAIGHTENING PRESS

STOCK NO. ET-5645
EITEL MODEL RP-200 HYDRAULIC STRAIGHTENING PRESS
SERIAL NO. 14195
NEW: 1977
CATALOG SPECIFICATIONS:
CAPACITY: 220 TONS
STROKE: 10″
STRAIGHTENING STROKE, CONTROLLABLE & ADJUSTABLE: 7/8″
DAYLIGHT: 33″
DEPTH OF THROAT: 13-3/4″
RAM SPEED, DOWNWARDS: 60 IPM
RAM SPEED, UPWARDS: 215 IPM
BASE TABLE DIMENSIONS: 13-3/4″ x 55″
OVERALL DIMENSIONS: 55″ R-L x 81″ F-B x 115″ HIGH
APPROX. WEIGHT: 16,000 LBS.
EQUIPPED WITH:

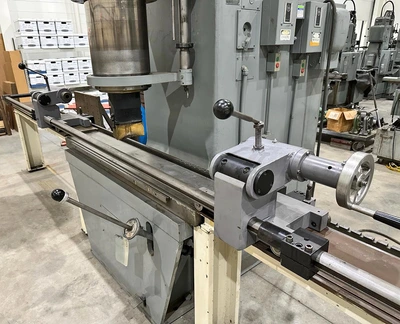

ROLLING FIXTURE WITH WR-3 SIZE CARS WITH CENTER TOPS
(2) 2 METER TABLE EXTENSIONS
LEVER CONTROLLED RAM WITH STROKE ADJUSTMENT
RAM ANVIL
10-5/8″ x 59-7/8″ MAIN TABLE
13-3/4″ x 55″ BASE TABLE
25 HP HYDRAULIC MOTOR
Location: WIXOM, MI
