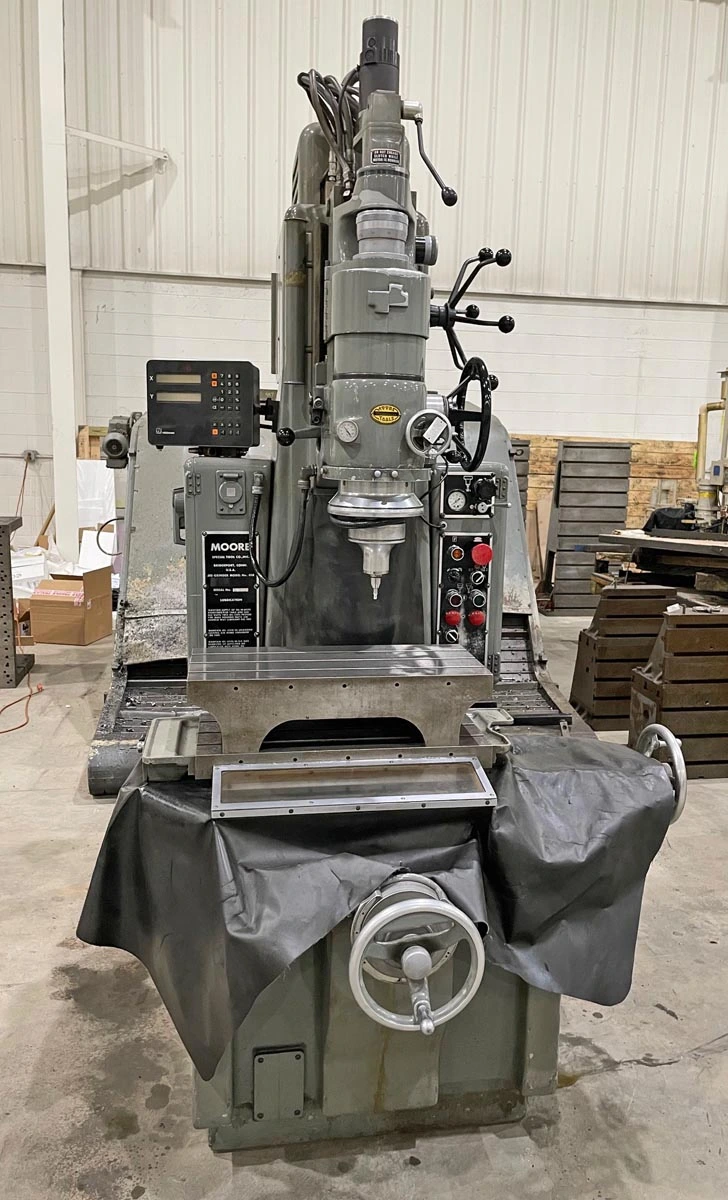

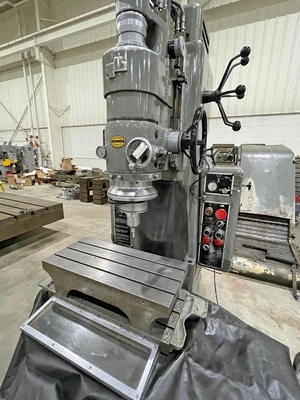

MOORE G-18 JIG GRINDER W/ 6″ COLUMN RISER & DRO

STOCK NO. ET-5631
(1) USED MOORE G-18 JIG GRINDER
Serial No. G-3221 New: 1983
Table size: 11″ X 24″
Table travels:
Longitudinal – 19″
Cross – 11″
Table to wheel collet: 24″ max., 2″ min.
Spindle column ways: 10″
Spindle speeds from 40 to 250 RPM,
Infinite Spindle feeds from 4 to 240 SPM Spindle travel: 3 5/8″
Machine equipped with:
****6″ Riser in column****

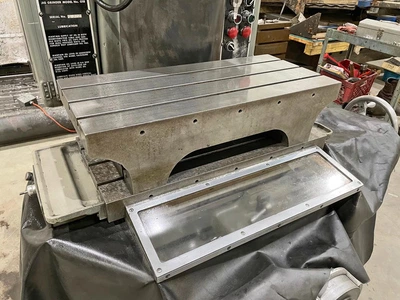

****6″ Auxiliary Table****

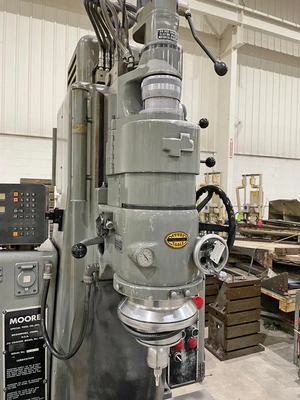

Moore 40,000 or 60,000 RPM spindle

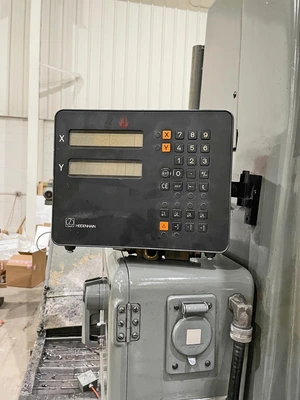

Heidenhain 2 Axis DRO

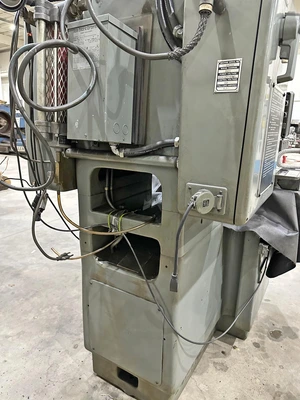

Electrical motors and controls
Dimensions: FB X RL – 80″ X 65″
Height: 102″
Est. weight: 3800#
Location: Wixom, MI
