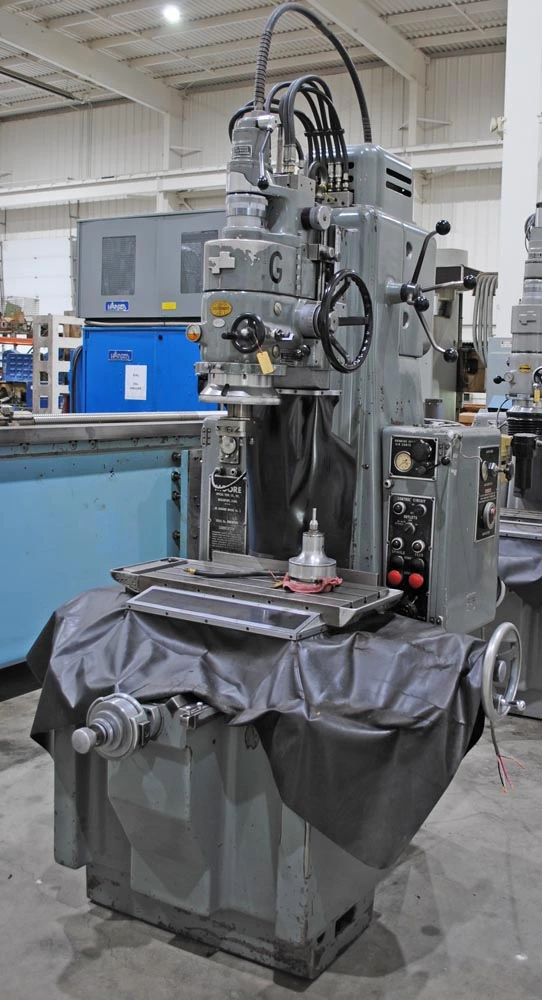

USED 1960 MOORE NO. 3

STOCK NO. ET-5304
(1) USED MOORE #3 JIG GRINDER
Serial No. G-148              New: 1960
Make: Moore
Model: No. 3
Table size: 11” X 24”
Table travels:
Longitudinal – 18”
Cross – 11”
Table to wheel collet: 18” max., 2” min.
Spindle to column ways: 10”
Spindle speeds from 40 to 250 RPM, infinite
Spindle feeds from 4 to 240 SPM
Spindle travel: 3 5/8”
Machine equipped with:
Moore 40,000 RPM or 60,000 RPM spindle
Electrical motor and controls
Dimensions: FB X RL – 80” X 65”
Height: 102”
Est. weight: 3800#
Location:  Wixom, MI, USA
