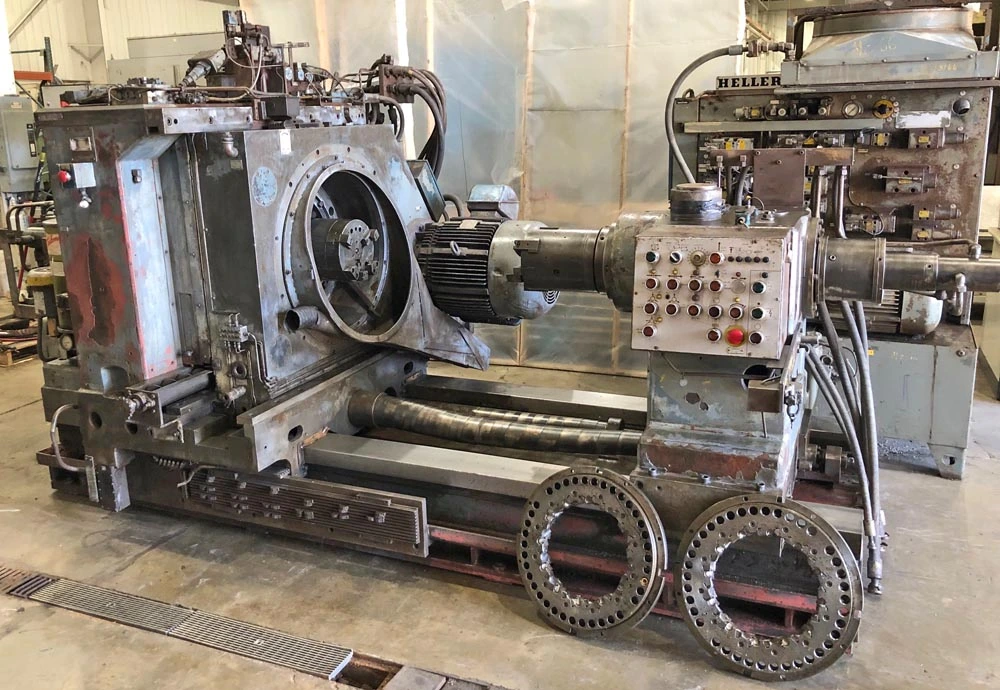

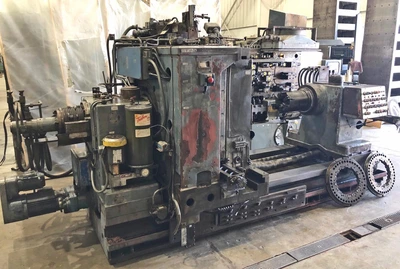

HELLER RFK 250/1000/1 SINGLE HEADED CRANKSHAFT MILLING MACHINE

STOCK NO: ET-5546
HELLER TYPE RFK 250/1000/1 INTERNAL CRANKSHAFT MILLING MACHINE
Serial Numbers: M37934 New: 1977
Crankshaft length: up to 1000 mm
Crankshaft diameter: up to 240 mm
Crankshaft stroke: up to 120 mm
(1) Milling head unit: 45 Kw
Milling cutter inner diameter: 250 mm – 280 mm
Steady rest support unit, travelling to adjust distance between milling cutter and
Steady rest
Machine will include (4) milling cutter bodies
Rohm Clamping Chucks
Quick Pro Control
Hydraulic Tracing to generate pin profile
Location: Wixom, MI…USA
