USED 1972 HEY NO. 3

STOCK NO. ET-5448

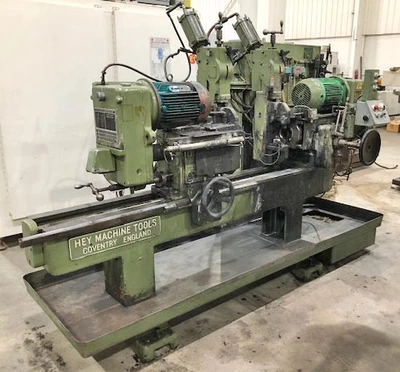

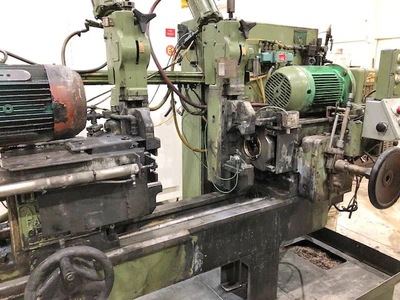

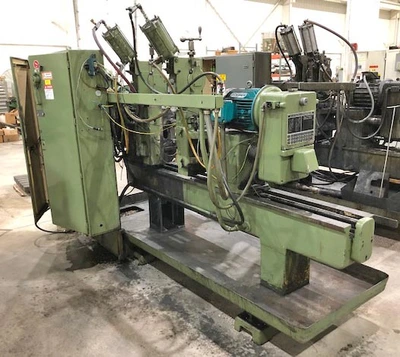

(1) USED HEY NO. 3 51” DOUBLE ENDED FACING AND CENTERING MACHINE
Serial Number: 2824-698 New: 1972
Make: HEY
Model: No. 3
Maximum diameter of work: 6.25”
Minimum diameter of work: .25”
Maximum workpiece length: 51”
Minimum length of work: 3”
Maximum swing over bed: 21”
Spindle speeds: 80 to 1720 RPM in 18 steps
(change gears to produce (1) RPM rate will be supplied with machine)
Length of fine adjustment to cutter: 2”
Feed rates in thousandths of an inch per rev. of spindle:
(4) steps .0013 – .0056
(2) Pneumatic work hold vises
Coolant system
Spindle drives – 10 HP each
(1) Pair of combination facing and centering cutter bodies to be supplied with machine
Weight: 7600#
Height: 70”
Location: Wixom, MI
