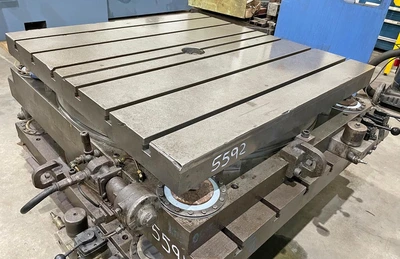

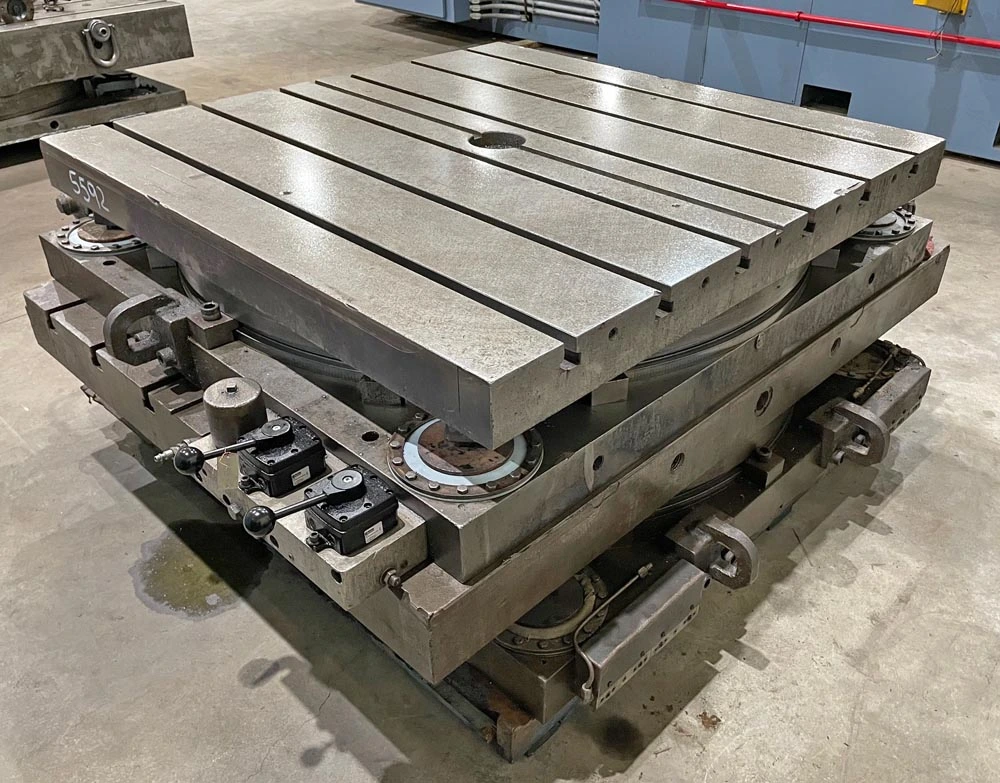

48″ X 48″ GIDDINGS & LEWIS HYDROSTATIC LIFT ROTARY INDEX TABLE

Stock Number: ET-5592
(1) USED GIDDINGS & LEWIS 48” X 48” HYDROSTATIC INDEX TABLE
Serial Number: NA
Working surface of table: 48” X 48”
Parallel T-Slots: 6 on 7.5″ Centers
90 Degree shot pin index positions: 4
360 degree table graduations in ½ degree increments.
Air clamping on all 4 corners.
Base dimensions: 48″ X 52″
Overall height: 11”
Table rated capacity: 25,000#
Table weight: 5000#
Location: Wixom, MI

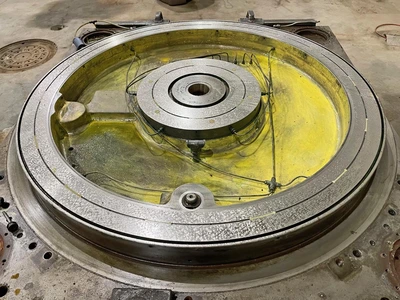

The table has new clamp bladders and air valves installed.
