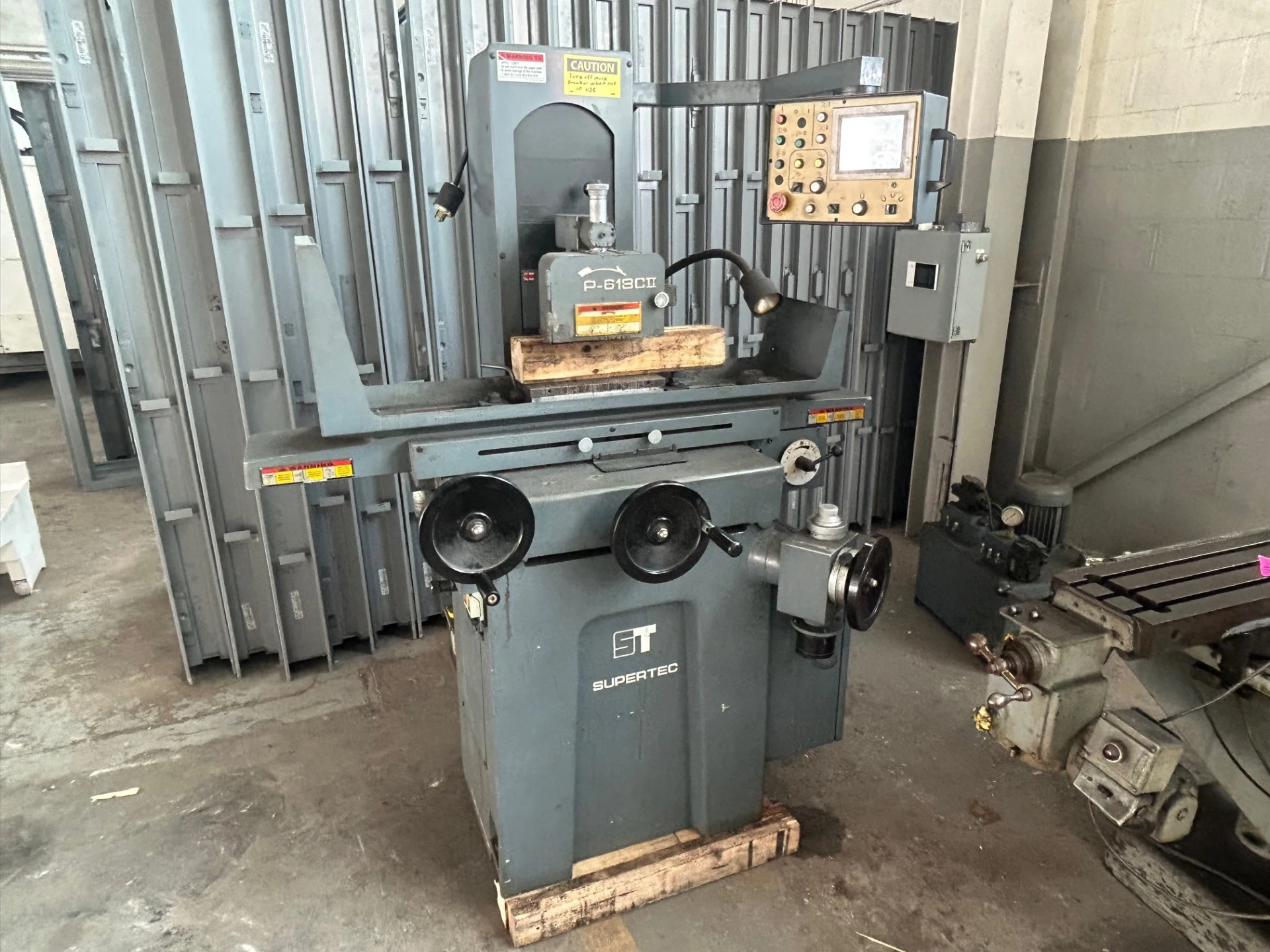

2005 Supertec P-618 CII 6 x 18 Automatic Surface Grinder

SPECIFICATIONS:
GENERAL CAPACITY
Table size: …………………………………………………. 6″ x 18″
Max. grinding length:……………………………………..    19″
Max. grinding width:………………………………………      6″
Distance from table surface to spindle center:………..    19″
Standard chuck size: ……………………………………… 6″ x 18″
LONGITUDINAL MOVEMENT
Manual traverse: ……………………………………………    20″
Hydraulic traverse: …………………………………………    20″
Automatic travel: ………………………………………….. 16-82 fpm
CROSS MOVEMENT
Manual traverse: …………………………………………….     7″
Handwheel
– Per revolution: …………………………………………….   0.2″
– Per graduation: ……………………………………………   0.001″
Max. length automatic feed ………………………………..   6.5″
VERTICAL DOWNFEED
Rapid traverse: (CII) ………………………………………..   13 ipm
Auto downfeed: (CII): ……………………………….  0.0001″-0.002″
Handwheel:
– Per revolution: ……………………………………………..    0.05″
– Per graduation: …………………………………………….    0.0001″
MOTORS
Spindle motor: ………………………………………………..    3 HP

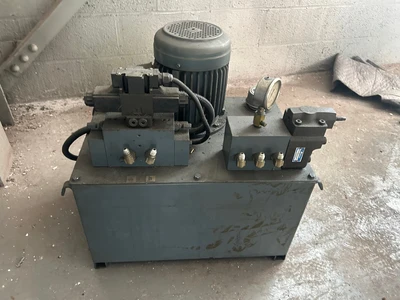

Hydraulic motor: ……………………………………………..    1 HP
Crossfeed motor: ……………………………………………..  1/2 HP
GRINDING WHEEL
Wheel size: ………………………………………………   8″ x ½”x 1¼”
Spindle speeds: ……………………………………………….  3450 rpm
