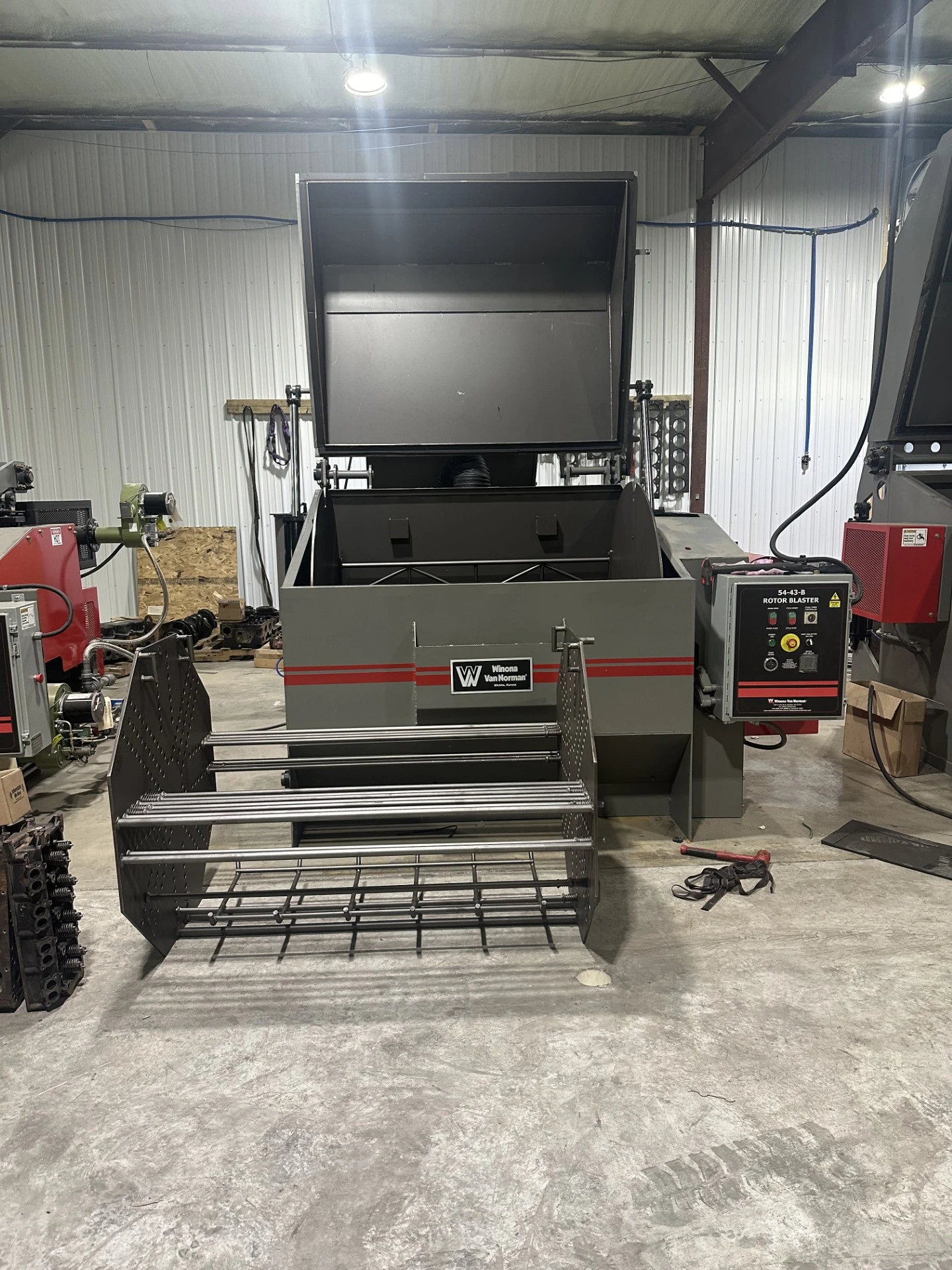

Winona Van Norman Thermal Cleaning System 54TCS

Thermal Cleaning System 54TCS – Winona Van Norman
https://www.youtube.com/watch?v=lx7Sc8ZnMHk
https://www.youtube.com/watch?v=om4_r-Yvi2s
Basket Size
54 in x 40 in x 40 in
1372 mm x 1016 mm x 1016 mm
Approx. Basket Capacity
8 Heads or 2 Block
Blast motor
20HP
BTU oven
1.0 M BTU
Dust collector
DC3
Burners Qty
2
Total Heat Cap
1,115,000 BTU
HC Mian Burner
850,000 BTU
HC Afterburner
300,000 BTU
Cleaning Temp
300° to 750°F
148° to 398°C
Stack Size
8”
203 mm
Gas
6 wc
Electrical
208-220 V / 1 PH 220 V / 3 PH 440 V / 3 PH
Door Open Height
233”
3098 mm
Approx. Machine Weight
4405 lbs.
1998 kg
