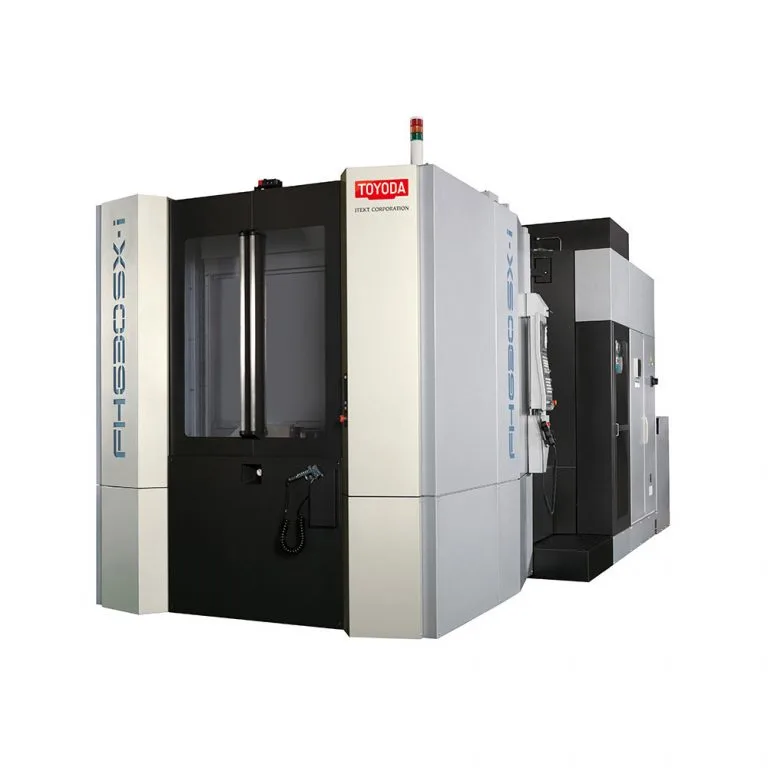

Toyoda JTEKT FH630 SX-i Horizontal Machining Center

Pallet Size
24.8″ x 24.8″ (630 mm x 630 mm)
X-axis Travel
41.34” (1,050 mm)
Y-axis Travel (spindle head)
35.43” (900 mm)
Z-Axis Travel
41.34” (1,050 mm)
Max. Workpiece Swing (diameter)
46.06” (1,170 mm)
Max. Workpiece Height
49.21″ (1,250 mm)
Maximum Load on Pallet
3,306 lb (1,500 kg)
Spindle Torque
887 ft-lb (1,202 Nm)
Spindle Speed
8,000, 15,000 RPM
Rapid Feedrate (X,Y and Z)
2,362 ipm (60 m/min)
Tool Storage Capacity
60, 121, 240, 330
