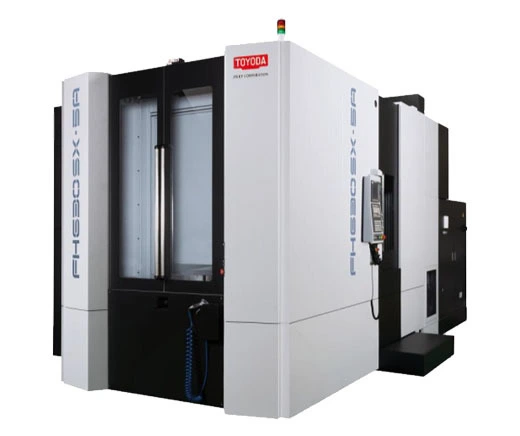

Toyoda JTEKT FH630 SX-i 5-Axis Horizontal Machining Center

Pallet Size
24.8″ x 24.8″ (630 mm x 630 mm)
X-axis Travel
31.5” (800 mm)
Y-axis Travel (spindle head)
33.46” (850 mm)
Z-Axis Travel
41.33” (1,050 mm)
Max. Workpiece Swing (diameter)
46.06” (1,170 mm)
Max. Workpiece Height
62.99″ (1,600 mm)
Maximum Load on Pallet
3,306 lb (1,500 kg)
Spindle Speed
8,000 , 15,000 RPM
Spindle Taper
CAT50
Rapid Feedrate (X,Y and Z)
2,362 ipm (60 m/min)
Tool Storage Capacity
60, 120, 240, 330
