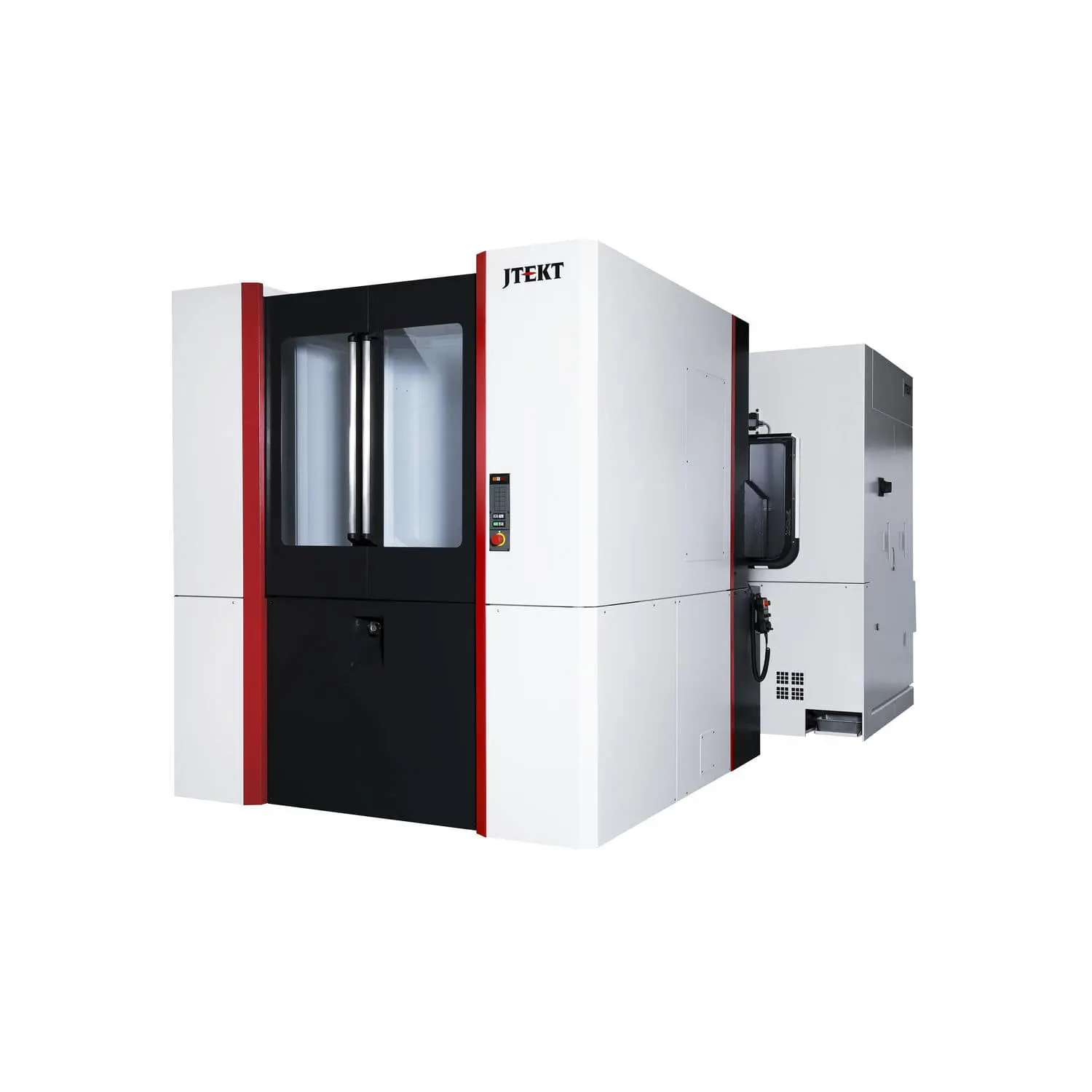

Toyoda JTEKT FH5000S-i Horizontal Machining Center FH5000/5500

Pallet Size
21.65 x 21.65 (550 x 550) in (mm)
X-axis Travel
35.40 (800) in (mm)
Y-axis Travel (spindle head)
31.50 (800) in (mm)
Z-Axis Travel
34.60 (880) in (mm)
Max. Workpiece Swing (diameter)
35.40 (900) in (mm)
Max. Workpiece Height
43.30 (1,100) in (mm)
Maximum Load on Pallet
2,200 (1,000) lb (kg)
Spindle Torque
223 (303) ft-lb (Nm)
Spindle Speed
15,000 / 20,000opt. RPM
Spindle Taper
CAT40
Rapid Feedrate (X,Y and Z)
2,362 (60) ipm (m/min)
Tool Storage Capacity
60, 90, 120, 180, 240, 330
