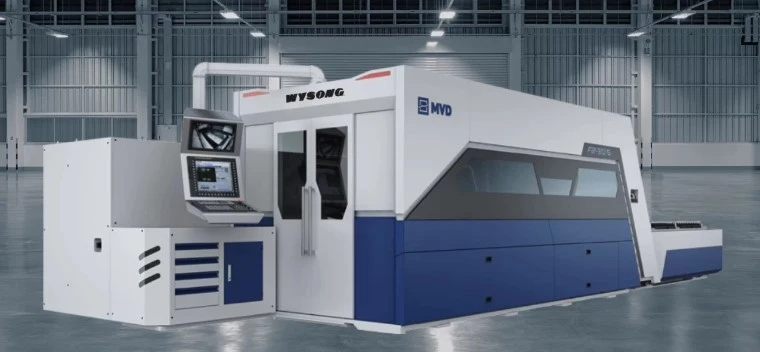

Wysong USA Fiber Laser
Overview
Description
Standard Features
Windows operating system
Multi-touch graphic screen
Multifunctional keyboard, button/joystick/speed potentiometer
EtherCAT communications for data transfer or machine control
Enhanced Database for cutting parameters, for different type
materials and thicknesses
Fly Cut functions for same direction high-speed cutting
“No Piercing” technology for thin materials, efficiency time and
cost improvements
Better results at thick cuts, by prioritizing all piercings process before
regular cutting
Remote connection to PC
Multi-language support
Enhanced sheet metal recognition software
Referencing and sheet alignment functions
Setting different user-login levels for operators/maintenance/admin
Multi-functional workpiece job order search/recall function
components
IPG YLS resonator
Optimum focus diameter
Maintenance free technology,
Continuous perfect beam quality
with a laser beam is transmitted by the fiber core through the
fiber cable.
High efficiency, low consumptions of electricity fiber laser
technology, 5-6 times the lower running cost
IPG Chiller
Digital micro processing controlled industrial purpose chiller unit
Part Nesting
Lantek or Radan options
Offers perfect nesting efficiency for automatic or manual part nesting
Copy, move, reverse, turn alignment manual, semi-automatic,
functions geometrical working
Advanced nesting algorithm optimizes the use of material, minimizing scrap.
