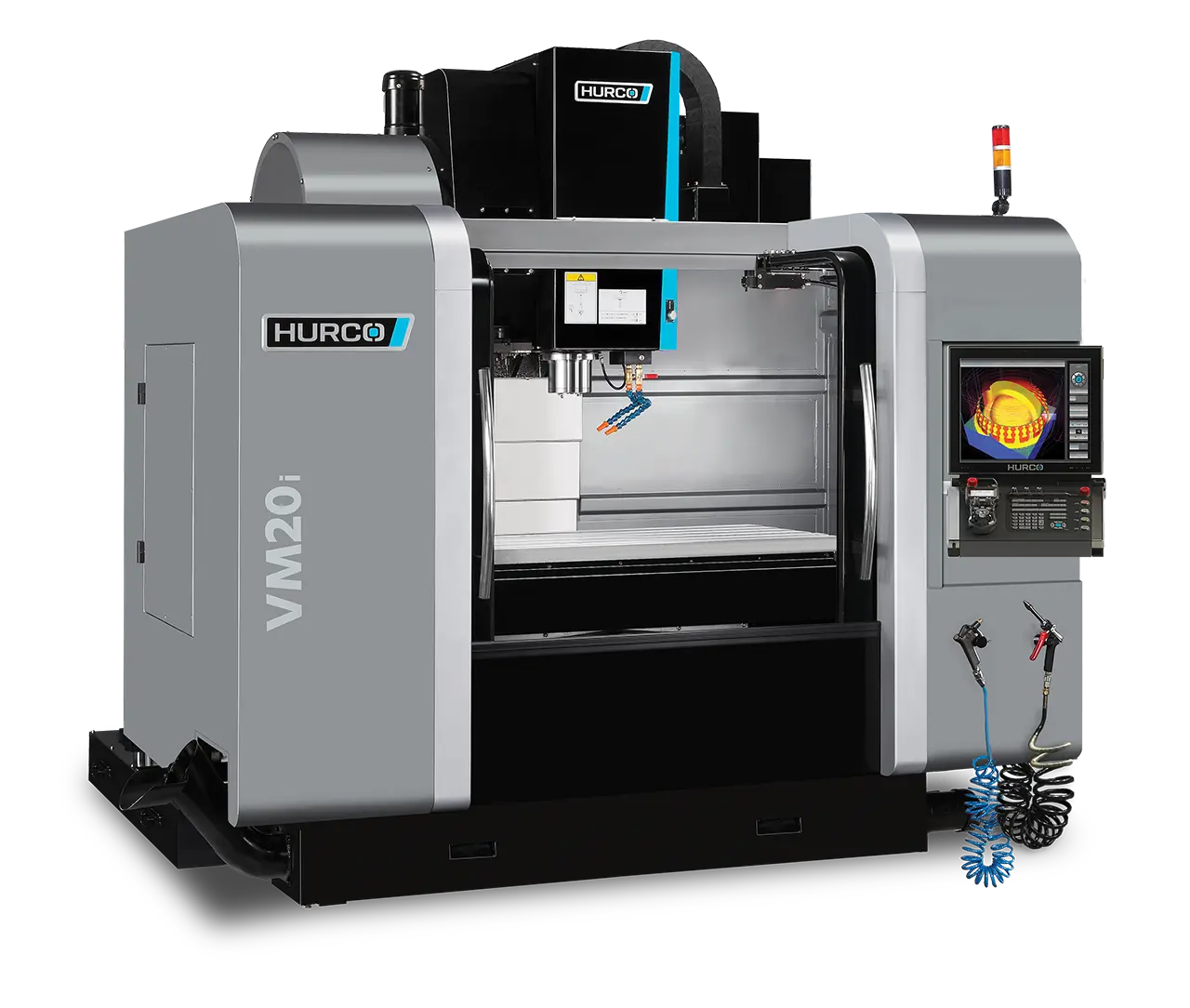

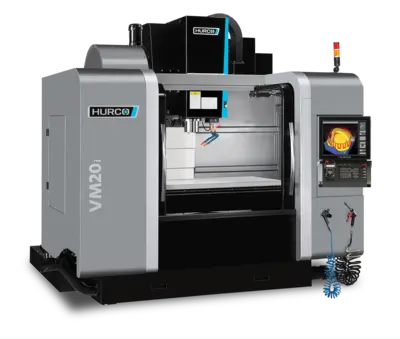

Hurco VM20i Vertical Machining Center

X, Y, Z Axis Travel
40 x 20 x 20 in (1,016 x 508 x 508 mm)
Table Size
46 x 20 in (1,168 x 508 mm)
Max. Weight on Table
3,970 lbs (1,800 kg)
Spindle Nose to Table Min/Max
4.0 / 24 in (102 / 610 mm)
T-Slot Size
5 x .71 in (5 x 18 mm)
Spindle
Max. Spindle Speed
12,000 rpm
Spindle Power (peak – 1 min)
20 hp (15.0 kW)
Spindle Torque (peak – 1 min)
60.7 ft-lbs @ 1,740 rpm (82.3 Nm @ 1,740 rpm)
Tool Changer
Tool Type
CAT 40 / Big Plus® (CAT/BT 40)
Number Of Tools
24
Max Tool Diameter
3.1 in (80 mm)
Max Tool Length
9.8 in (250 mm)
Max Tool Weight
15.4 lb. (7 kg)
Feedrates
Rapid Traverse X,Y,Z Axis
1,102 in/min (28 m/minute)
Max Programmable Feedrate
1,102 inches/minute (28 m/minute)
Size
Max. Operating Floor Space
146.5 x 130.4 in (3,722 x 3,312 mm)
Machine Height
100.0 in (2,541 mm)
Machine Weight
9,127 lbs (4,140 kg)
