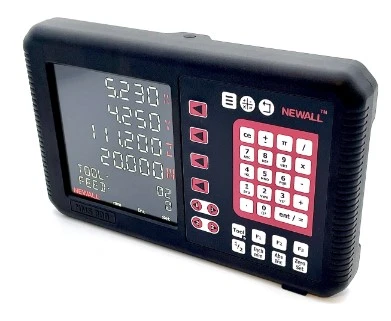

NMS800 Digital Readout
The NMS800 is the newest in Newall’s range of premium readouts. The DRO hosts many productivity enhancing features that will increase machine tool efficiency.
The NMS800, when matched with Newall’s Spherosyn Serial and Microsyn Serial encoders, provides years of maintenance free, trouble free performance. Newall’s inductive encoders are simple to install and designed to provide consistent accuracy and reliability even under the harshest workshop conditions.
Available in 2, 3 or 4 axes
Clean, Crisp PMVA LCD Display
Self Sensing Encoder Input
Long Life Membrane Keypad
Linear and angular reading (model dependant)
Safe, Low Voltage Power Supply (UL)
Panel Mount Version Available
NMS800 Features Include:
Feed Rate Display
Bolt Hole Circle Routine
Line Hole Routine
Arc Contouring
Programmable Memory/Teach
Polar Coordinates
Tool Offsets
Taper Calculations
Axis Vectoring/Summing
Linear and Segmented Error Comp.
Undo
RS232 Output
Multiple Languages
Linear Encoders for Newall DRO Systems
Spherosyn Serial and Microsyn Serial encoders are designed to give you consistent accuracy and reliability under even the harshest shop conditions. Based on the principle of electromagnetics, Newall’s encoders embody a truly innovative design in which all of the electronic and measuring components are sealed and protected. The encoders carry an IP67 (NEMA 6) environmental rating and will continue to provide accurate and reliable readings even when submerged in water, oil and coolant.
Encoder Benefits
IP67 (NEMA 6)
Withstands dust, dirt, oil and other environmental conditions
No mechanical wear characteristics
Requires no cleaning or maintenance
High tolerance to shock and vibration
Download NMS800 Digital Readout Documents:NMS800 Datasheet (NMS800 Datasheet)
NMS800 User Manual (NMS800 user manual)
Spherosyn Serial & Microsyn Serial Installation Guide (Spherosyn Serial & Microsyn Serial Installation Guide)
