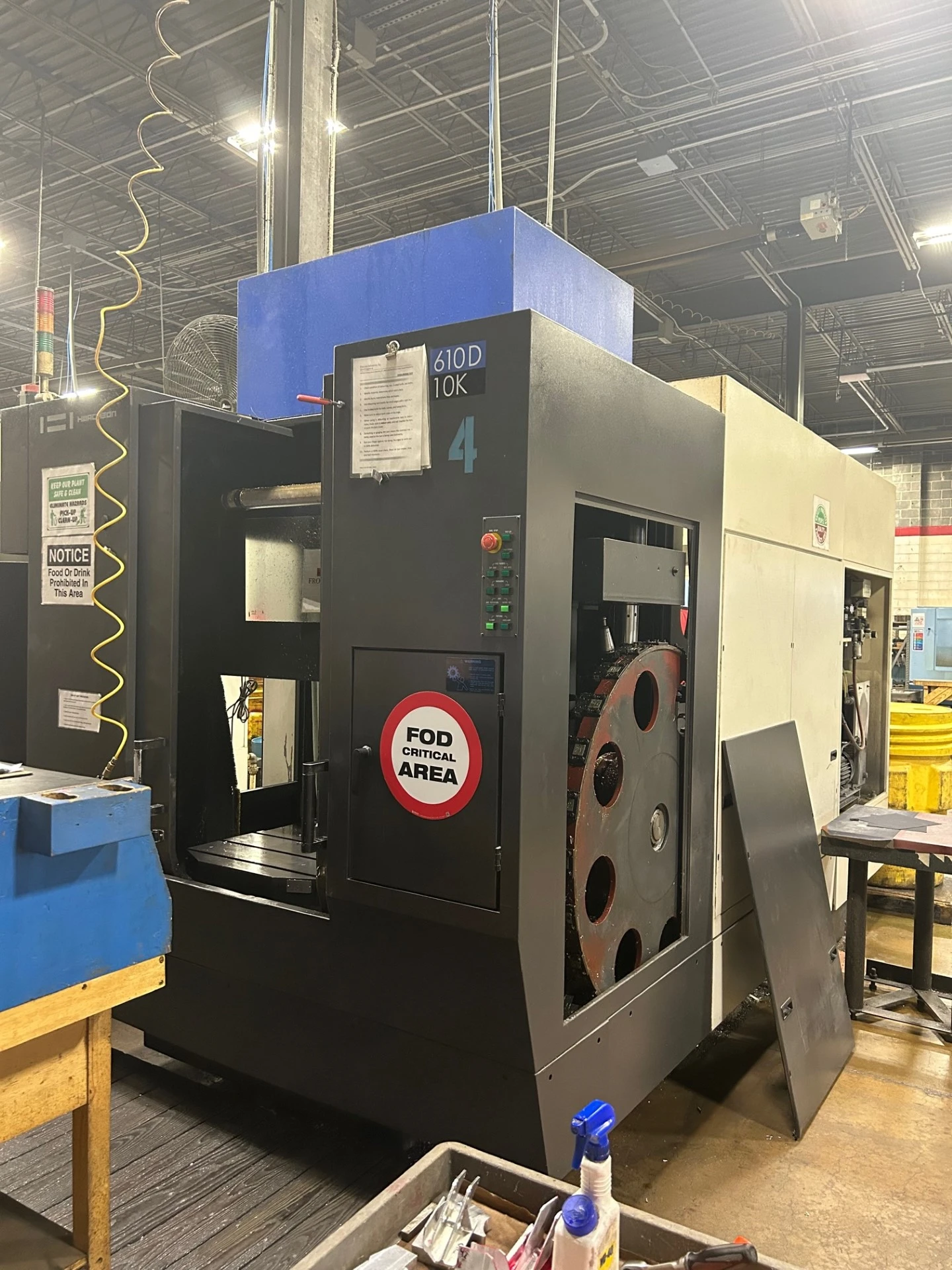

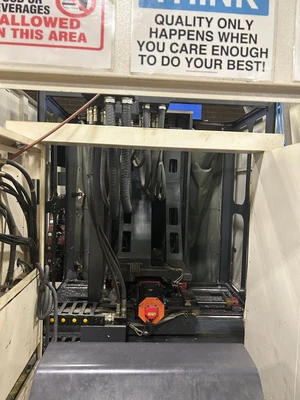

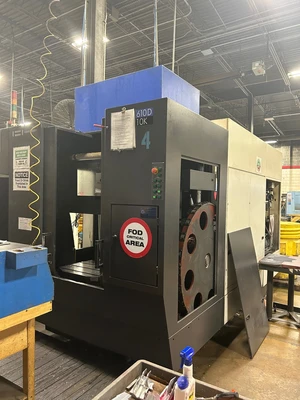

2010 Hwacheon Vesta 610D Vertical Machining Center with Pallet Changer

STANDARD EQUIPMENT
Accessories

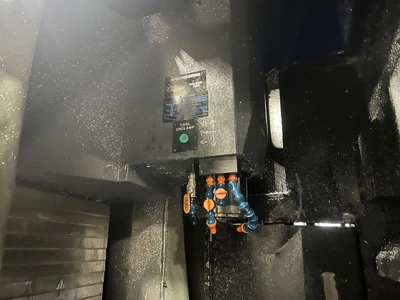

1) Coolant through the spindle capability (1000 psi capable) *1000 psi pump is not included
2) Coolant Chip Wash Gun
3) MPG Handle
4) 4th axis pre wiring only (Drivers and motor excluded)
5) Signal lamp (R/G/Y), 3 color)
6) Spindle cooler (Jacket Cooling)
7) Lubrication oil separation tank
8) Full enclosure

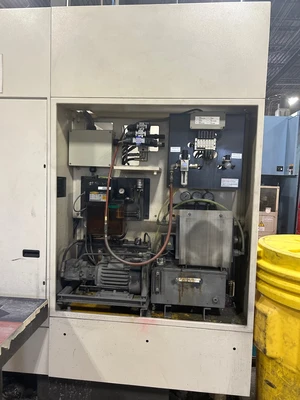

9) Lubrication system
10) Pneumatics system
11) Adjust bolt, block & plate
12) Tool kit & box
13) Work light
14) 10.4 inch LCD screen
15) Operation manual & parts list
Control:

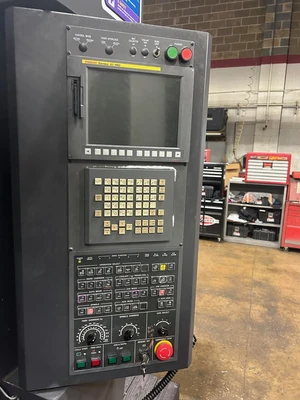

16) Fanuc OiMD Control
17) Manual Guide i
18) Ethernet Function
19) Helical Interpolation
20) Rigid Tapping
21) Door interlock
22) Hwacheon AI Nano Contour Control (HAI) -40 block buffer
23) Part program storage length 1,280M(512kb)
Hwacheon Programming:
24) HECC (Hwacheon Efficiency Contour Control System)
25) HTLD (Hwacheon Tool Load Detection)
26) OPTIMA-HTLD (OPTIMA Tool Load Detection System
27) HSDC-(Hwacheon Spindle Displacement Control)
28) HTDC-(Frame Displacement Control)

MACHINE SPECIFICATIONS
 TRAVEL
X-axis Stroke (longitudinal movement of Spindle) mm(inch) 610 (24.02”)
Y-axis Stroke (Cross movement of Table) mm(inch) 430 (16.93”)
Z-axis Stroke (Vertical movement of Spindle) mm(inch) 570 (22.44”)
Distance from table surface to spindle gauge plane mm(inch) 150 (5.91”) ~ 720 (28.35”)
Distance between columns to spindle Center mm(inch) 535 (21.06”)
 TABLE

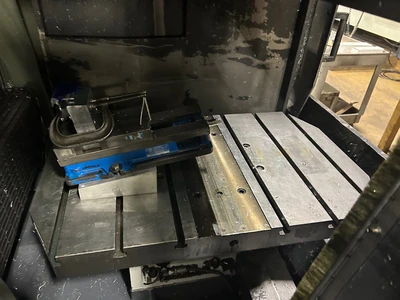

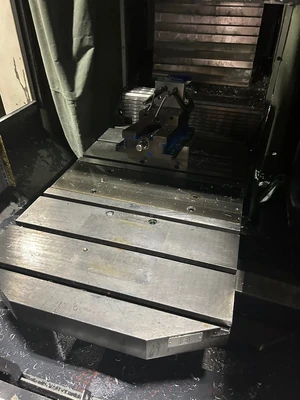

Working surface mm(inch) 2ea – 650(25.59”) x450(17.72”)
Table loading capacity kgf(lbf) 2ea – 300 (661)
Table surface configuration (T slots WxP –No. of slots) mm(inch) 2-18 (0.71”) x150(5.91”) 3ea
APC Index Time (180°) sec 6
 SPINDLE
Max. spindle speed rpm 10,000
Spindle Motor kW(HP) 15/11 (20/15)
Type of spindle taper hole – ISO#40, 7/24 Taper (BT-40)
Spindle bearing inner diameter mm(inch) Ø70 (2.76”)
Method of Spindle lubrication & cooling – Grease Lub. + Jacket Cooling
 FEEDRATE
Rapid Speed (X/Y/Z) m/min(ipm) 40 (1,575) / 40 (1,575) / 40 (1,575)
Feedrate (X/Y/Z) mm/min(ipm) 1~24,000 (945)
 ATC
Type of tool shank – MAS-403 BT40 (Opt.:CAT40)
Type of pull stud – MAS P40T-1 (45˚)

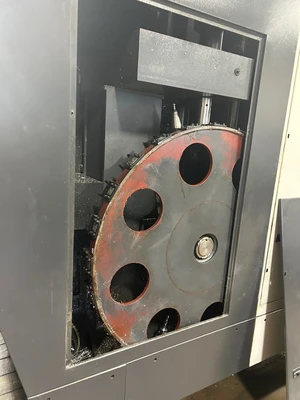

Tool storage capacity ea 24
Max. tool diameter [without adjacent tools] mm(inch) Ø90 (3.54”) / Ø150 (5.91”)
Max. tool length mm(inch) 300 (11.81”)
Max. tool weight kgf(lbf) 8 (17.64)
Method of tool selection – Memory Random
Method of operation (Magazine/Swing arm) – Servo Motor / Geared Motor
Tool changing time (Tool to Tool) sec 1.5
Tool changing time (Chip to Chip) sec 4
 Motor
Feed motor (X/Y/Z) kW(HP) 7 (9.4) / 7 (9.4) / 7 (9.4)
Coolant motor (Spindle) kW(HP) 0.4 (0.54)
Coolant motor (chip brushing) kW(HP) 0.9 (1.2)
Spindle cooler (50/60Hz) – Inverter type kW(HP) 0.18 (0.24)
Hydraulic motor kW(HP) 2.2 (2.95)
 Power Source
Electric power supply kVA 50
Compressed air supply (Pressure x Consumption) – 5~7Kgf/㎠ x 690Nℓ/min

 TANK CAPACITY
Lubrication ℓ(gal) 6 (1.59)
Spindle cooling ℓ(gal) 20 (5.28)

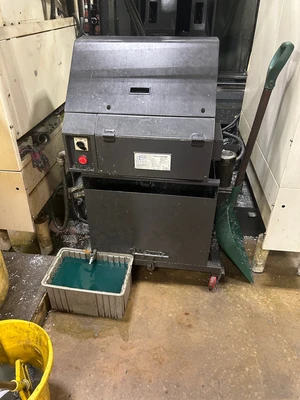

Coolant ℓ(gal) 400 (105.7)
Hydraulic ℓ(gal) 15 ( 3.96)
 MACHINE SIZE
Height mm(inch) 2,670 (105.12”)
Floor space (length × width) mm(inch) 4,130 (162.6”) x 2,090 (82.28”)
Weight kgf(lbf) 7,500 (16,535)
 NC CONTROLLER Fanuc 0i-MD
