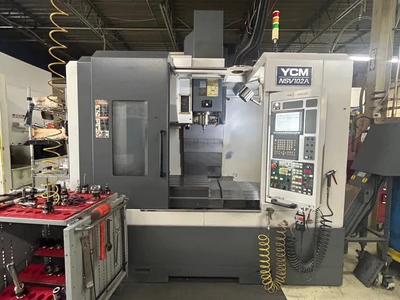

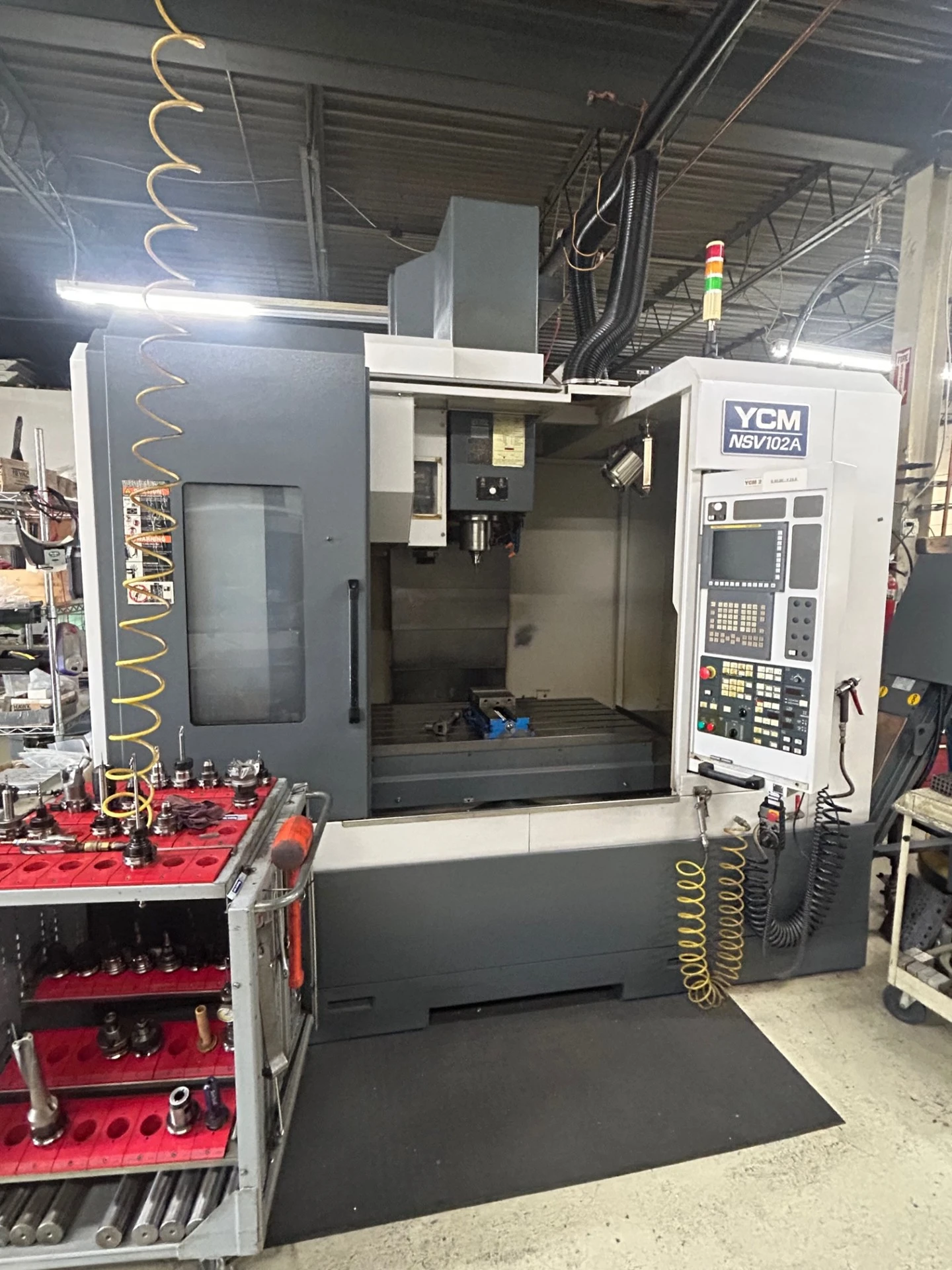

2011 YCM NSV102A (C10) 40 x 20 Vertical Machining Center

Table / Pallet Size: 41.06″ x 25.59″
X-Travel: 40.16″
Y-Travel: 23.62″
Z-Travel: 23.62″
Rapid Traverse: 1890 IPM
Spindle
Spindle Taper Type: BT40
Spindle Speed: 12,000 RPM
Spindle Motor: 30 HP
Spindle Nose to Table Top: 3.94-27.56″
Tool Changer
Tool Magazine Capacity: 30
Tool Changer Type: Side Mount
Tool Change Time: 1.9 seconds
Chip-to-Chip Time: 3 seconds
Control

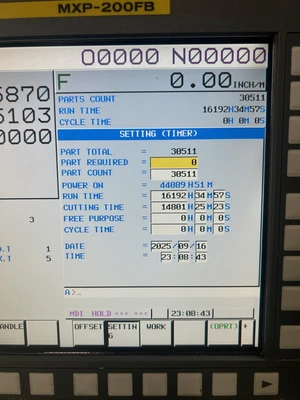

Control Make/Model: Fanuc MXP-200FB CNC Control
Options

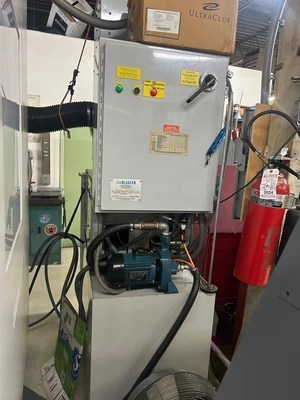

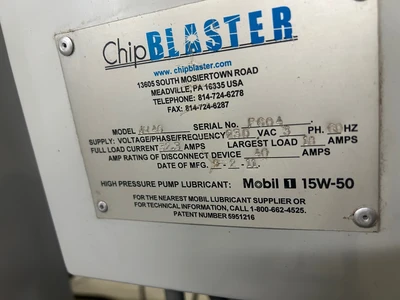

Additional Machine Specs: Wash Down Systems, High Pressure Coolant
Chip Removal: Chip Conveyor
