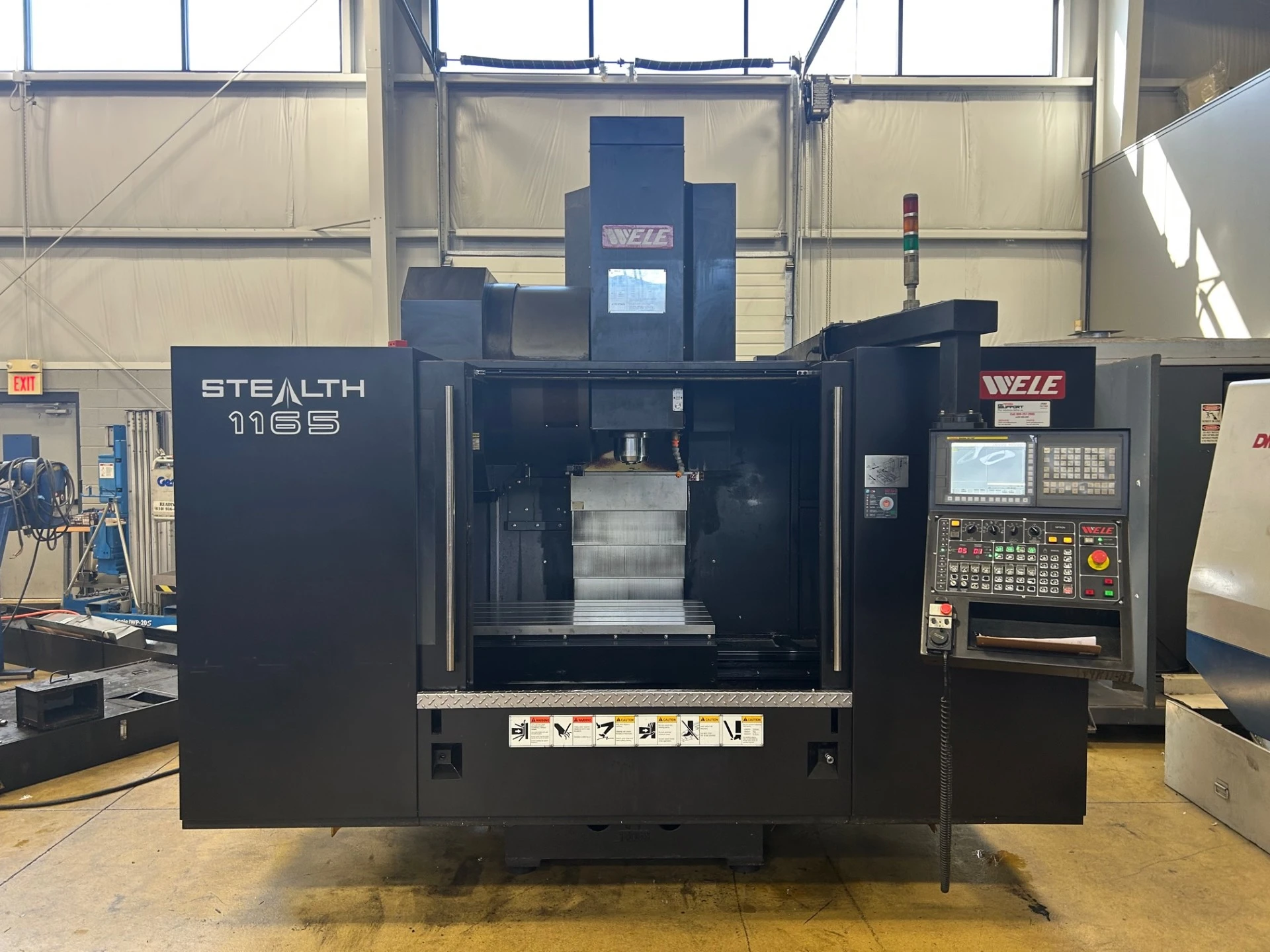

2012 Toyoda Wele Stealth 1165 AA1165 Box Way Machining Center

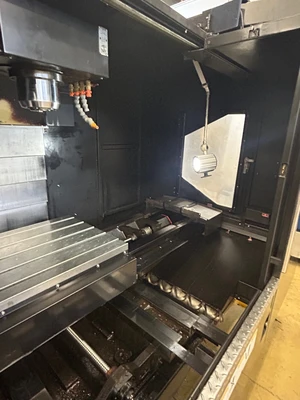

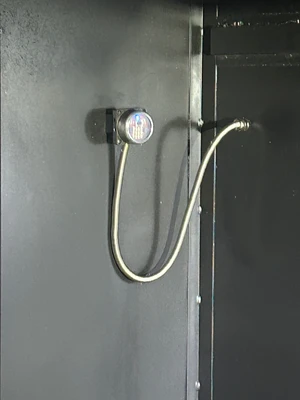

BLUM Part Probe Receiver (NO SPINDLE PROBE)

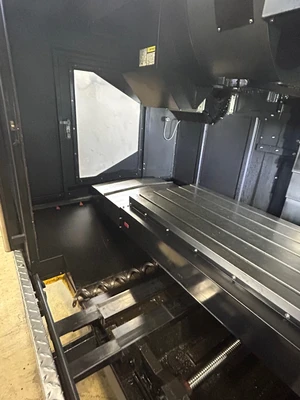

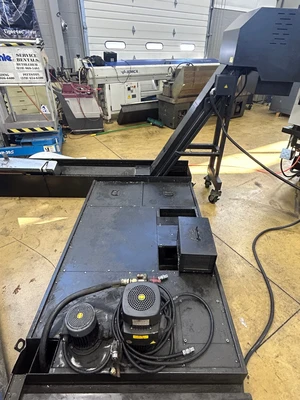

Chip Conveyor
Chip Blaster D-30-70 High Pressure Fixed Flow Coolant System
1,000 PSI, 8 Gpm, Tank Not Included, Dual Cartridge Filtration
Stroke Unit Specifications
X Axis Travel (AA965) mm (in) 900 (35.4)
X Axis Travel (AA1165) mm (in) 1,100 (43.3)
X Axis Travel (AA1365) mm (in) 1,300 (51.2)
X Axis Travel (AA1565) mm (in) 1,500 (59.1)
Y Axis Travel mm (in) 650 (25.6)
Z Axis Travel mm (in) 600 (23.6)
Distance from Spindle Nose to Table Top mm (in) 125 – 725 (4.9 – 28.5)
Distance from Spindle Center to Column mm (in) 650 (25.6)
Table Unit Specifications
Table Size: X Direction (AA965) mm (in) 1,110 (43.3)
Table Size: X Direction (AA1165) mm (in) 1,300 (51.2)
Table Size: X Direction (AA1365) mm (in) 1,450 (57.1)
Table Size: X Direction (AA1565) mm (in) 1,650 (65.0)
Table Size: Y Direction mm (in) 650 (25.6)
Table Load Capacity (AA965) kg (lb) 900 (1,985)
Table Load Capacity (AA1165) kg (lb) 1,100 (2,425)
Table Load Capacity (AA1365) kg (lb) 1,300 (2,866)
Table Load Capacity (AA1565) kg (lb) 1,500 (3,306)
Table T-Slot Size: Width x Distance x Number mm (in) 18 x 125 x 5 (0.71 x 4.92 x 5)
Table Height From Plant Floor mm (in) 900 (35.4)
1. Machine Specifications
Spindle Unit Specifications
Spindle Taper type CAT40
Spindle Motor (Cont. / 30 Min. Rating) kW (hp) 11 / 15 (15 / 20)
Spindle Speed: Direct Drive – CT40 rpm 15 ~ 12,000 min -1
Spindle Output Torque: Direct Drive – CT40 Nm (ft lbs) 125 (92)
Spindle Bearing Diameter – Direct Drive – CT40 mm (in) 70 (2.75)
Feedrates Unit Specifications
Rapid Feedrate (X and Y Axes) m/min (ipm) 30 (1,181)
Rapid Feedrate (Z Axis) m/min (ipm) 24 (945)
Maximum Cutting Feedrate m/min (ipm) 24 (945)
Accuracy (JIS) Unit Specifications
Positioning Accuracy mm (in) ±.005 (±.0002)
Repeatability mm (in) ±.003 (±.0001)
Coolant System Unit Specifications
Coolant Tank Capacity gal 113.5
Flood Coolant (Gallons per Minute) gal 20
1. Machine Specifications (All Models, Unless Otherwise Indicated):
ATC – 24 Tool “Drum” Type With “S” Cam Drive Unit Specifications
Tool Magazine Capacity – CT40 number 24
Tool Magazine Capacity – CT50 number 24
Maximum Tool Diameter / Tool in Adjacent Pocket – CT40 mm (in) 76 (2.99)
Maximum Tool Diameter / Adjacent Pocket Empty – CT40 mm (in) 127 (5.0)
Maximum Tool Length from Gage Line – CT40 mm (in) 250 (9.8)
Maximum Tool Weight – CT40 kg (lb) 7 (15.4)
Tool Taper type CAT40
Pull Stud type ANSI CAT40
Tool Change Time: Tool to Tool sec 3
Tool Selection type Random
Tool Access type Bi-directional
Control Unit Specifications

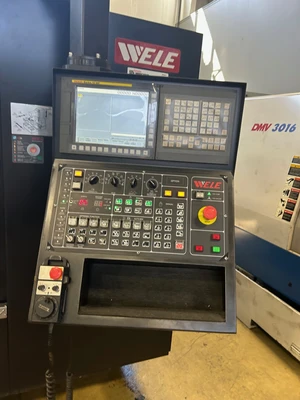

Control Type type Fanuc Oi M-D Package A
Utilities Unit Specifications
Power Required v (kVA) 3 Phase ±10% 220 (35)
Air Pressure psi 100
Power Supply Frequency Hz 50 / 60
Control Voltage volt 24
