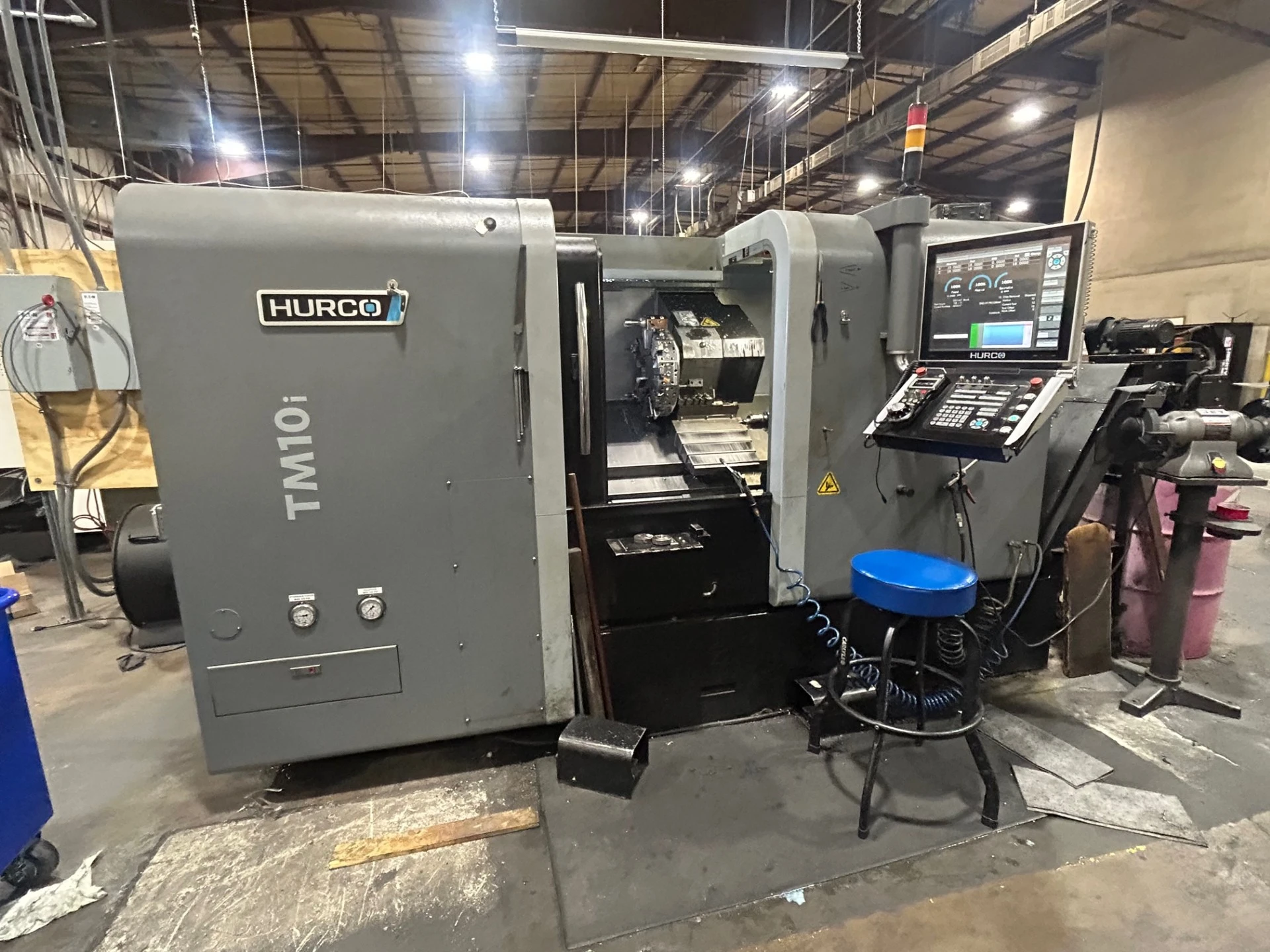

2016 Hurco TM10i CNC Lathe with Tailstock

Capacity: TM10i
X-axis Travel 9.8”
Z-axis Travel 29.5”
Distance Between Centers 27.4”
Swing Over Bed 22.9”
Swing Over Cross Slide 15.8”
Maximum Turning Diameter 17.7”
Maximum Turning Length 28.4”
Spindle: TM10i
Spindle Nose A2-8
Spindle Speed (RPM) 3,000
Spindle Motor Horsepower (1 min.) 29.7 HP
Spindle Motor Torque (1 min.) 260 ft-lbs @ 600 rpm

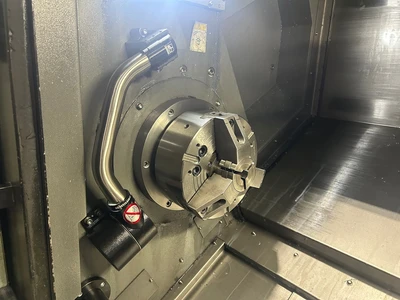

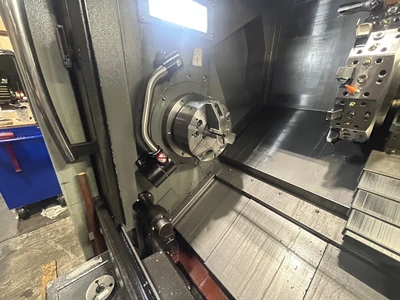

Spindle Chuck 10” Diameter
Spindle Bore Diameter 3.62”
Maximum Bar Capacity 3.07”
Motion: TM10i
X-axis Rapid Feed Rate 750 ipm
Z-axis Rapid Feed Rate 945 ipm
Least Command Increment 0.0001”
Positioning Accuracy -/+ 0.0002”
Repeatability -/+ 0.0001”

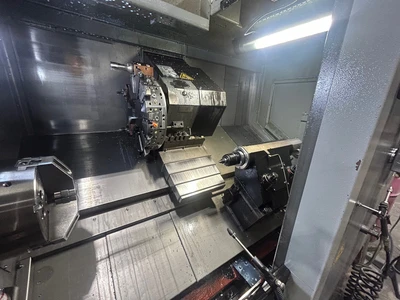

Hydraulic Tool Turret: TM10i
Number of Tool Stations 12 / Slotted
Rotation Bi-Directional
Turret Index Time (Adjacent) .5 Seconds
Turret Index Time (Furthest location) 1.5 Seconds
OD vs. ID tools Any Combination
Tool Shank Width 1.0” x 1.0”
Maximum Boring Bar Diameter 1.5”
Machine Dimensions: TM10i
Maximum Operating Dimensions (W x D x H) 153.5” x 125.5” x 85.4”
Max. Operating Dimensions with Conveyor (W x D x H) 201.6 x 125.5” x 85.4”
Machine Weight 11,028 lbs
Machine Shipping Weight 11,900 lbs.
Shipping Dimensions (W x D x H) 153.5” x 90.6” x 81.4″

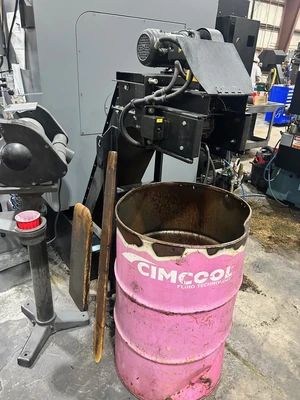

Optional Chip Conveyor Shipping Dims. 133” x 28” x 76”
Optional Chip Conveyor Shipping Weight 905 lbs.
Optional Bar Feeder Shipping Dimensions 75” x 35” x 65”
Optional Bar Feeder Shipping Weight 850 lbs.
Voltage Required 210-240 VAC / 60Hz
Power Rating / Full Load KVA 22 KVA
Air Requirements 5 CFM @ 80-100 psi
