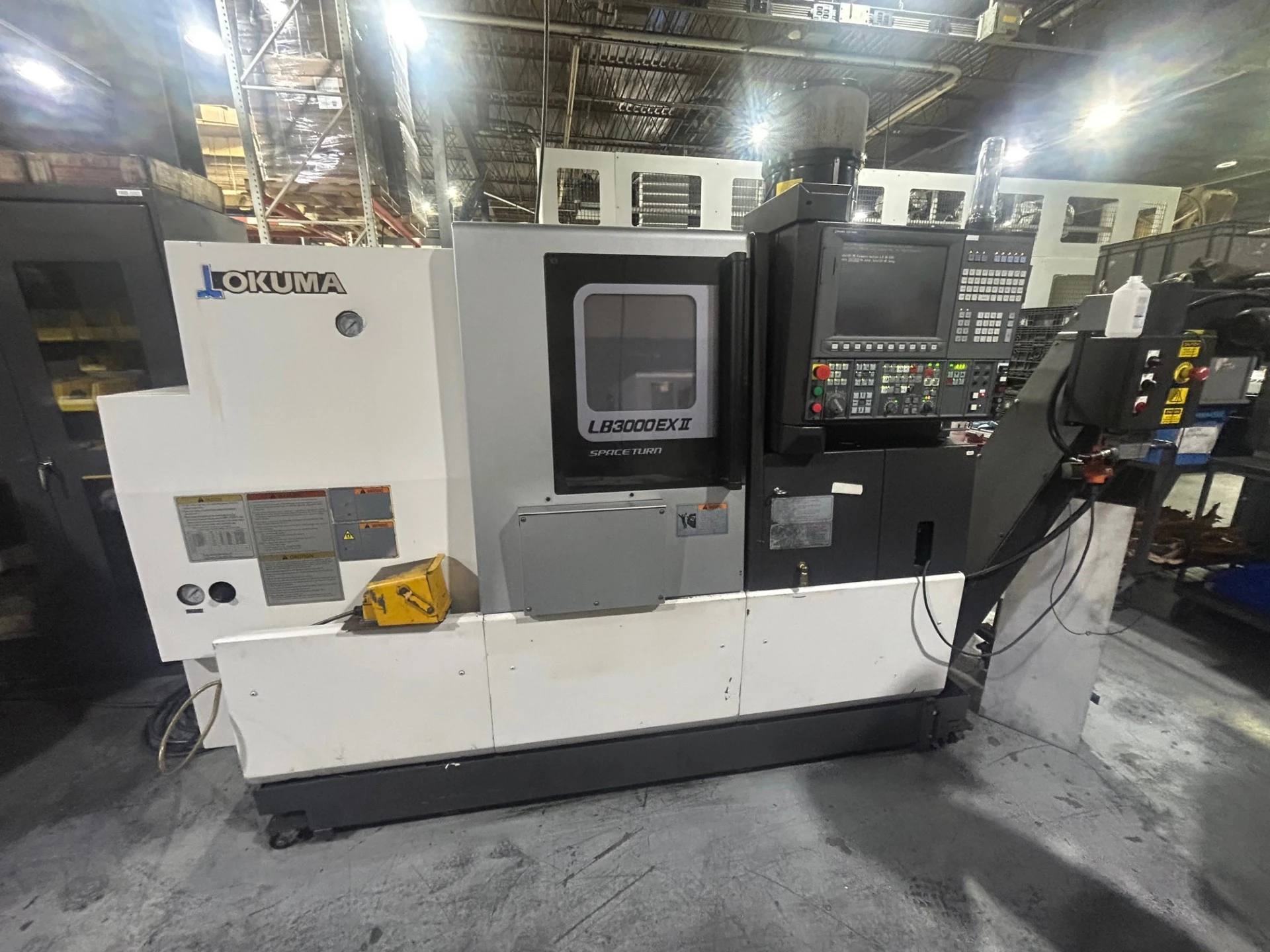

2013 OKUMA Space Turn LB3000 EX ii-M C500 CNC Lathe

Swing over bed/cover mm (in.) ø580 (22.83)
Saddle mm (in.) ø470 (18.50)
Max machining dia mm (in.) ø410 (16.14)
Max machining length mm (in.) 500 (19.69)
X axis mm (in.) 260 (39.37)
Z axis mm (in.) 565 (22.24)
Tailstock mm (in.) 515 (20.28)
Spindle nose JIS A2-6 [JIS A2-8]
Thru hole/bearing dia mm (in.) 80 [91]/120 [140]
(3.15 [3.58]/4.72 [5.51])
Spindle speeds min-1 45~5,000 [42~4,200]
Type V12
Tool shank height/ID mm (in.) 25/ø40 (1/ø1.57)
Indexing time sec. 0.1
Revolving center bore MT 5
Built-in center bore min-1 MT 4
RAPID
TRAVERSE
X, Z m/min (ipm) X: 25 Z: 30 (984, 1,181)
Main spindle kW (hp) 22/15 [30/22] (30/20 [40/30])
Axis drives kW (hp) X: 2.8, Z: 3.5 (3.8, 4.7)
Coolant pump (side/rear) kW (hp) 0.25/0.8 (0.34/1.09)
Height mm (in.) 1,839 (72.40)
Floor space mm (in.) 2,200 x 1,734
(87 x 68)
Weight kg (lb) 4,000 (8,800)
