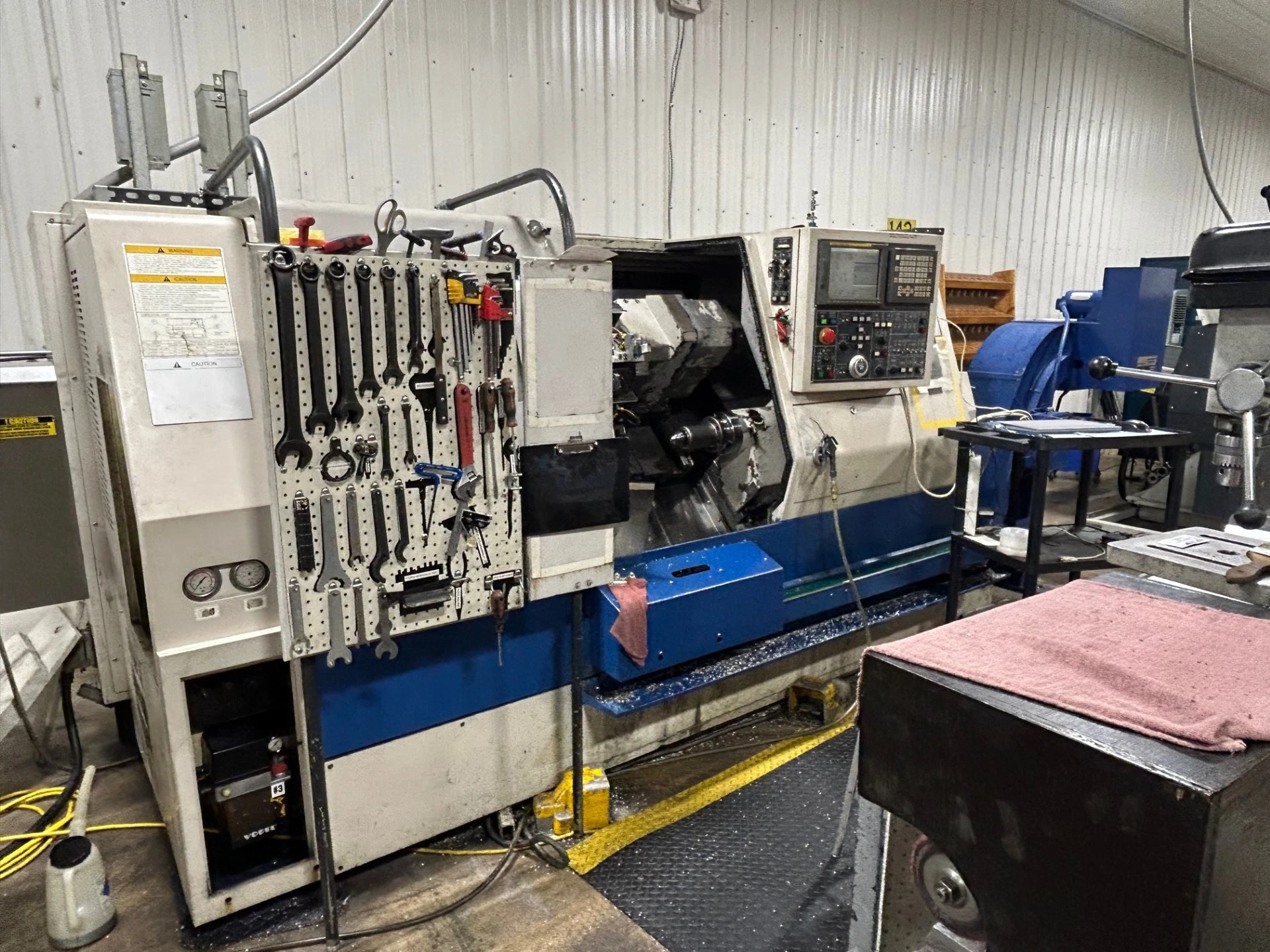

2000 Daewoo Puma 230 MS Turning Center

DAEWOO PUMA 230 Equipped With:

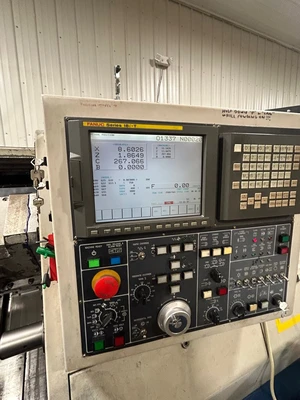

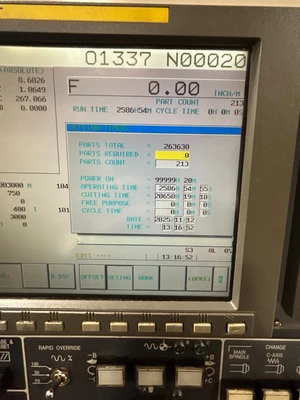

Fanuc 18iT CNC Control
A2-8 Spindle
Auto Tool Presetter
Coolant System

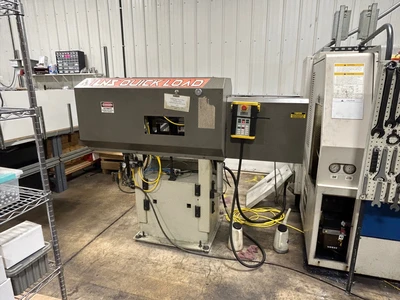

Barfeed Interface
RS-232 ports

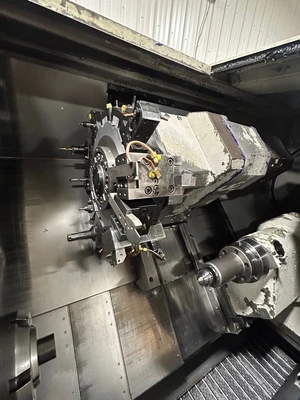

12 Station Automatic Turret
Foot Switch
Turbo Chip Conveyor
General:
Power: 35 kva, 220v / 3-Phase
Overall Dimensions: 117″ x 62″ x 72″ High
Overall Dimensions: 130″ x 62″ x 72″ High with Chip Conveyor
Weight: 9500 lbs
DAEWOO PUMA 230 Specifications:
Capacity:
Max Turning Diameter: 13.78″
Max Turning Length: 21.57″
Max Bar Capacity: 3.0″
Swing Over Bed: 21.0″
Distance Between Centers: 26.3″
X Axis Travel: 9.53″
Z Axis Travel: 22.83″
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 1000 IPM

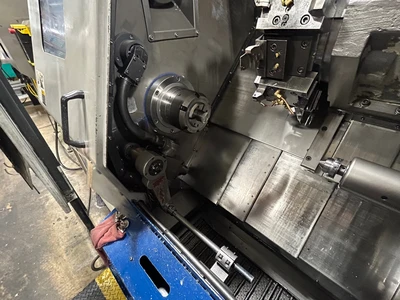

Spindle Nose: A2-8
Spindle Bore: 3.53″
Spindle Speed: 35 – 3500 RPM
Spindle Motor: 25 HP
Turret Capacity: 12 Stations
Turret Index Time: 0.5 Second
