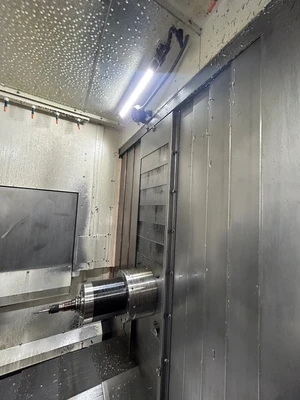

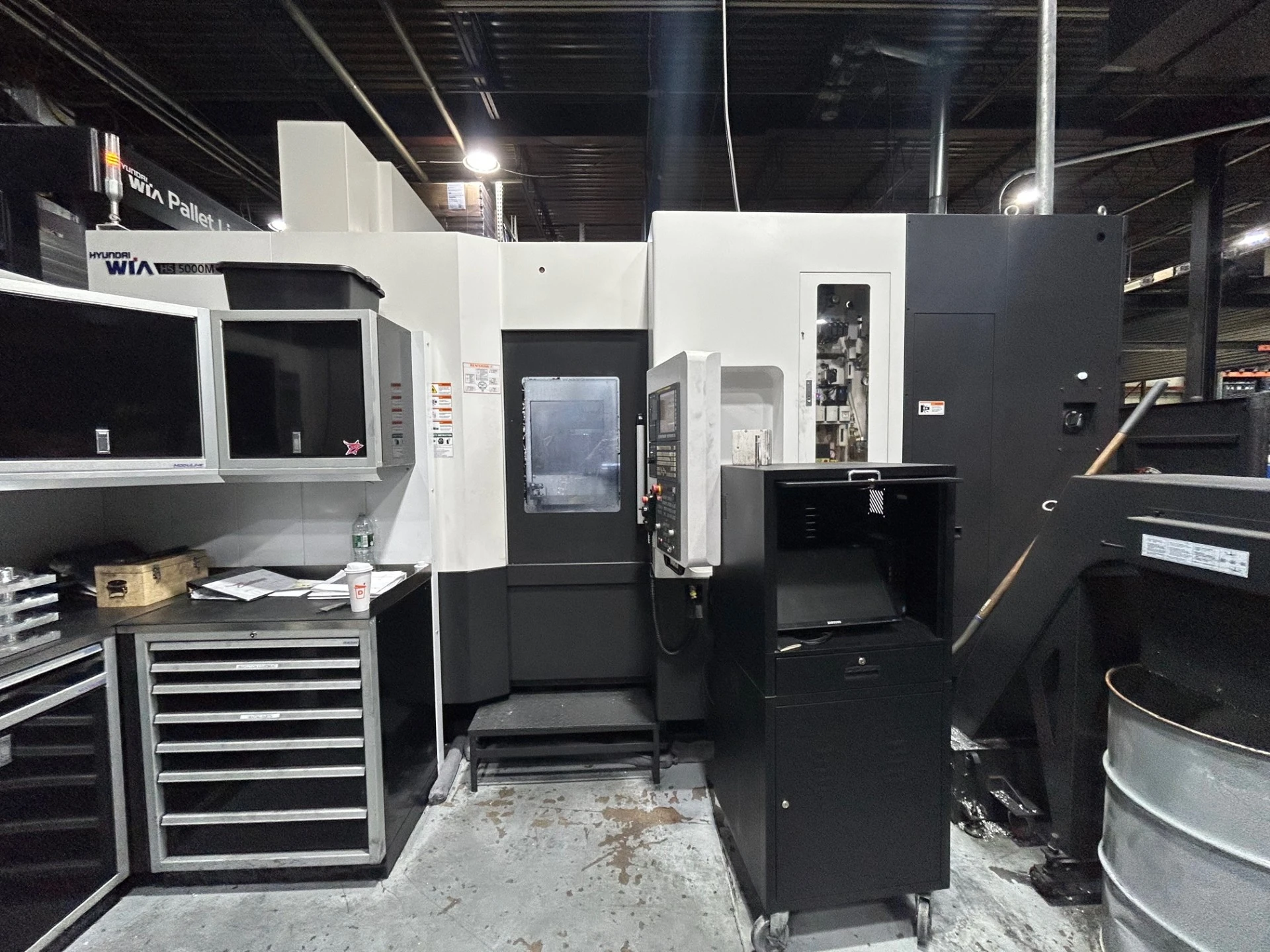

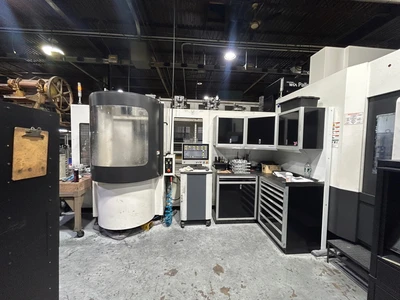

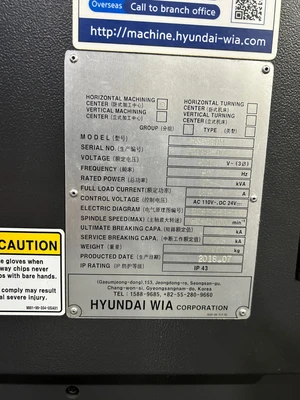

Hyundai WIA HS5000M 12 Pallet 240T Horizontal Machining Center

Equipped with:
Part Probe
Tool Probe

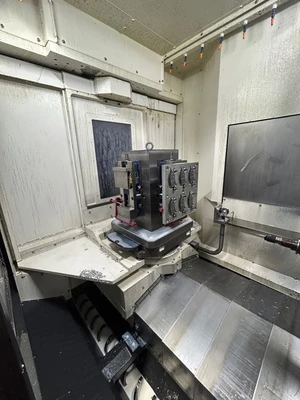

12 Position Linear Pallet System

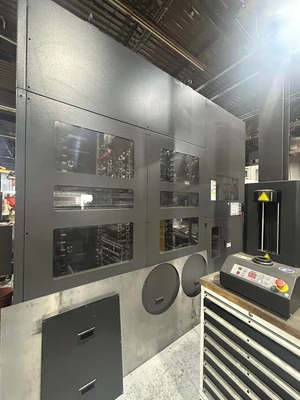

240 ATC
Table Size
19.6 in.
Magazine
240
Spindle RPM
15000
Spindle Taper
BBT40
Spindle HP
33.5
Spindle Torque
123.1 lb.ft
Rapids(X)
35.5
Rapids(Y)
27.6
Rapids(Z)
29.5
Travel(X)
33.5
Travel(Y)
27.6
Travel(Z)
29.5

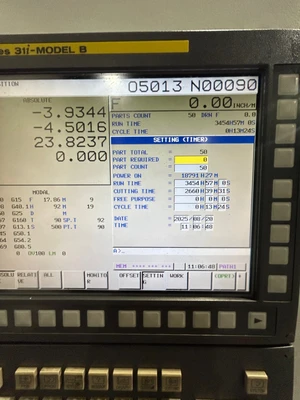

Fanuc 31i-B Control

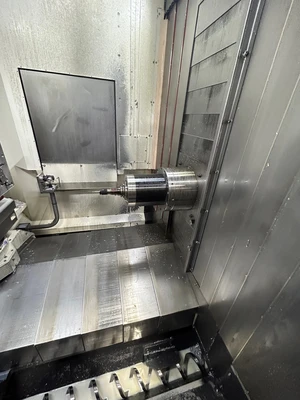

Max. 15,000 RPM Built in spindle
Powerful 49.6 HP (37 kW) spindle motor (S3 10%)
Fast 2,362 IPM (60m/min) X, Y and Z axis rapid traverse
Large linear Roller guide ways
Servo motor driven pallet changer with (2) Tapped pallets [T- slot_Opt.]
Servo motor driven Double Arm ATC 250 Tools
Big Plus Dual Contact Spindle Taper(BCV #40)
Stair Stepped Column Design
High precision spindle with angular contact ball bearings
1,000 PSI through the spindle coolant
Stable integral, step and inverse T-shape bed
High pressure air cleaning system on pallet placement
Spindle override 0% to 150% (10% Unit)
Oil jacket spindle cooler
Massive Meehanite cast iron bed
Servo motors mounted directly to the ball screws by flexible coupling
Double Pre-Tensioned Ball screws
Qualified edge locators
High precision taper cone type pallet clamping system
Pallet rotation at pallet loading station
Program and data protection key switch
Hydraulic oil cooler
Slanted telescopic way covers
Dual cabin screw conveyors in the bed
Chip Conveyor (42″ discharge height)
Flood coolant with large separate coolant tank
3 color tower signal light
Pallet Size mm(in) 500×500 (19.7″×19.7″)
Max. Load Capacity kg(lb) 800 (1,764)
Max. Machining Dia. – Ø800 (Ø31.5″)
Max. Machining Length mm(in) 980 (38.6″)
No. of Pallet EA 12
No. of Loading Station EA 1
No. of Machine Tools EA 1~7 [10]
No. of Tools EA 240
Driving Method – Servo (U/V-Axis)
Tool Selection Method – Fixed
Max. Tool Dia. mm(in) Ø75/Ø140 (Ø3″/Ø5.5″)
Max. Tool Length mm(in) 450 (17.7″)
Max. Tool Weight kg(lb) 10 (22)
