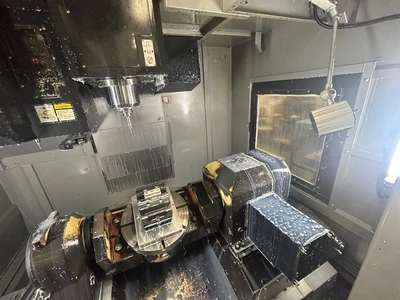

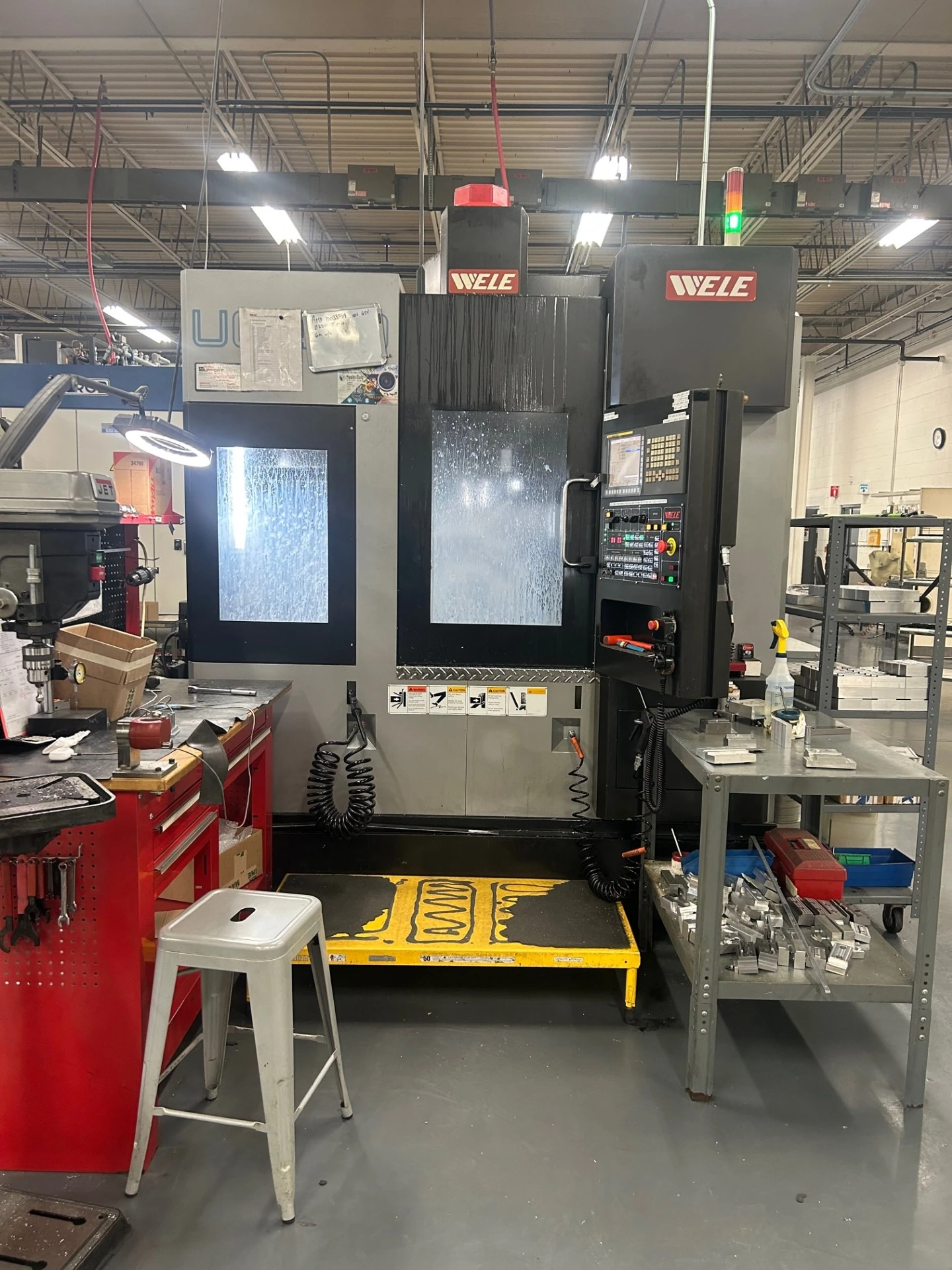

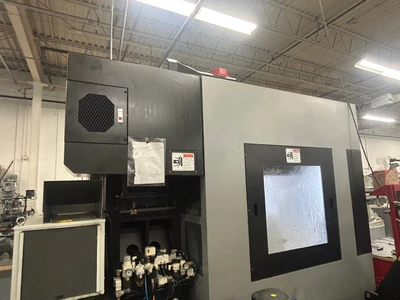

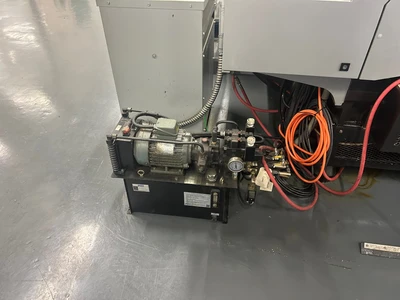

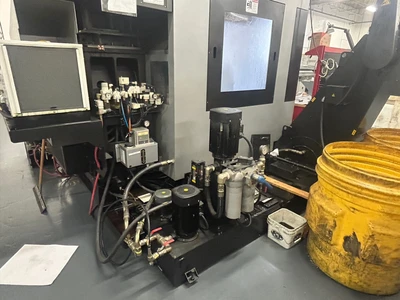

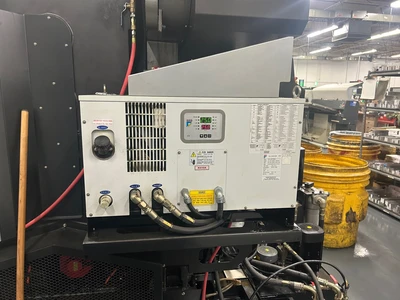

2017 Toyoda Wele UQ 400 5 Axis Trunnion Machining Center

Stroke Unit Specifications
X Axis Travel (Head Movement) mm (in) 400 (15.7)
Y Axis Travel (Gantry Movement) mm (in) 650 (25.6)
Z Axis Travel (Head Stock Movement) mm (in) 0~485 (0~19.1)
Distance from Spindle Nose to Table Top mm (in) 0 – 485 (0 – 19.1)
Guideways (X/Y/Z) 35/45/45

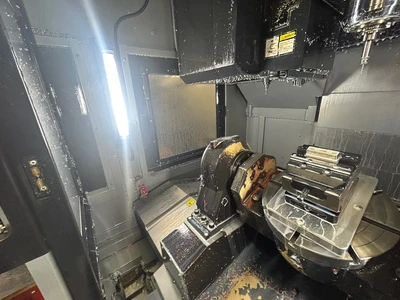

Table Unit Specifications
Table Area mm (in) 320/12.5
Table Load Capacity Kg/lbs. 200/440
Maximum Work Piece (Dia. /Length) Mm (in) 400/300 / 15.7”/11.8”
Swiveling Range of A-Axis Degree +30 / -120
Rotating Range of C-Axis Degree 360
Swiveling A-Axis / C-Axis Rotating rpm 20/25

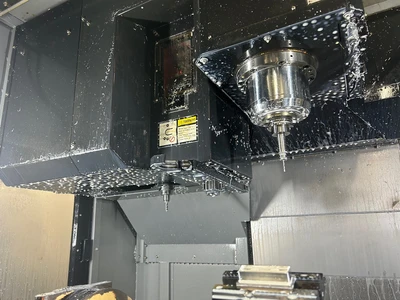

Spindle Unit Specifications
Spindle Taper* type BCV40 (CAT 40 BIG PLUS)
Spindle Motor kW (hp) 22 (30)
Spindle Speed rpm 15 ~ 15,000 min -1
Peak Spindle Output Torque Nm (ft lbs) 110/125 (81/92
Feed Rates Unit Specifications
Rapid Feedrate (X and Y Axes) m/min (ipm) 36 (1,417)
Rapid Feedrate (Z Axis) m/min (ipm) 30 (1181)
Maximum Cutting Feedrate m/min (ipm) 10 (394)
Maximum Cutting Feedrate m/min (ipm) 10 (394)
Accuracy (JIS) Unit Specifications
Positioning Accuracy X,Y & Z mm (in) ±.01 (±.0004)
Repeatability mm (in) ±.003 (±.0001)
Indexing Axial Positioning Accuracy Arc/sec A Axis 30 / C Axis 20
Indexing Axial Repeatability Arc/ sec A Axis 6 / C Axis 4.
Coolant System Unit Specifications
Coolant Tank Capacity* gal 105
Flood Coolant (Gallons per Minute)* gal 20
ATC – 40 Tool Magazine Unit Specifications
Tool Magazine Capacity – CT40 number 40
Maximum Tool Diameter / Tool in Adjacent Pocket – CT40 mm (in) 80 (3.15)
Maximum Tool Diameter / Adjacent Pocket Empty – CT40 mm (in) 125 (4.92)
Maximum Tool Length from Gage Line – CT40 mm (in) 300 (11.8)
Maximum Tool Weight – CT40 kg (lb) 7 (15.4)
Tool Taper type CAT40
Pull Stud type ANSI CAT40
Tool Change Time: Tool to Tool sec 3
Tool Selection type Random
Tool Access type Bi-directional

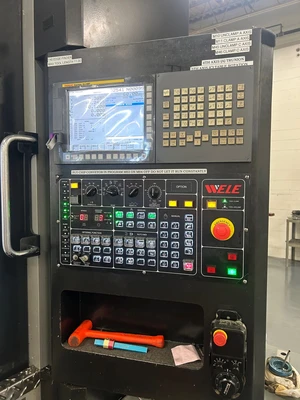

Control Unit Specifications

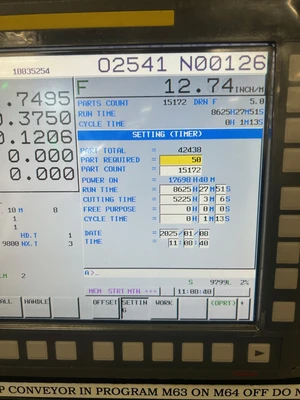

Control Type type Fanuc Oi M-F
Utilities Unit Specifications
Power Required V (kVA) 3 Phase ±10% 220 (40)
Air Pressure psi 100
Power Supply Frequency Hz 50 / 60
Dimensions* Unit Specifications
Length mm (in) 2950 (116.1)
Width mm (in) 2,350 (92.5)
Height mm (in) 3.140 (123.6)
Weight kg (lb) 6,500 (14,300)
