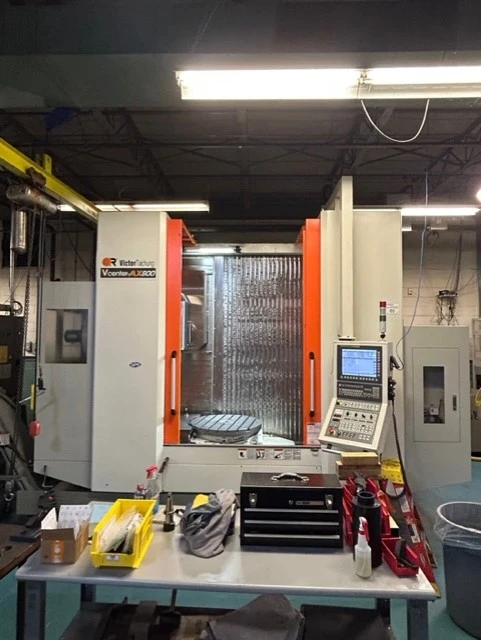

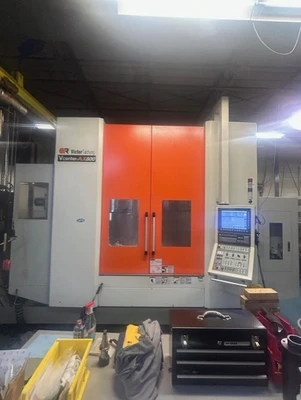

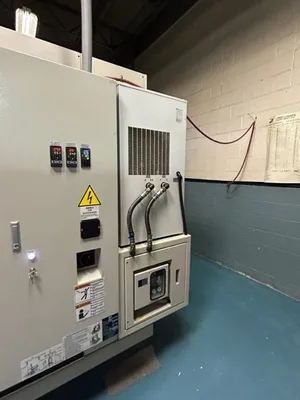

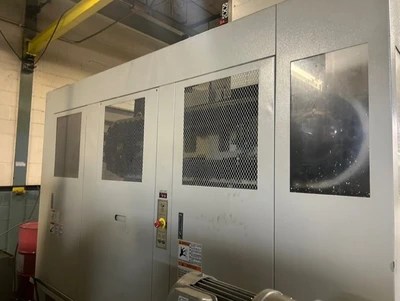

2016 Victor Taichung Fortune AX-800 5 Axis Vertical Machining Center

Item
Units
Vcenter-AX800
Travel
X axis travel
mm
1600
Y axis travel
mm
700
Z axis travel
mm
600 (vertical milling)
1000 (horizontal milling)
Distance
Spindle center to column
mm
890 (vertical milling)
Spindle nose to table surface
mm
50~650 (vertical milling)
Spindle center line to table surface
mm
0 ~ 1000 (horizontal milling)
Height from table surface to floor
mm
930

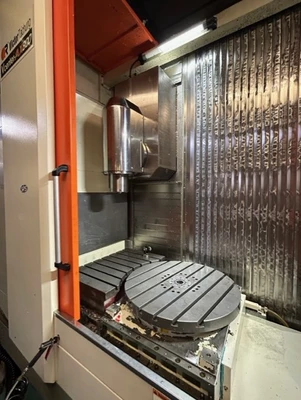

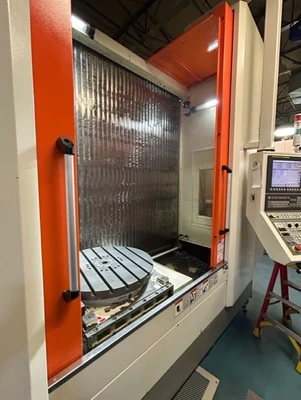

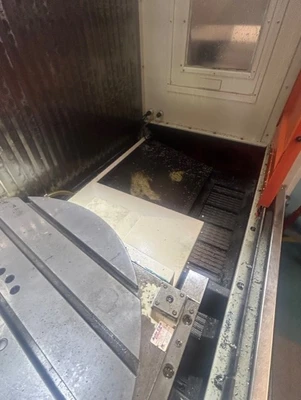

Table
Table work area
mm
1250 x 800
Dimension of T-slot
mm
7 x 18H7 x 100
Max. table load (rotary)
kg
1200
Max. table load (fixed + rotary)
kg
2400
Spindle
Spindle taper
CAT-40
Spindle motor – cont./30/10min
kW
15/18.5/22
Spindle speed
rpm
15000
Linear axis feed
Rapid feed rate – X/Y/Z
m/min
30 / 30 / 30
Axis feed motor – X/Y/Z
kW
9 / 7 / 9
Cutting feedrate by table
m/min
10 (opt. 15, 30)
Linear guide width (X/Y/Z)
mm
45 / 55 / 55
Ballscrewdia x pitch (X/Y/Z)
mm
55×12(X) / 45×12(Y) / 50×12(Z)
Rotary feed rate
Tilting (swivel) / rotary angles
deg.
-30 ~ 110 / 360
Rotary rapid feed rate – A/C or B/C
rpm
20 / 25
Axis feed motor – A/C or B/C
kW
4 / 4
Continuous indexing resolution
deg
0.001 (roller cam drive)
Continuous torque output – A/C or B/C
N-m
1580 / 2640
Braked torque (clamping) – A/C or B/C
N-m
1710 (1˚ by coupling),
960 / 3433 (by brake)
Tools
Max. tool length
mm
300
Max. tool weight
kg
7
Magazine capacity
40 (opt. 60)
Max. tool diameter (without adjacent tools)
mm
76 (125)
Tool exchange time
sec.
2.8 (T-T), 7.7 (C-C)
Pull stud angle
deg.
15 (JIS 40P)
Tool selection method
Random

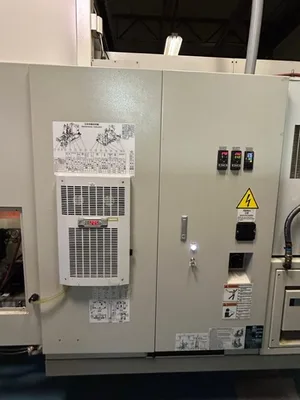

Machine
Power requirement
kVA
44 (excl. CTS) Fanuc
Min/Max. air pressure
kg/cm2
5.5 ~ 6.5
Coolant tank capacity
L.
450

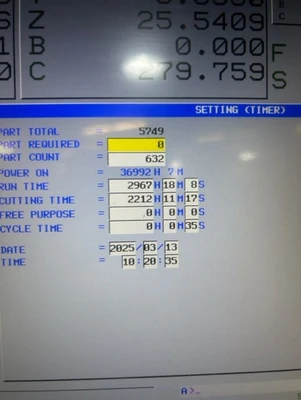

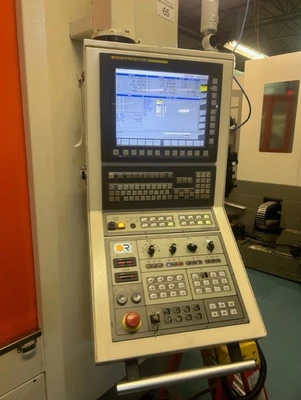

Std. NC controller
Fanuc 31i B5 15″ Screen
Floor space requirement (with conveyor)
mm
5575 x 4321
Max. machine height
mm
3433
Machine weight
kg
18000

Fanuc 31i-B5 Full 5-axis control
15” Screen Upgrade
60 Tool Magazine Cat 40 Big Plus
Table Shower System

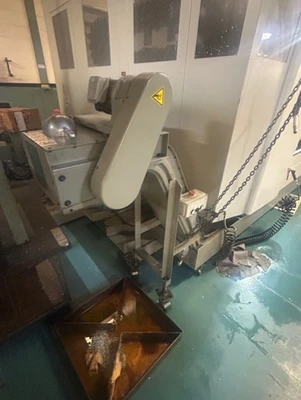

Upgrade to High Lift Chip Conveyor (Hinge belt)
CTS (MTR3-23,275 PSI) with Halex duplex filter
Renishaw Probe Measuring (RMP60 /RTS)
Renishaw Inspection Plus Software
Angular Scales on B/C Axis
Linear Scales (Built In) X/Y/Z Axis
