USED LANDIS 3L
Overview
Specs
ET Stock Nos. ET-5481 through ET-5484

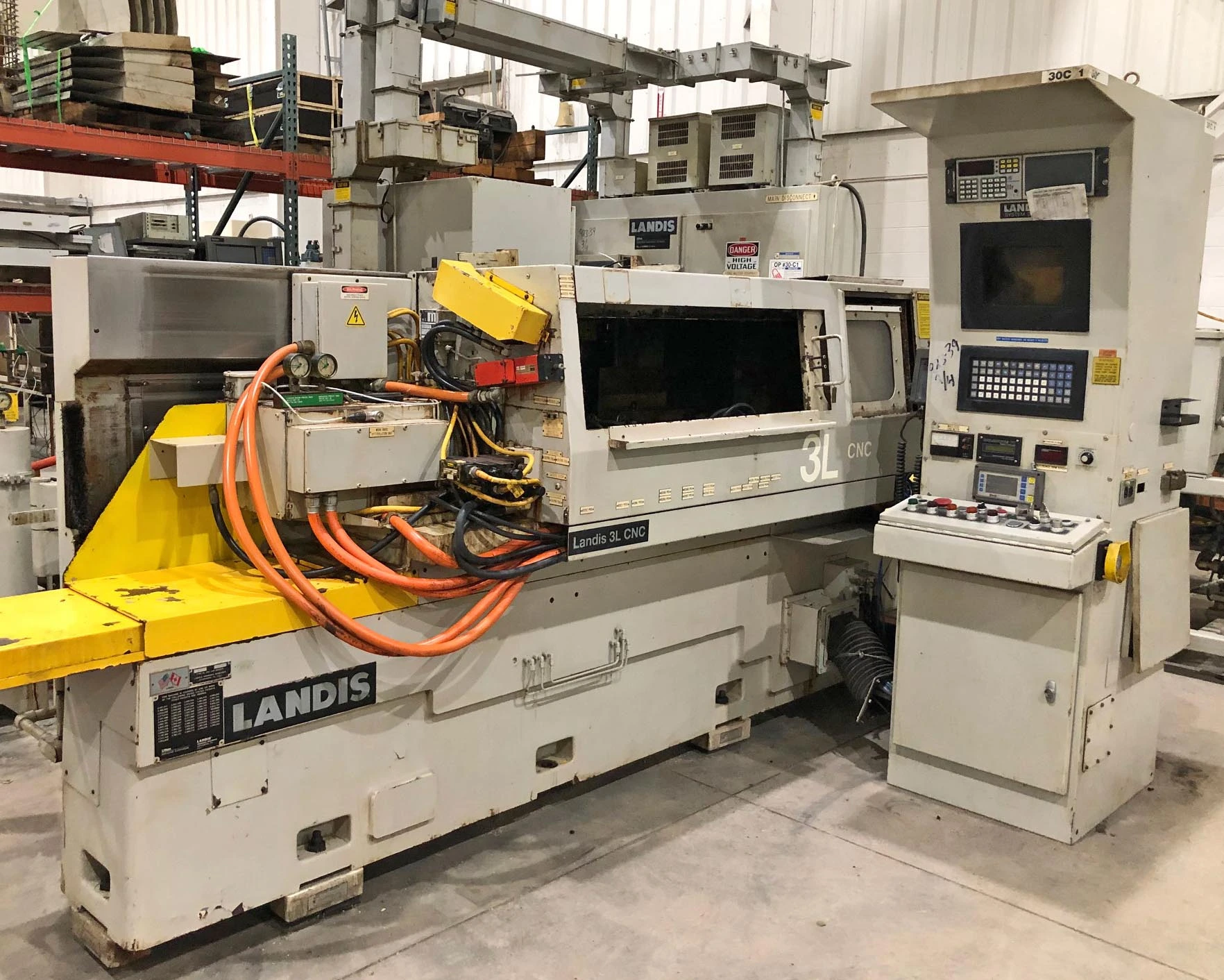

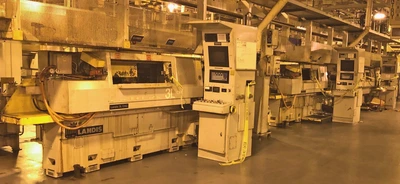

(4) Landis Type 3L 10″ X 40″ CNC CBN Cam Lobe Grinding Machines
Year of Manufacture: 1996
Make: Landis
Model: 3L
Landis System 3200 CNC Control System
CBN Technology Grinding Wheel
Maximum work swing: 10″ (250 mm)
Nominal distance between work centers: 40″ (1,000 mm)
Maximum work diameter ground (new wheel): 5.5″ (150 mm)
Grinding wheel diameter: 18″ (458 mm)
Maximum work weight between centers: 110 lbs. (50 kgs)
Work carriage traverse speed: 0-400 in/min. (0-10 mm/min)
Grinding wheel maximum width (solid): 2″ (50 mm)
Three wheel feed rates up to: 2.0 in/sec. (50 mm/sec)
Footstock center: No. 3 Morse
Headstock center: No. 3 Morse
Footstock center hydraulic power retraction: 1.1″ (28 mm)
Headstock work speeds infinitely variable: 0-150 rpm
Headstock rotation speed change: + 50 X – 50 X
Grinding Wheel drive: 40.2 HP Integral Spindle Motor, Variable speed to give constant surface speed.
Machine equipped with:
Electrics: 480 volt, 3 phase, 60 cycle
Rotary Diamond Wheel Dresser, Workhead Mounted
3 table mounted Arobotech steady rests
Machine weight: 24,000 lbs.
Location: Wixom, MI, USA
