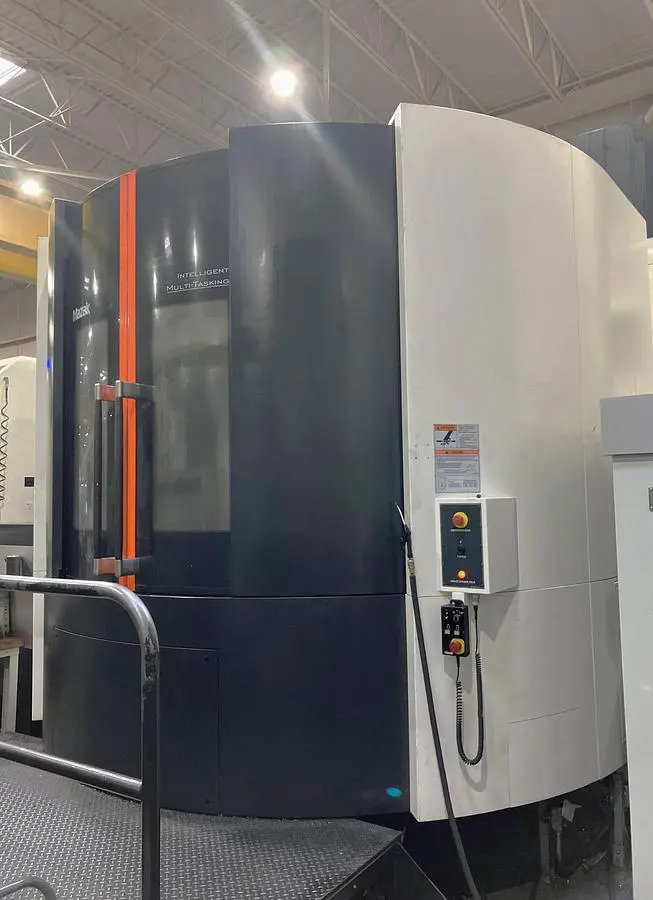

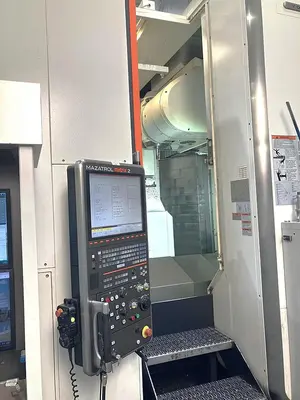

USED 2014 MAZAK VORTEX E-1060V/8

Simultaneous 5 Axis Machining

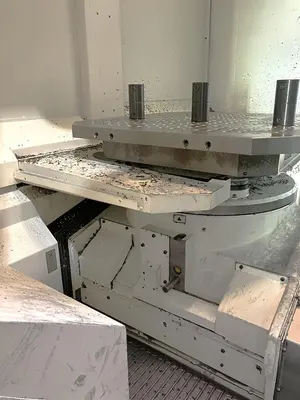

Built in 4th Axis Rotary Table with .0001 Degree Increment

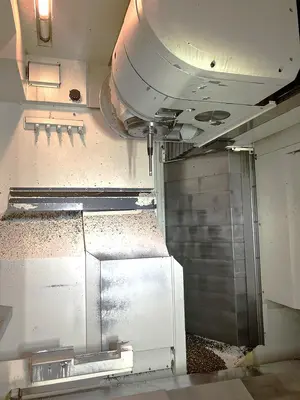

Contouring B Axis Head with -30 Degree to 120 Degree Movement

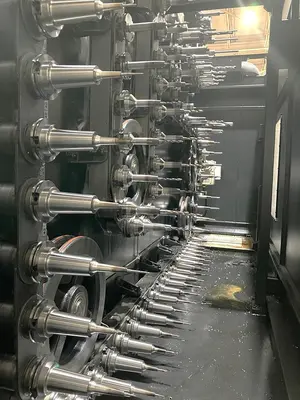

120 Station Tool Changer
(2) 39.4" Pallet Changer System
10,000 RPM Milling Spindle

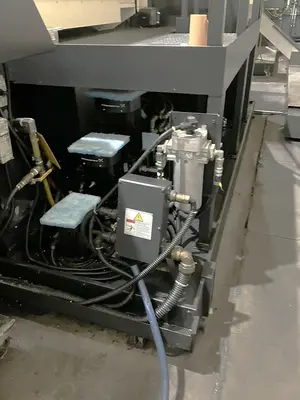

1,000 PSI High Pressure Mazak Superflow V8M Coolant
Renishaw OMP 60 Probe
Renishaw NC4 Laser Tool Measurement Probing
Renishaw Advanced Probe Macros / Inspection Plus
Chip Conveyor
Coolant Washdown at Operator and Pallet Load Stations
Remote Jog Handle
High Smoothing Control
Power Indexing at Work Load Station
Auto Power On/Off/Warm Up
8MB Program Storage
Prep for LAN and Modem
Backround Toolpath Check
Tool Breakage Detection
Adaptive Feedrate Control
Tool Life Monitoring
3D Coordinate Rotation G68.2
Tool Tip Point Control 5 - Axis
Simultaneous 5 Axis Tool Radius Compensation
G00 Slope Constant
2D Software Shape Continuous
Inch/Metric Conversion
Cylindrical G07
Polar Coordinate G12
Mazacc-3D High Speed Software Package
Mill Spindle Synchronous Tapping
Spindle Air Blow
EIA Simultaneous 5 Axis
Additional EIA/ISO Functions

**Total Cutting Hours 30,742**

The 2014 Mazak Vortex e-1060V/8 is a robust 5-axis milling machine designed for heavy-duty operations. It features a large built-in rotary table and a tilting B-axis head, providing extensive versatility for complex machining tasks. Equipped with the Mazatrol Matrix 2 control, this machine offers precision with X, Y, and Z-axis travels of 73.82", 41.73", and 52.95" respectively. The B-axis allows for full contouring from -30 to +120 degrees, while the C-axis enables 360-degree rotation in fine increments.

The machine supports heavy workpieces with its two 39.4" diameter pallets, capable of handling loads up to 4,784 lbs. Its CAT 50 spindle taper delivers speeds of up to 10,000 RPM powered by a strong 50 HP motor, ensuring efficient material removal for high-demand tasks. The 120-position automatic tool changer facilitates swift tool changes, optimizing uptime and productivity.

With dimensions of 309"x210"x174" and a weight of 85,800 lbs, this machine is built for sizable industrial environments. Its rapid traverse rates of 1653 IPM for the X, Y, Z axes and 18 RPM/30 RPM for the C/B axes ensure fast and precise operations. The Mazak Vortex e-1060V/8 stands as a reliable choice for manufacturers seeking a durable and flexible 5-axis solution.

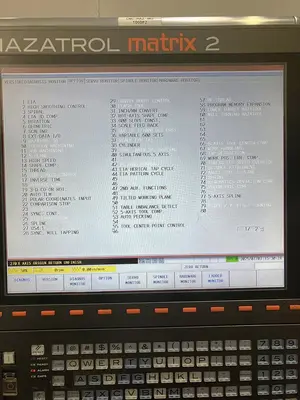

Machine Control: Mazatrol Matrix 2

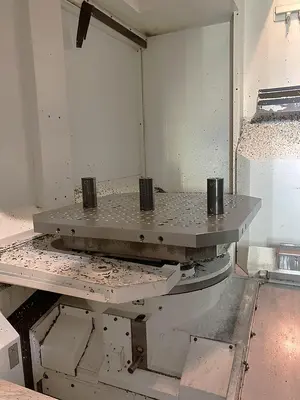

Table size: (2) Pallets 39.4" Dia. Round
Pallet load capacity: 4,784 lbs.
Maximum Workpiece Dimensions: 49.21" x 49.21"
X-axis travel: 73.82"
Y-axis travel: 41.73"
Z-axis travel: 52.95"
B-axis travel: 150 Degrees Full Contouring (-30 Deg to +120 Deg)
C-axis travel: 360 Deg. in .0001 Increments
Spindle taper: CAT 50
Milling Spindle Speed: 10,000 RPM
Milling Spindle Motor: 50 HP
Number of tools: 120 Position ATC
Maximum Tool Diameter / Length / Weight: 10.24" / 19.69" / 66 lbs.
Rapid traverse rates (c/b): 18 RPM / 30 RPM
Rapid traverse rates (x,y,z): 1653 IPM
Machine dimensions: 309"x210"x174"
Machine weight: 85,800 lbs.
