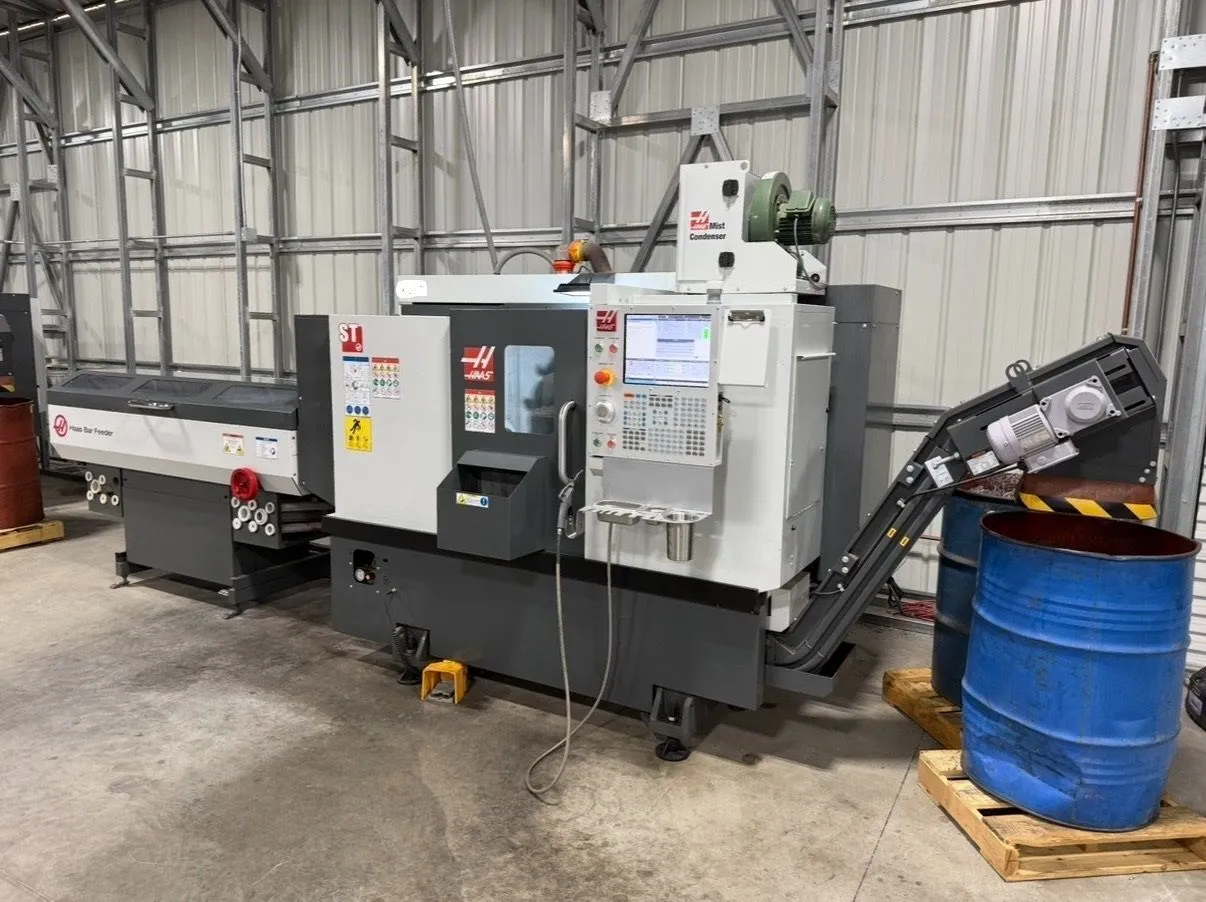

2023 Haas ST-15 CNC Chucking Lathe with Barfeeder, 8" 3-Jaw Chuck, Automatic Tool Presetter, Parts Catcher, Coolant Mist Condenser, Chip Conveyor, Low Hours.
| Swing | 16.5" | 419.1 mm |
| Machining Length | 16" | 406.4 mm |
| # Axis | 2 | 2 |
| Chuck Size | 8.3" | 210.82 mm |
| Bar Capacity | 2.5" | 63.5 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turning Dia | 12" | 304.8 mm |
| Tailstock | No | No |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Haas CNC Control) | CNC (Haas CNC Control) |
| Dimensions | 126" x 70.0" x 81.0" High | 126" x 70.0" x 81.0" High |
| Weight | 7900 LBS | 7900 LBS |
Max Swing Over Bed..................16.5"
Max Turning Diameter................12.0"
Max Turning Length..................16.0"
X-Axis Travel.......................7.88"
Z-Axis Travel.......................16.00"
Spindle Motor.......................20 HP
Spindle Nose........................A2-6
Spindle Bore........................3.5"
Max Bar Capacity....................2.5"
Spindle Speed.......................4000 RPM
Rapid Traverse Rate.................1200 IPM
Turret Capacity.....................12 Stations
Tailstock Taper.....................MT-3
Hydraulic Quill Travel..............3.8"
Machine Dimensions..................126" x 70.0" x 81.0" High
Machine Weight......................7,900 lbs Approx.
Haas CNC Control
Automatic Tool Presetter System
Parts Catcher System
Coolant Mist Condenser
Chip Conveyor
Haas Barfeed
HOURS:
Power On Time..........2,911
Cycle Start Time.......873
Feed Cutting Time......682
**NO TAILSTOCK**
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
