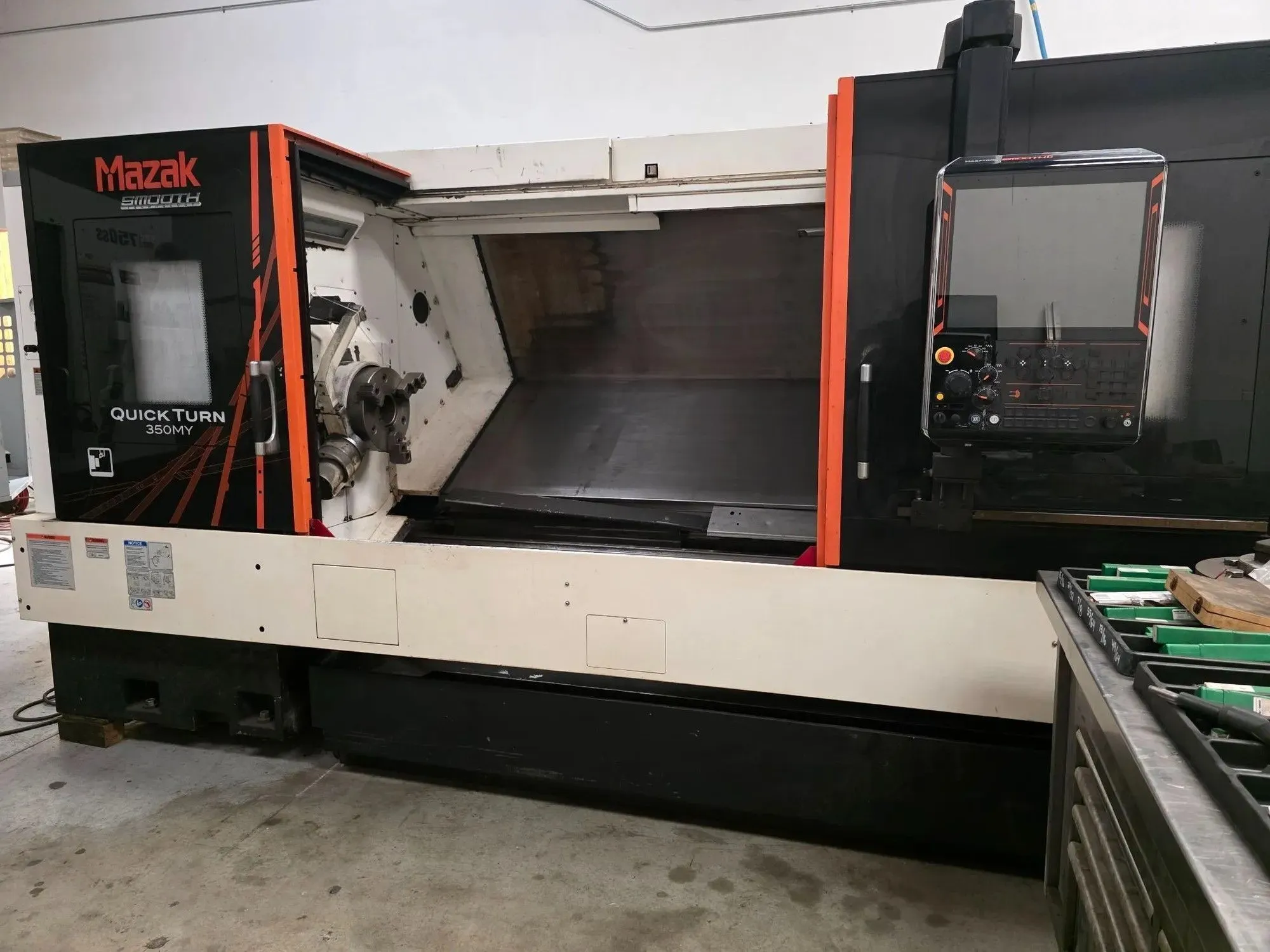

USED 2020 MAZAK QTN-350-MY
Overview
Description
2020 Mazak QTN-350MY/2000 with Smooth Control, 12" Chuck, Tool Eye, Steadyrest, Tailstock, Live Tooling, Y-Axis, Superflow HP Coolant, Lots of Tooling Included
Specifications
| Swing | 29.5" | 749.3 mm |
|---|---|---|
| Machining Length | 82.92" | 2,106.2 mm |
| Chuck Size | 12" | 304.8 mm |
| Bar Capacity | 4" | 101.6 mm |
| Power | 40 hp | 29.8 kW |
| Max RPM | 3,300 RPM | 3,300 RPM |
| Turning Dia | 16.5" | 419.1 mm |
| Tailstock | Yes | Yes |
| Live Tooling | Yes | Yes |
| Sub Spindle | No | No |
| Control | CNC (Mazatrol Smooth X) | CNC (Mazatrol Smooth X) |
| Weight | 24,000 LBS | 24,000 LBS |
Maximum Swing...........................29.5"
Max Turning Diameter....................16.5"
Machining Length........................82.92"
X-Axis Travel...........................10.13"
Y-Axis Travel...........................6.0"
Z-Axis Travel...........................83.25"
Spindle Motor...........................40 HP
Main Spindle Bore.......................4.4"
Max Bar Capacity........................4.0"
Spindle Speed...........................3,000 RPM
Turret Tool Positions...................12
Rotary Tool Spindle Speed...............4,000 RPM
Rotary Tool Motor.......................10 HP
Tailstock Quill Diameter................3.94"
Tailstock Taper.........................MT 5
Machine Weight..........................24,000 LBS
Equipped With
Smooth CNC Control
12" Chuck
Tool Eye
Live Tooling
Y-Axis
Steady Rest
Tailstock
Mazak Superflow High Pressure Coolant
Lots of Tooling
Chip Conveyor
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
