NEW SOITAAB OMNIATECH
Overview

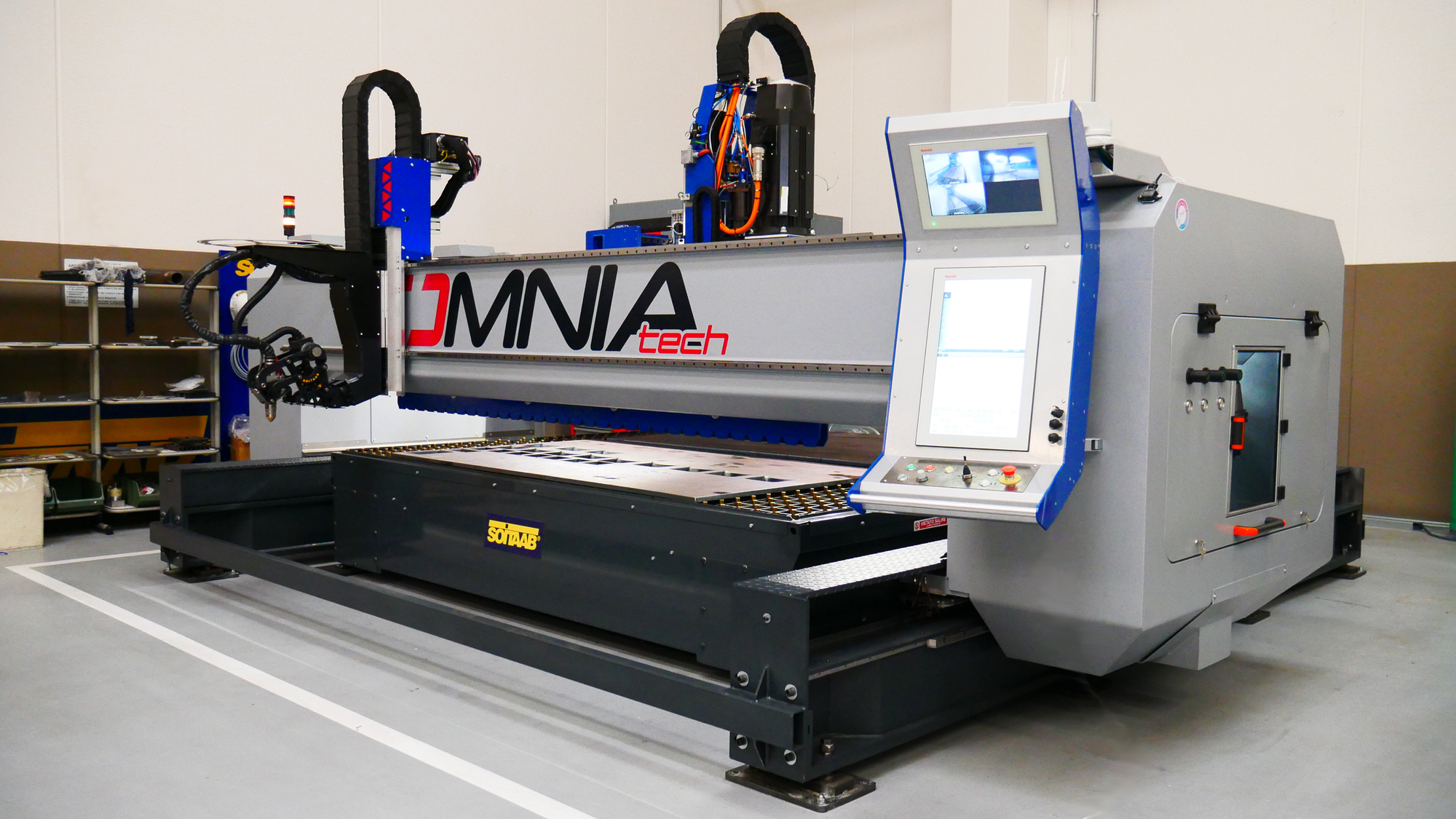

Introducing OMNIAtech !!
OMNIAtech is the latest innovation from Soitaab for all-in-one Multi-purpose heavy fabrication systems. The perfect combination of multi-function technologies, this versatile machine offers, plasma cutting, plasma bevel cutting, oxy-fuel cutting, drilling, tapping, milling, countersinking, and a wide range of marking and scribing.
Sophisticated CNC controls and dedicated software allows the system to work in perfect harmony seamlessly integrating every process through an intuitive and easy to use operator interface. The rigid double beam construction completely protects all linear guides and moving parts.
Accessories: Markers (micro dot, punching, plasma, and powder marking) | Drilling head with automatic tool changer | Graphic cut simulation with complete tool path | Import DXF and DWG les | Simple and intuitive graphical control menu | Sheet alignment, rotation, and scale programs | Remote diagnostics and service | Automatic damper fume extraction
Main Features
• Plasma Cutting
• Plasma Bevel Cutting
• Oxy-fuel Cutting
• Drilling
• Tapping
• Hole & Surface Milling
• Countersinking
• Tool Changers
• Marking - wide variety
Specs
USEFUL WORKING WIDTH: 6.5 FT. - 8 FT. - 10 FT - 11.5 FT. AND MORE
USEFUL WORKING LENGTH: 20 FT. - 40 FT. - 80 FT. AND MORE
MAXIMUM TRAVEL SPEED (X & Y) (Z): 131 FT./MIN X & Y - 33 FT./MIN Z
MACHINING TOOLS: 13.75 IN. (350 MM)
AUXILIARY AXIS FOR MACHINING TOOL (Y2)14 IN. (ISO 50)
CONICAL TOOL CONNECTIONFROM 5 TO 65 MM (1/5 IN. TO 2 1/2 IN)
DRILLING DIAMETER RANGE: FROM M6 TO M30 WITH DIRECT TOOL
TAPPING RANGE: HIGHER RANGE W/ INTERPOLATED AXIS (X,Y2)
MAXIMUM DRILLING THICKNESS: 5 IN (120MM)
MAX # OF PLASMA HEADS (BEVEL INCLUDED): 2
MAX # OXY-FUEL CARRIAGES: UP TO 6
COUTERSINKING: AVAILABLE
HOLE MILLING: AVAILABLE
SURFACE MILLING: AVAILABLE
MARKING: WIDE RANGE AVAILABLE
SPINDLE POWER:30 KW
SPINDLE ROTATION: FROM 100 TO 7000 RPM
SPINDLE TORQUE:150 NM
TOOL CHANGER (# OF STATIONS): STANDARD - 8 POSITIONS OPTIONAL UP TO 20
TOOL COOLING/LUBRICATION: INTERNAL AND EXTERNAL CNC CONTROLLED
CHIPS EXHAUSTING DEVICE: OPTIONAL
MOTION & DRIVES: BOSCH REXROTH
