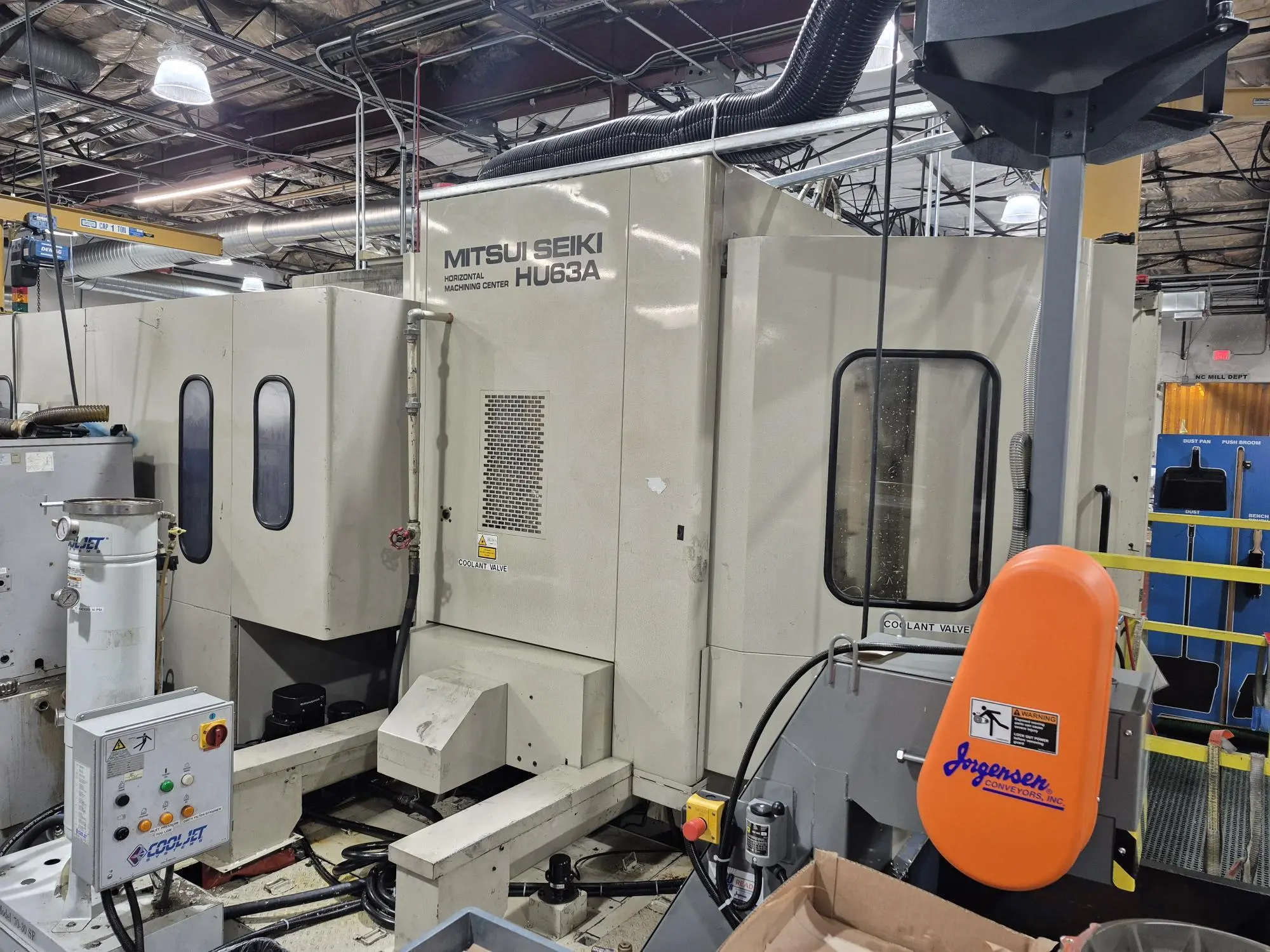

Mitsui Seiki HU63A HMC with Fanuc 16-M Control, 6,000 RPM, 50 Taper Spindle, 1 Degree 4th Axis, CoolJet HP Coolant,120 ATC. Machine under Power for Inspection.
| X | 35.43" | 899.92 mm |
| Y | 31.5" | 800.1 mm |
| Z | 31.5" | 800.1 mm |
| Power | 40 hp | 29.8 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 120 | 120 |
| Taper | 50 | 50 |
| Pallet-W | 24.8" | 629.92 mm |
| Pallet-L | 24.8" | 629.92 mm |
| # Axis | 4 | 4 |
| Control | CNC (Fanuc 16-M Control) | CNC (Fanuc 16-M Control) |
| Weight | 39,600 LBS | 39,600 LBS |
NUMBER OF PALLETS................2
PALLET SIZE......................24.80"
X-AXIS TRAVEL....................35.43"
Y-AXIS TRAVEL....................31.49"
Z-AXIS TRAVEL....................31.49"
TABLE INDEXING...................1 Degree
SPINDLE SPEED RANGE..............6,000 RPM
SPINDLE TAPER....................50
SPINDLE MOTOR....................25 HP
AUTO TOOL CHANGE.................60 ATC
MACHINE WEIGHT...................39,600 LBS
FANUC 16-M CNC CONTROL
GLASS SCALES
COOLANT THROUGH SPINDLE
1 DEGREE 4TH AXIS
CHIP CONVEYOR
COOLJET HIGH PRESSURE COOLANT
TOOL BREAKAGE DETECTION
60 ATC
CHIP CONVEYOR
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
