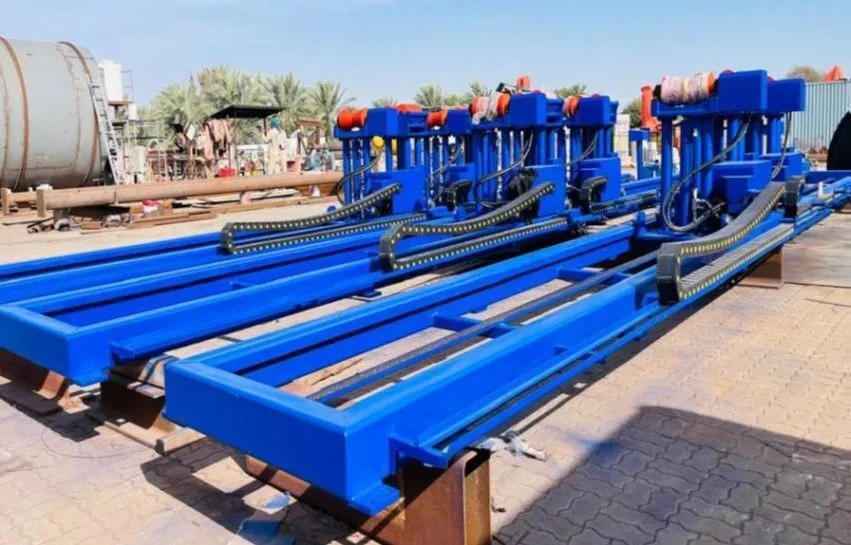

NEW MEGABORE Drill Pipe Loading

MEGABORE PIPE HANDLING SYSTEM
Model: TR5T Loading capacity: 5 Ton Specification: 11.5 meter long

The TR model features two motorized trolleys, each with a vibration-dampening steady rest and feeding roller. A
dampening swing mechanism stabilizes drill pipes, protecting the lathes. Chain and sprocket systems enable trolley
movement to handle different length of drill pipes, hydraulic pistons adjust vertical height. Hydraulic motors power
the rollers feeding pipe in and out of lathe, with all functions controlled via a wired remote control panel.

SYSTEM INCLUDED IN TR5T TROLLEY TYPE PIPE HANDLER UNIT
1. Pipe feeder with PU Coated V Roller with hydraulic drive = 2 Set
2. Main Pipe support steady with vibration damper rollers = 2 Set
3. Pipe feeder (Item 1) & Support steady (item 2) in chain driven trolley = 2 Set
4. Locking system for travelling trolley = 2 Set
5. Hydraulic Power Pack System = 1 Set
6. Fully Electric Control Panel for portability & ease of use. = 1 Set
7. In built fail-safe to ensure pipe remains in position during power failure = 1 Set
8. Hoses and fittings for steady and feeding system = 1 Set
9. Cable drag chain to secure electric wiring & hydraulic hoses = 2 Set
9. Heavy Duty base frame with levelling bolts = 1 Set
