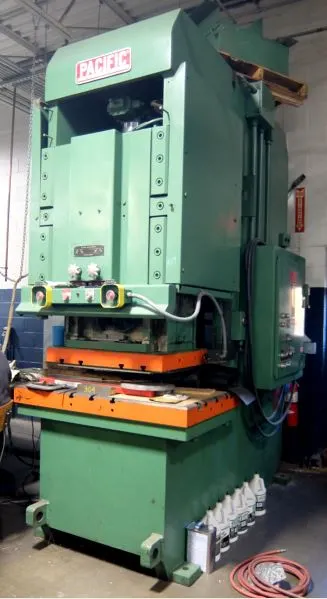

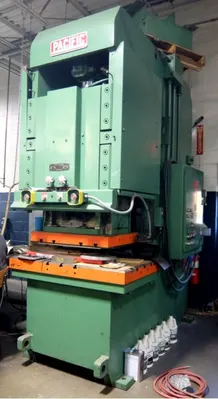

Pacific 150 Ton Press Former 150PF-OBS, New 1980

Adjustable
7-1/4" Shut Height, 16-1/2" Throat, 31" Between Side
30" x 50" Tee-slotted Bed, 24" x 34" Tee-slotted Upper Platen,
Auto-lubrication, New 1980.

Capacity……………………………………………
150 tons
Stroke
(max.)…………………………………………..... 10"
Bed
size (FB x LR)……………………………….. 30" x 50"
Upper
platen (FB x LR)…………………………... 24" x 34"
Open
height…………………………………………. 17-1/4"
Shut
height………………………………………........ 7-1/4"
Throat
depth………………………………………… 16-1/2"
Distance
between side frames…………………………… 31"
Die
weight (max.)………………………………….. 1,500 lb.
Main
pump motor…………………………………….. 30 Hp
Electrics…………………………….....
1Ph/60/460v/42 FLA
Dimensions
(approx.)……………… 59"W x 100"D x 143"H
Weight
(approx.)………………………………….. 35,000 lb.

Adjustable
stroke
Dual
Palm buttons
Tee-slotted
bed and upper platen
Run
modes;
  Inch
  Single stroke – manual return
  Single stroke – auto return
Separate
continuous run mode switch
Lincoln
"Centro-Matic" lube system
