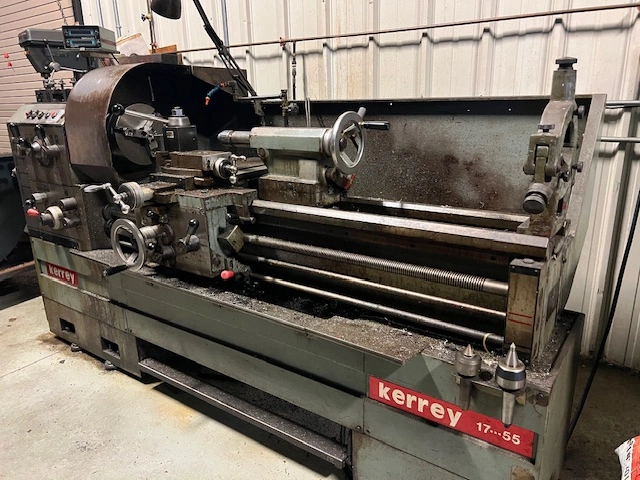

Kerrey 17" x 55" Gap Bed Engine Lathe
Overview
31 - 1,520 RPM, Camlock Spindle Nose, 2" Hole in
In/Met Threading, 10" 3-Jaw Chuck, 5C Lever Collet Closer,
Steady Rest, AcuRite DRO,
Coolant, Foot Brake, Chuck Guard, Rear Splash Guard,
VIDEO
AVAILABLE.
Specs
Swing over bed…………………………........….... 17"
Swing in gap…………………………….............. 24.8"
Distance between centers………….............………55"
Spindle bore………………………..………….. 2-1/8"
Spindle nose (camlock)………………..…….… D1-6"
Spindle speed range (12)…………..…. 31 - 1,520 rpm
Longitudinal feed range (32)….…. 0.0014 - 0.0212
ipr
Cross feed range (32)……….......... 0.0010 -
0.0144 ipr
Inch threads (32)………………………....... 4 to 56 tpi
Metric threads (21)………………….....… 0.5 to 7 mm
Tailstock spindle taper……………….…………. #4MT
Tailstock spindle travel………………………..….… 6"
Spindle motor……………………........ 7.5 Hp/220/440
Dimensions (approx.)………...... 103" X 40"D X
62"H
Weight (approx.)………………………............ 4,020 lb.
Equipped With
Inch/metric threading
10" 3-Jaw chuck
5C Lever collet closer
AcuRite 2-axis DRO
Steady rest
Aloris quick change toolpost with miscellaneous
holders
Foot brake
Threading dial
Tail stock
Coolant system
Chuck guard
Rear splash guard
Work light
