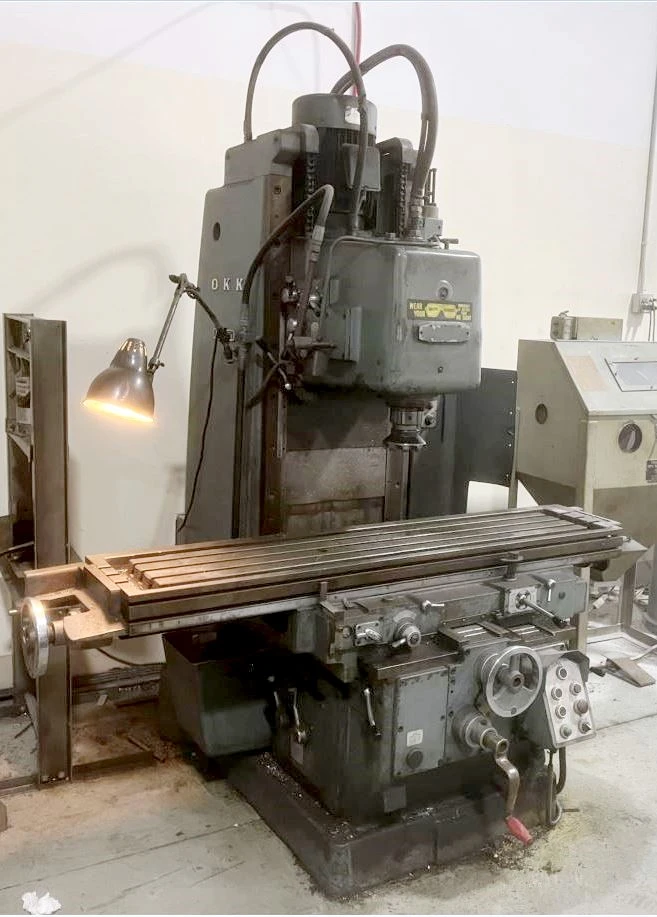

15" x 65" Table,
13.75" Cross Travel, 17.75" Head Travel, #50
45 – 1,600 RPM Spindle Speeds, 10Hp Motor, Lubrication
Backlash Eliminator, New 1980's, VIDEO
AVAILABLE.
Table working
surface......................................... 65" x
15"
Max. table longitudinal
travel................................. 36.25"
Max. saddle cross
travel.......................................... 13.75"
Table long. & cross feeds
(12)................... 0.4375 - 69 ipm
Head vertical feeds
(12).......................... 0.175 – 27.6 ipm
Power long. & cross rapid traverse
(vert)..... 125 (50) ipm
Max. vertical travel of
head...................................... 17.75"
Spindle nose to
table.......................................... 4" - 21.75"
Spindle center to
column......................................... 16.125"
Spindle
taper..........................................................
#50 N.S.
Spindle speeds
(12)....................................... 45 - 1600 rpm
Spindle
motor........................................ 10 Hp/3/60/230/460
Dimension
(approx.)....................... 122"W x 72"D x
96"H
Weight
(approx.).....................................................
9,250 lb.
Lubrication system
Coolant system
Backlash eliminator
