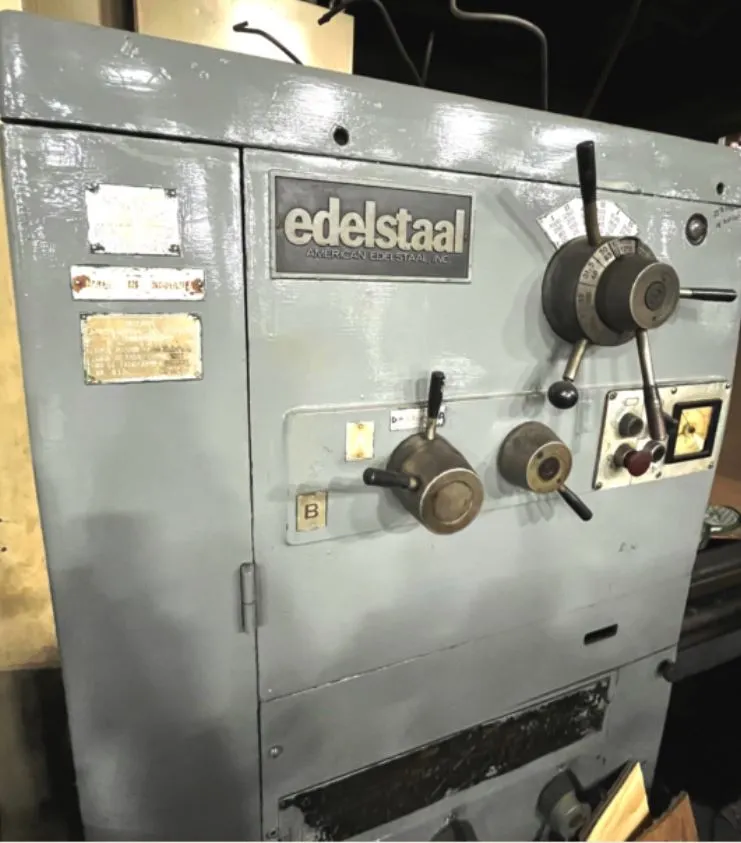

Edelstaal 52" x 200" Heavy Duty Engine Lathe, New 1978

With Raised Head Stock, 36" Swing Over Cross Slide,
4-1/8" H.I.S., 8 1250 RPM, IN/MET Threading,
30 Hp, D-1-11" Camlock Spindle

4-Way Tool Post, 4-Way Rapid Traverse, Taper
Tail Stock, New 1978.

Travels (X/Y/Z)…………………….….. 120"/60"/3.9"

Swing over bed…………………………….....…… 52"
Swing over cross slide……………………....……. 36"
Swing in gap……………………....................….. 61.5"
Distance between centers…………………..….. 200"
Spindle nose (Camlock)…………………....... D-1-11
Hole in spindle……………………………...… 4-1/8"
Spindle speeds (23)…………………... 8 – 1,250 rpm
Feeds (44 each)

Longitudinal……………………...... 0.0024 - 0.56 ipr

Cross……………………………......0.0012 – 0.28 ipr
Rapid traverse (long./cross)……………..... 150/75 ipm
Threading;
  English
(40)………………………….…… 1/4 - 80 tpi
  Metric
(43)……………………………… 1 – 176 mm
  Diametral
(40)………………………...…. 2-1/2 – 64
  Module
(39)………………………..…….… 0.5 – 80
Cross slide travel……………………..…… 19-11/16"
Top slide travel………………………..……. 17-5/16"
Tail stock spindle travel………………..….… 12-3/4"
Tail stock spindle taper………………....…… #6 MT
Main motor…………………….... 30Hp/3/60/220/440
Weight (approx.)………………..………..... 16,750 lb.

Raised head stock
In/Met threading
Hardened & ground bed ways
19.5" 3-Jaw chuck
4-Way tool post
Tail stock
Taper attachment
4-Way rapid traverse
