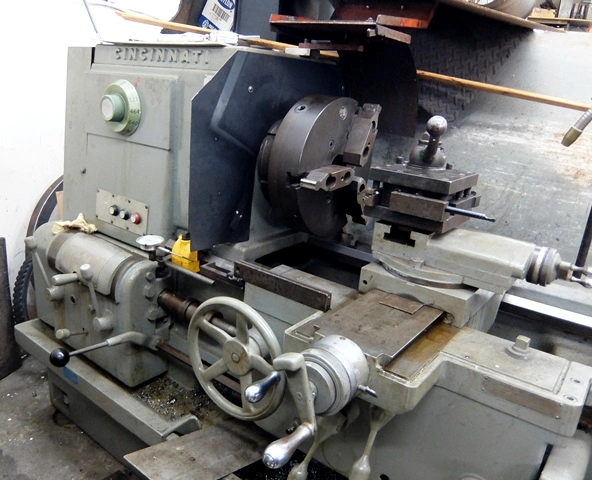

22" x 48" Cincinnati Hydrashift Lathe, New 1966

15" 3-Jaw Chuck, 16 -
1-1/2
2-5/16" Spindle Hole, 10 HP, 4-Way Tool Post, Tail Stock,
Hardened Ways, New 1966.

Swing
over bed................................................................
23-1/2"
Swing
over cross slide.....................................................
13-1/2"
Distance
between centers....................................................... 48"
Spindle
nose (long taper key drive)…………………………. L2
Hole
through spindle…………………………………… 2-5/16"
Spindle
speeds (12)……………………………….. 16 - 640 rpm
Longitudinal
feeds (54)…………………….. 0.0019 - 0.1215 ipr
Cross
feeds…………………………………. 0.0009 - 0.0578 ipr
Threads
(54)………………………………………. 1-1/2 - 92 tpi
Cross
slide travel……………………………………….. 16-3/4"
Compound
slide travel…………………………………... 4-1/2"
Tail
stock quill travel………………………………………… 6"
Tailstock
quill taper……………………………………... #5 MT
Main
Motor…………………………..…… 10 Hp/3/60/230/460
Dimensions
(approx.)…………………….. 80"L x 36"D x 54"H
Weight
(approx.)………………………………………. 6,750 lb.

Hardened
ways
15"
3-Jaw chuck
4-Way
tool post
Tail
stock
Threading
dial
Micrometer
bed stop
