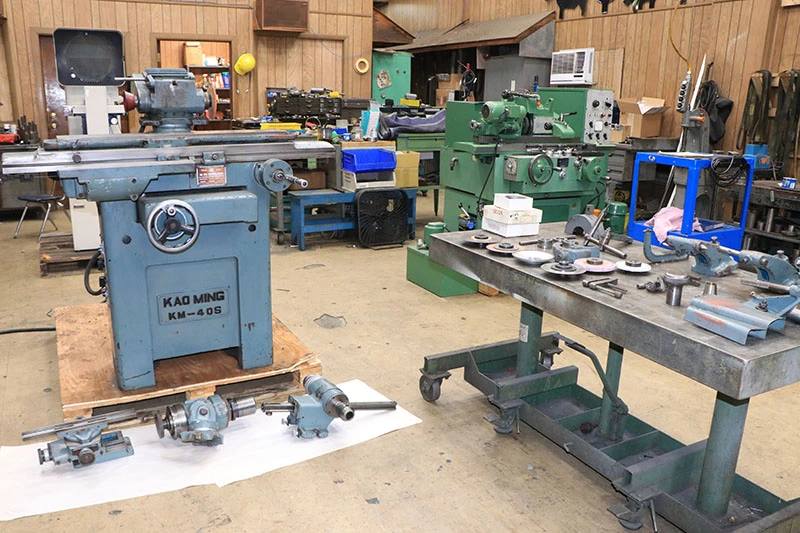

Kao Ming 40S Tool and Cutter Grinder, New 1980

10" Swing, 27.5" C-C, 1Hp
2,600-3,700-6,200 Wheel Speeds, Kao Ming & K.O. Lee
K.O. Lee Draw Bar, Helical Grinding
New 1980, VIDEO
AVAILABLE.

Swing
over table………………………………………….…… 10"
Distance
between centers………………………………..…... 27.5"
Distance
between tailstock and workhead…………………….. 22"
Workhead
tapers……………………………………..… #50/#5MT
Table;
  Working
surface……………………………..… 5-5/16" x
37-1/2"
  Longitudinal
movement……………………………………… 16"
  Swivelling
angle…………………………………………….. 180
  Table graduations for
taper grinding………………………..
10
  Graduations for table
swivel………………………………..
60
Wheel
head;
  Cross travel of wheel
head………………………………..…..
10"
  Vertical travel of wheel
head………………………………….
10"
  Swivels……………………………………………………….
360
  Tilts……………………………………………………..
30(15)
  Distance between spindle
center and
table………………. 2" – 12"
  Grinding wheel
speeds…………………. 2,600, 3,700,
6,200 rpm
  Grinding wheel
motor……………………………………….. 1Hp
Dimensions
(approx.)………………………. 53"W x 51"D x 58"H
Weight
(approx.)…………………………………………. 2,550 lb.

TILTING
WHEELHEAD (15 DEG. ABOVE & BELOW)
DUPLICATE
CONTROLS @ THE FRONT & REAR OF THE TABLE
BALL
BEARING ANTI-FRICTION TABLE ROLLING IN
 REPLACEABLE HARDENED STEEL
V-WAYS
360
DEG. ECCENTRIC WHEELHEAD & SWIVEL TABLE WHICH
 CAN INCREASE SPECIFIED CROSS
RANGE BY 70%
CAST
IRON CONSTRUCTION
ONE-SHOT
LUBRICATION SYSTEM
2-SPEED
SPINDLE, INSTANTLY REVERSIBLE
1
HP 3/60/230-460 VOLT SPINDLE MOTOR
WORKHEAD,
SWIVELS IN TWO PLANES
NO.
50 TAPER & No. 5 MT TAPERS
HELICAL
GRINDING ATTACHMENT
SET
OF MATCHING TAILSTOCKS
LARGE
SINGLE INDEPENDENT TAILSTOCK
TABLE
MOUNTED WHEEL DRESSER
CAMS
FOR HELICAL GRINDING ATTACHMENT
WHEEL
GUARDS
WHEEL
ARBORS, HUBS & WHEELS
OTHER
ACCESSORIES AS SHOWN IN PHOTOS
